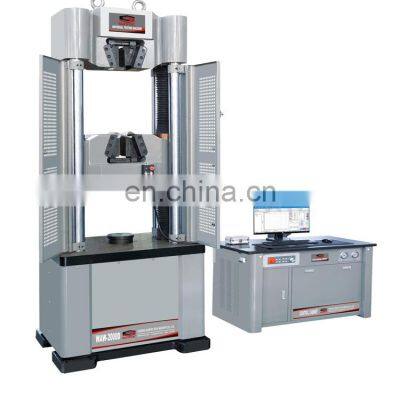

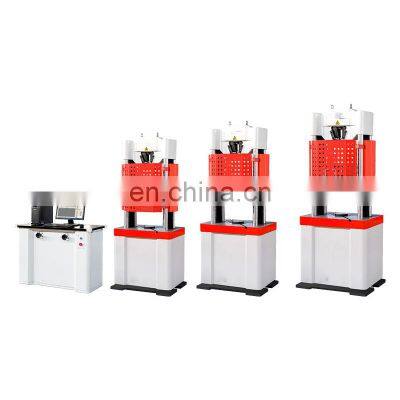

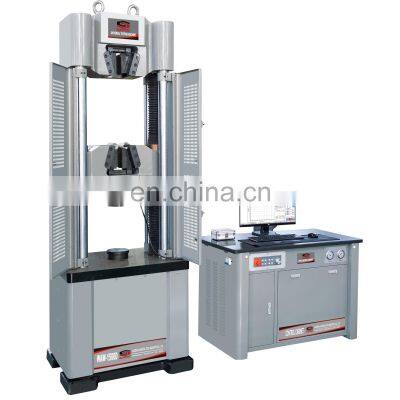

WAW-E Series Hydraulic Universal Testing Machine
WAW-E Series Hydraulic Universal Testing Machine
WAW-E series microcomputer controlled electro-hydraulic universal testing machine adopts imported high accuracy electro-hydraulic servo valve and precision hydraulic cylinder; the measurement and control system adopts
the microcomputer controlled electro-hydraulic servo measurement and control system which is independently researched and developed by the company; the measurement and control system can automatically control
the testing process and automatically process the testing data. The microcomputer screen can display the test force, deformation and various test curves, capable of printing various test reports and users can also edit the format of the test reports for themselves.
Working cylinder-piston adopts gap seal, with small frictional force;
The oil pump has low noise, stable performance and long service life;
Independent hydraulic chuck oil source and the chucking force can be adjusted;
Proportional servo valve with quick action response and the demand for the oil quality is low;
The performance of the sensor is stable with high accuracy;
The resolving capability is high without grading in the whole measurement range;
Having the functions of automatic zero setting, automatic calibration, automatic diagnosis and automatic storage, etc.
The automatic control of constant test force, constant deformation, constant displacement, even rate of stressing and even rate of
strain is realized and impact free switch-over is realized in the test;
Having protection functions for over current, over speed, over-test force and over stroke, etc.
WAW-E Series SPECIFICATIONS |
||||||
Model |
WAW-1000E |
||
Load Capacity |
1000kN |
||
Test Grade |
0.5 |
||
Testing Force Range |
1%-100%FS |
||
Testing Force Resolution |
1/300000 |
||
Testing Force Accuracy |
≤±0.5% |
||
Displacement Resolution |
0.01mm |
||
Displacement Accuracy |
≤±0.5% |
||
Deformation Accuracy |
±0.5% |
||
Piston Stroke |
250mm |
||
Max. Piston Moving Speed |
0-90mm/min, stepless speed adjustment |
||
Crosshead Adjustment Speed |
200mm/min |
||
Overload Protection |
2%-5% |
||
Wedge Clamping System |
2%-5% |
||
Jaws
|
Round Samples Diameter (mm) |
φ13-φ26, φ26-φ40 (Optional: φ6-φ13, φ40-φ50) |
|
Flat Samples Thickness (mm) |
0-15mm (15-30mm, optional) |
||
Flat Width (mm) |
125 |
||
Compression Platen |
φ160mm |
||
Distance Of Bending Support |
450mm |
||
Width Of Bending Rollers |
120mm |
||
Clipping Sample Holding |
φ10mm (optional) |
||
Max. Tensile Testing Space |
650mm |
||
Max. Compression Testing Space |
500mm |
||
Space Between Columns |
525 |
||
Pump Motor Power |
2.2KW |
||
Beam Motor Power |
0.55KW |
||
Power Supply |
3-Phase, AC380V, 50Hz |
||
Overall Dimensions (L x W x H) |
905×680×2115mm |
||
Machine Weight |
1400 kg |
||
Main Features
Guizhou Sunpoc Tech Industry Co., LTD is committed to supply the customers with the highest quality products and solutions in materials testing and science research. Our quality products are used in a wide range of industries like civil and military. Being a professional manufacturer and exporter in the field of quality test instruments, Sunpoc dedicated to materials and specimen testing industries for 15 years and gained high reputation from our customers all over the world. Sunpoc continuously reviews and updates our product and service to macth the need of our clients with the advanced technologies.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Engineers available to service machinery overseas.
*12 Months Products hard ware warranty.
