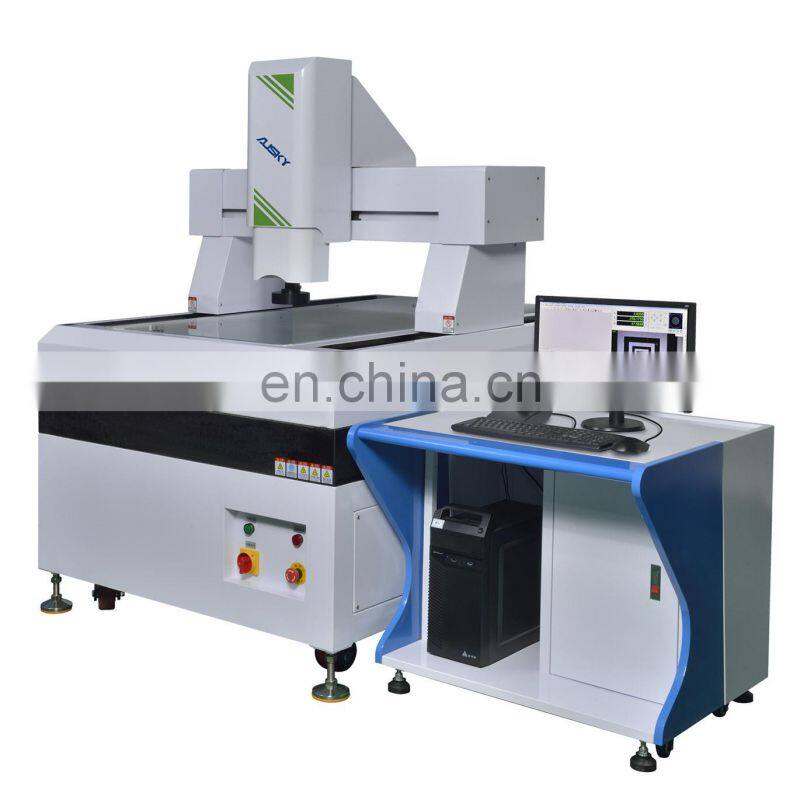

Help CenterHigh Accuracy Quality Test Instrument Contour Measuring Machine
Related Products
-
New Technology Hot Selling High Precision Large Range Image Measuring SystemNegotiableMOQ: 1 -
High Accuracy Large Range Gantry Optical Automatic Optical Vision Inspection System For Dimension Quality ControlNegotiableMOQ: 1
-
Large Range High Accuracy Gantry Rapid Vision Measuring Machine For Precision MoldsNegotiableMOQ: 1
-
High Tech Gantry Large Travel 2D 3D Vision Measuring System With High PerformanceNegotiableMOQ: 1
-
Advanced High Accuracy Gantry Large Travel Fully Non Contact CNC Video Measuring SystemNegotiableMOQ: 1
| Paramter and Model | AMH650 | AMH860 | AMH1210 | AMH1512 | AMH2115 | |
| Workbench | Glass table size(mm) | 808*568 | 1008*668 | 1300*1048 | 1600*1248 | 2200*1548 |
| Bearing(kg) | 30 | 30 | 30 | 30 | 30 | |
| Travel | X axis(mm) | 500 | 600 | 1000 | 1200 | 1500 |
| Y axis(mm) | 600 | 800 | 1200 | 1500 | 2100 | |
| Z axis(mm) | 200 | 200 | 200 | 200 | 200 | |
| Image and measurement system | Display resolution(μm) | 1/0.5(Optional) | ||||
| Instrument precision(um) | (4+L/200)um | |||||
| Imaging system(CCD) | HD Digital Camera | |||||
| Zoom objective(X) | High Precision Zoom Objective 0.7~4.5X | |||||
| Total video magnification(x) | 30~10X | |||||
| Working distance(mm) | 96mm | |||||
| Light source | LED programmable partiton light source(Coaxial light source optional) | |||||
| Outline dimension(mm) |
1500*1140 *1780 |
1720*1240 *1780 |
2090*1630 *1800 |
2390*1830 *1850 |
3000*2130 *1850 |
|
|
Weight(kg) |
1600kg | 2000kg | 3500kg | 5000kg | 7000kg | |
| Power supply | 220V AC 50Hz | |||||
Located at Shenzhen city, Baoan District Guangdong Province.High-tech enterprise integrating R & D and production.
Mainly engaged in video measuring system,have been professional in the industry of video measuring system for 15 years.
Our main products are :Manual Image Measuring Instrument, CNC Video Measuring System,Gantry Large Stroke Vision Measurement Machine, One Key Rapid Video Measuring Machine, CMM Coordinate Measuring Machine, Profile Projector ,3D scanner and so on .
Products widely applied in industrial applications such as machines,
electronics, molds, plastics, metals, die-cutting, electrical appliances, mobile,
phone, home appliance, computer, LCD TV, printed circuit board (PCB), automotive, aviation etc.
AUSKY always carries on the scientific manage system ,strong adhere to the policy :Quality Firstly,Customer Firstly and Credit Firstly .
We also have a perfect after sale service system ,These can ensure that we provide customers with the best products and services.
1. How to Choose the Appropriate Specification
After get your demand,our professional team will work out best solutions by sending catalogue specification,demonstration video or other methods according to customers' need.
2. What is the delivery term of your products?
Normally we have standard products in stock. For bigger sizes (larger than 1000mm),
we can discuss and determine on the delivery time, generally,7-10 working days after receipt of the
payment. in urgent , we will try to make special arrangement.
Various shipping modes choices,shipping from Shenzhen port.
3. Do you accept customized service?
Yes OEM is welcome .
4. What is your warranty period?
12 Months warranty,after the warranty,the professional after-sales service team will provide
comprehensive technical support to help customers solve problems encountered when using our products and promptly handle customer problems and complaints.
5.Have you ever had clients in our country before?
Our equipment has been widely supplied to Malaysia,India,Japan,
Pakistan, Philippines, Singapore,Thailand and Vietnam, Korea, UK, Italy, Germany,USA, Poland, Russia,
Turkey,Mexico,Ecuador,Canada,Israel and so on more than 30 countries.
6.How to install and use your product .
We will provide operating instructions or video instructions, if near our agent the service is easier.
or we can send engineer to your country to finish installation and training with cost .
