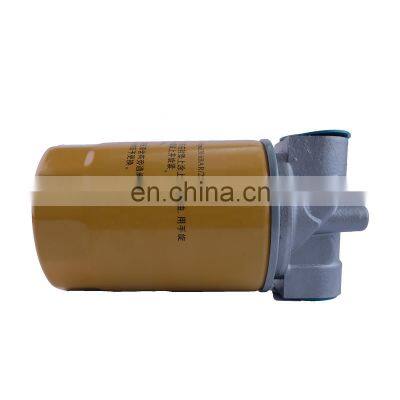

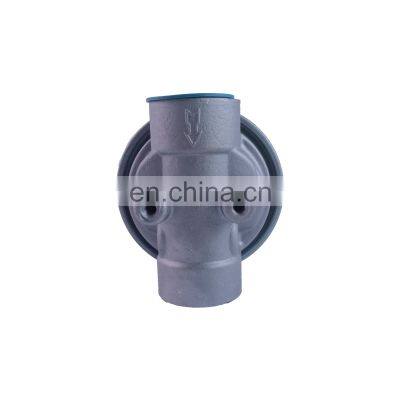

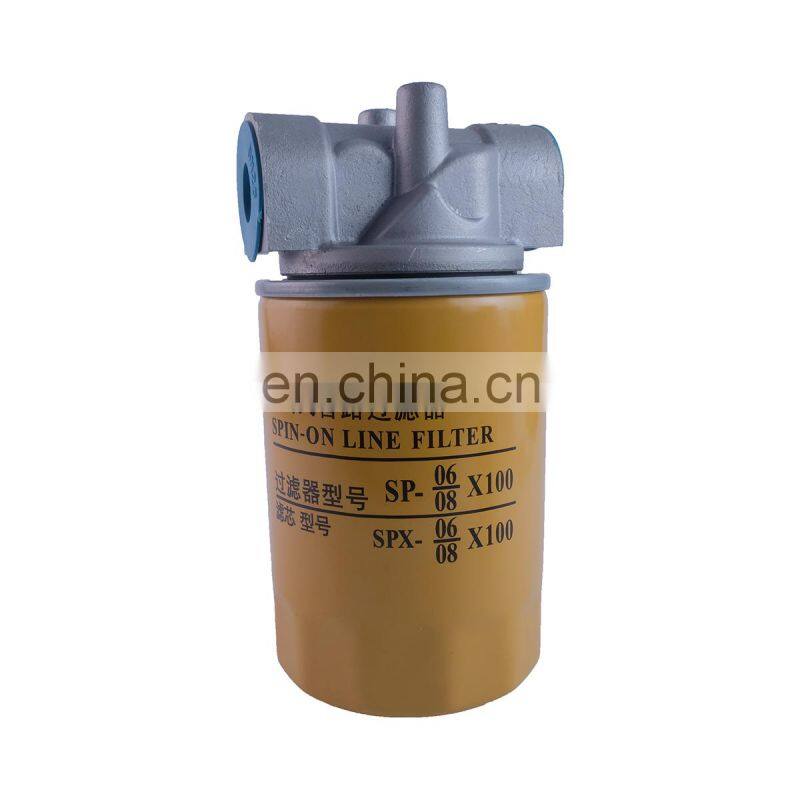

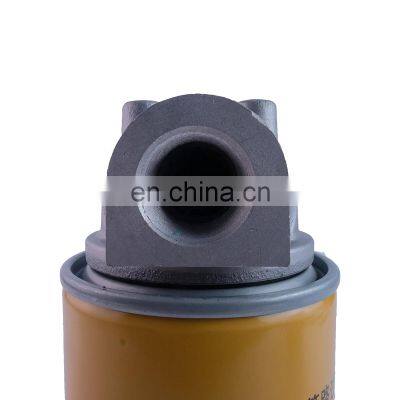

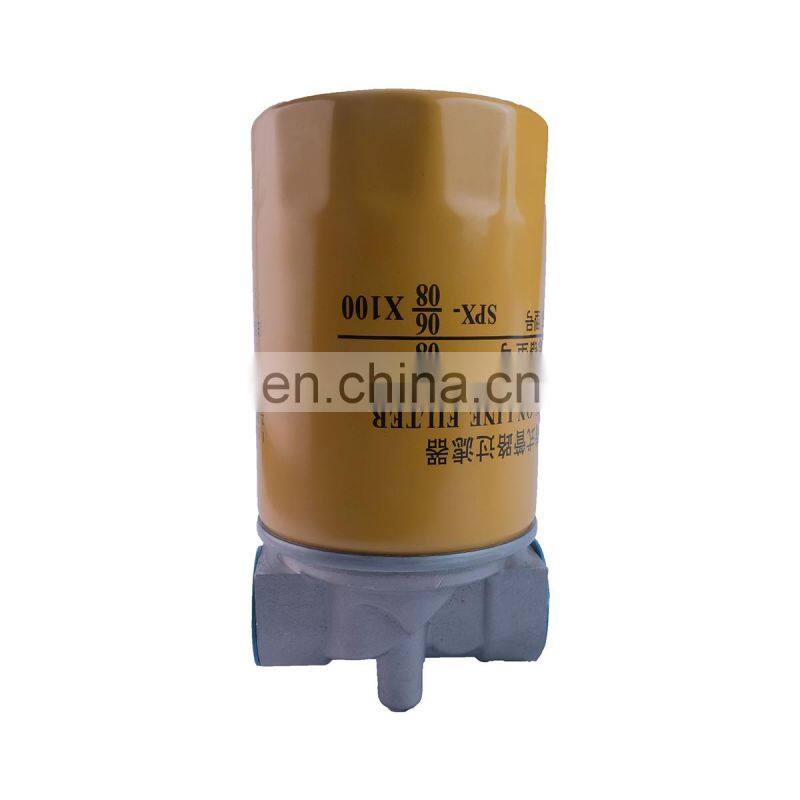

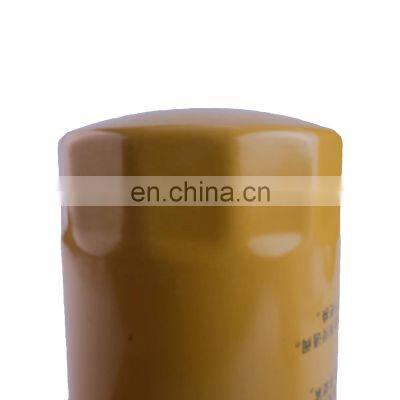

SP-06X25 Spin-on Filter Series Oil Filter Power Transmissions 10-25um Hydraulic Filter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1996
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Spin-on Filter Series Oil Filter Power Transmissions 10-25um Hydraulic FilterNegotiableMOQ: 1 -
SP-06X10 Spin-on Filter Series Oil Filter Power Transmissions 10-25um Hydraulic FilterNegotiableMOQ: 1
-
Replacement Hydraulic Filter Element Machine Oil Filter MF Series Oil StrainerNegotiableMOQ: 1
-
Replacement Hydraulic Filter Element Machine Oil Filter FAX Series Oil StrainerNegotiableMOQ: 1
-
Replacement Hydraulic Filter Element High Pressure Machine Oil Filter HX Series Oil StrainerNegotiableMOQ: 1
Product introduction
Spin-on Filter Series
GY-Filters hydraulic cartridges are built to provide superior protection from particles and contamination that can result in inefficiency, downtime, and excessive repair costs. Proper fluid cleanliness levels are critical for components in the hydraulic fluid stream. Types of filtration media used depend on the application. GY Filters use microglass media, stainless steel mesh, or paper media. Micron ratings range from 250 microns down to 1 micron. These hydraulic cartridges are essential to extending component lifecycles and reducing operating expenses.
Spin-on Filter Series

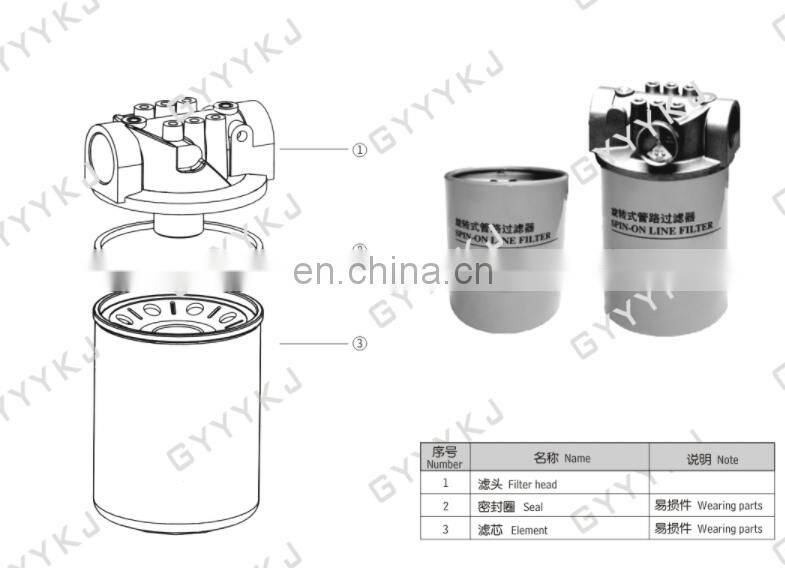

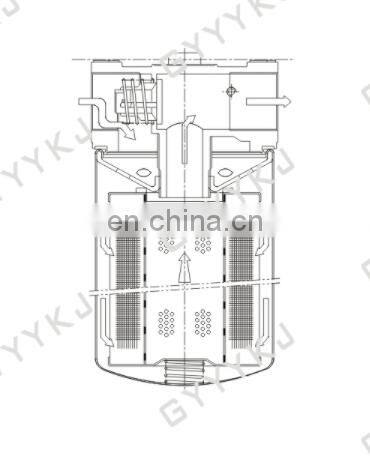

Spin-on filters consist of a head mounted directly in-line with the piping and a cartridge containing a filter element. The
cartridge seals to the head to prevent leakage. These filters are an effective and economical choice where the line pressure is
low, and there are no strong pressure surges. Filters are easy to replace without special equipment or tooling.
cartridge seals to the head to prevent leakage. These filters are an effective and economical choice where the line pressure is
low, and there are no strong pressure surges. Filters are easy to replace without special equipment or tooling.
Applications
• Cooling circuits
• Lube oil systems
• Power transmissions
• Compressors
• Hydrostatic charge pumps
• Fuel transfer
GY’s spin-on filters are designed to provide one of the highest cleanliness levels for hydraulic systems, featuring cartridges that are engineered to fit into many leading filter systems on the market.
Compatible with a variety of mediums such as oils, fuels, emulsions, glycol water and synthetic fluids

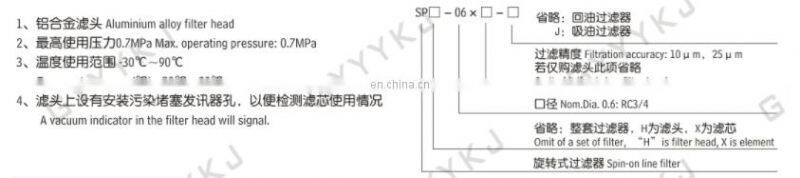

operating pressure;0.7MPA
Wide range of operating temperatures from-22°F to 194°F (-30 °C up to +90 °C)
Buna N gaskets
Connection sizes: ½”, 3/4”, 1”, 1 1/4” in BSPP or NPT
Other configurations are available upon request

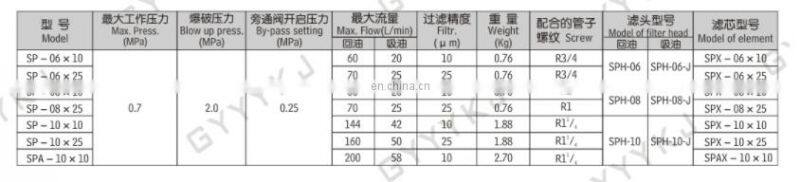

Specification
For the convenience of your selection and purchase, the above is the introduction of the product and size.

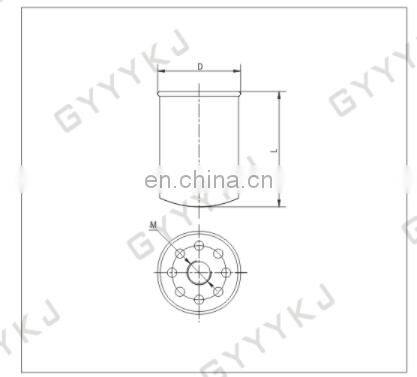

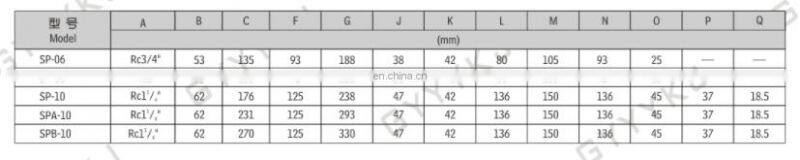

TECHNICAL DATA
MODEL |
L |
D |
M |
SPX-06 X * |
135 |
Φ93 |
1''-12UNF |
SPX-08 X * |
135 |
Φ93 |
1''-12UNF |
SPX-10 X * |
178 |
Φ125 |
1 1/2''-16UNF |
SPAX-10X10 |
230 |
Φ125 |
G 1 1/4 |
SPAX-10X10 |
270 |
Φ125 |
1 1/2''-16UNF |
FAQ
Q1：payment term
By T/T, 30% as deposit, the balance should be paid before shipment.
By T/T, 30% as deposit, the balance should be paid before shipment.
Q2;Production time
10days as 1st order, repeat order 7days
