Home > Industrial Equipment & Components > Filtration Equipment & Parts > Industrial Water Filter > Machine Oil Filter for Hydraulic WU-40 (80 100 180um)

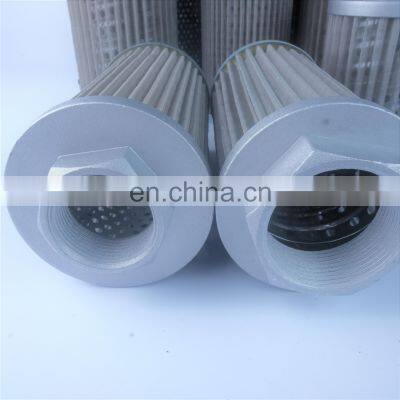

Machine Oil Filter for Hydraulic WU-40 (80 100 180um)
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1996
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Replacement Hydraulic Filter Element Machine Oil Filte WU-100 (80 100 180um)NegotiableMOQ: 1 -
Replacement Hydraulic Filter Element Machine Oil Filte WU-160 (80 100 180um)NegotiableMOQ: 1
-
Machine Oil Filter for Hydraulic WU-250 (80 100 180um)NegotiableMOQ: 1
-
Supply High Efficiency Oil Filter Hydraulic Filter ElementWU-225 (80 100 180um)NegotiableMOQ: 1
-
Factory Direct Sales Spot Supply Hydraulic Oil FilterNegotiableMOQ: 1
Product introduction

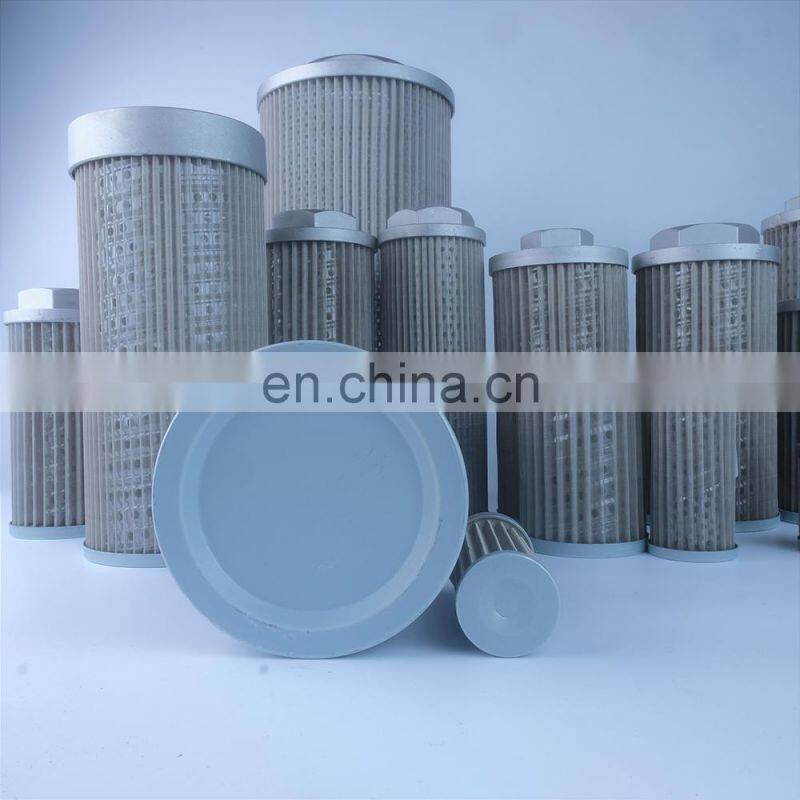

WU series
GY-Filters hydraulic cartridges are built to provide superior protection from particles and contamination that can result in inefficiency, downtime, and excessive repair costs. Proper fluid cleanliness levels are critical for components in the hydraulic fluid stream. Types of filtration media used depend on the application. GY Filters use microglass media, stainless steel mesh, or paper media. Micron ratings range from 250 microns down to 1 micron. These hydraulic cartridges are essential to extending component lifecycles and reducing operating expenses.
wire netting
Harsh operating environments require robust materials of construction in order to operate as needed. Whether your application involves extreme environments such as high operating and differential pressures, extreme temperatures, or fluids with compatibility needs, materials of construction is vital to ensure your system is protected.
wire netting

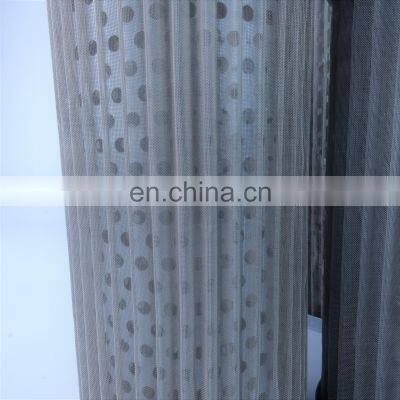

Woven wire mesh is a surface filtration media that removes particulate by stopping it at the surface of the filter media. Unlike its depth filtration based counterparts, woven wire mesh has a known appature size based on the weave selected giving the mesh an "absolute" micron rating. Wire mesh is most commonly manufactured out of 304 or 316 CRES, however, other materials may be used based on application.
A wide range of filter media is available including:
Woven wire mesh can be formed to many sizes and shapes to allow for different flow dynamics. Woven wire mesh elements operate using surface filtration which captures 100% of particles at a given micron rating. Surface based filtration allows for easy cleaning by back flushing the elements. Since particulate is not embedded in the element, regular cleaning will extend the service life of the elements.
Specification
For the convenience of your selection and purchase, the above is the introduction of the product and size.

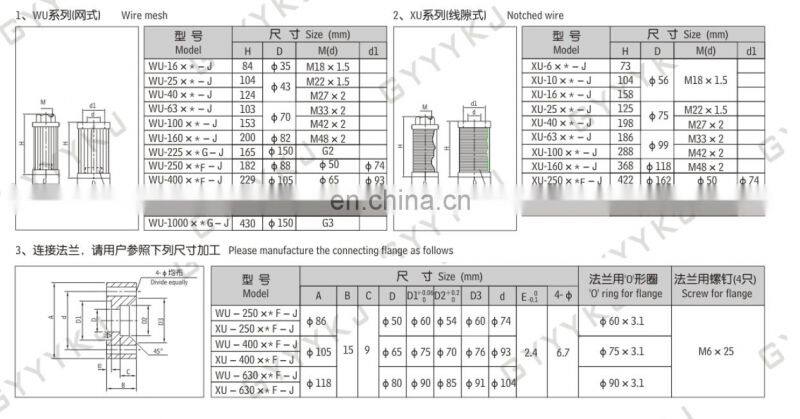

TECHNICAL DATA
MODEL |
PATH(MM) |
NOMINAL FLOW-RATE |
ORIGINAL PRESSURE |
FILTER REMOVAL RATING(UM) |
BY-PASS VALVE SETTING |
CONNECTING |
WU-16X*-J |
12 |
16 |
80
100
180
|
/ |
TUBE TYPE
|
|
WU-25X*-J |
15 |
25 |
0.02
|
|||
WU-40X*-J |
20 |
40 |
||||
WU-63X*-J |
25 |
63 |
||||
WU-100X*-J |
32 |
100 |
||||
WU-160X*-J |
40 |
160 |
||||
WU-225X*G-J |
50 |
225 |
||||
WU-250X*F-J |
50 |
250 |
FACE PLATE
COUPING
|
|||
WU-400X*F-J |
65 |
400 |
||||
WU-630X*F-J |
85 |
630 |
||||
WU-800X*G-J |
63 |
800 |
TUBE TYPE |
|||
WU-1000X*G-J |
76 |
1000 |
FAQ
Q1：Tpayment term
By T/T, 30% as deposit, the balance should be paid before shipment.
By T/T, 30% as deposit, the balance should be paid before shipment.
Q2;Production time
10days as 1st order, repeat order 7days
