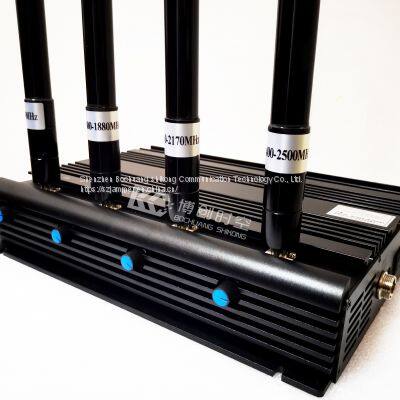

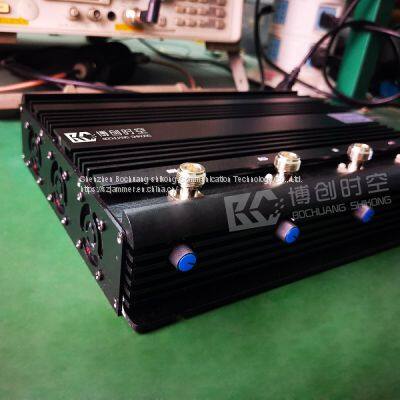

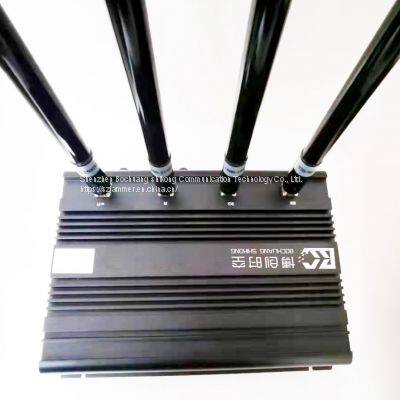

Name: professional GPS signal jammer, output power 100W GPSL1-L5 Glonass signal jammer up to 500m
Model: BCSK-D-G-4
Features:
One of the middle power
Professional indoor lojack GPS signal jammer, output power 100W GPSL1-L5 GLONASS signal jammer up to 500m jammer which are currently presented on the market with 6 bands and 100W of output power this blocker is able to disable Lojack XM radio signal, GPS/Glonass L1, L2, L3, L4, L5 signals in the radius up to 500 meters
Advantages:
Each unit can jam up to 6 frequency bands, each frequency band is separate and with adjustable power from max to off (0)
100% safe VSWR over protection for each modular
Good cooling system with heat sink and 3 big on top fans + 2 x small inside, low noise
Packing contents:
1 piece desktop jammer
1 piece 110 or 220V AC, 12V or 27V DC 20A power supplier
6 pieces antennas omni 500mm long
Additional options:
- Directional external patch panel antennas
- Omni car magnetic antenna bases
- External battery that can work 1.5 hour (24V/20AH LiFePo4 ) + charger
- 12V DC to 220V AC inverter 2000W to use normal car battery DC 12/80-100AH
OEM customized service:
All 8 frequency modules we can mix very flexible, options: mobile phone 920-965MHz, 4G, UHF VHF, 4G 700-800MHz (USA), SAT satellite phones 1520-1670MHz, any combinations and customizations are possible, just send us your inquiry and we will give you our recommendation
Applications:
Device can be used to block the cell phone signal in the churches, museums, movie theatres or during the important conference in a meeting room to avoid the leakage of secure information, in classrooms during the exams, courts, hospitals, banks, recording studios or other crowded places where the usage of mobile phone is prohibited
| Product Name: Wireless Signal Jammer | |||
| Brand: Bochuang spacetime | |||
| model:BCSK-D-G-4 | |||
| Key technical specifications: | |||
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | GPSL1 | 1570-1610MHz | 41dbm/15W |
| 2 | GPSL2 | 1200-1280MHz | 41dbm/15W |
| 3 | GPSL3 | 1370-1380MHz | 41dbm/15W |
| 4 | GPSL4 | 1380-1390MHz | 41dbm/15W |
| 5 | GPSL5 | 1170-1200MHz | 41dbm/15W |
| 6 | LOJACK& XM radio | 167-175MHz | 43dbm/20W |
| The below frequencies you can instead of above one to combined 6 bands | |||
|
Option |
WIFI5.2G | 5100-5500MHz | 40dbm/10W |
| Wi-Fi 5.8G | 5500-5580MHz | 40dbm/10W | |
| WiFi3.6G | 3500-3600MHz | 40dbm/10W | |
| VHF1 | 130-180MHz | 43dbm/20W | |
| UHF1 | 180-235MHz | 43dbm/20W | |
| UHF2 | 235-285MHz | 43dbm/20W | |
| UHF3/RC315 | 285-350MHz | 43dbm/20W | |
| UHF4 | 350-400MHz | 43dbm/20W | |
| UHF5/RC433/CDMA450 | 400-500MHz | 43dbm/20W | |
| CDMA or GSM | 850-894 or 925-960MHz | 44dbm/25W | |
| DCS or PCS | 1805-1880 or 1920-1990MHz | 41dbm/15W | |
| 3G | 2110-2170MHz | 41dbm/15W | |
| 4G LTE 2600 | 2500-2690 or 2300-2400 MHz | 40dbm/10W | |
| 4G LTE 700 | 700-803 or 790-862MHz | 44dbm/25W | |
| Wi-Fi 2.4G+4G2300 | 2345-2500MHz | 40dbm/10W | |
| Power supply: AC adapter 50 to 60Hz, (110 or 240V AC-27V DC) | |||
| Dimensions: (length, width, height ) 520*230*200mm (not include antenna) | |||
| Packing size: 450 x 235 x 95mm Net weight: 7kg Gross weight: 7kg + 6kg antennas = 8kg Working temperature: -30 to 60℃ | |||
| Total power: 100W Shielding radius: (20-500) meters At -75dBm Still depends on the strength signal in given area Shielding radius of VHF/UHF signal should be lesser than cell phone signal | |||
| Warranty: one year from delivery date | |||
