SD1 Smart Auto Chemistry Analyzer Real Time Blood Testing Biochemistry Analyzer

Chengdu Seamaty Technology Co., Ltd.
SD1 Smart Auto Chemistry Analyzer Real Time Blood Testing Biochemistry Analyzer thumbnail-1
SD1 Smart Auto Chemistry Analyzer Real Time Blood Testing Biochemistry Analyzer thumbnail-2
SD1 Smart Auto Chemistry Analyzer Real Time Blood Testing Biochemistry Analyzer thumbnail-3
SD1 Smart Auto Chemistry Analyzer Real Time Blood Testing Biochemistry Analyzer thumbnail-4
SD1 Smart Auto Chemistry Analyzer Real Time Blood Testing Biochemistry Analyzer photo-1
SD1 Smart Auto Chemistry Analyzer Real Time Blood Testing Biochemistry Analyzer photo-2
SD1 Smart Auto Chemistry Analyzer Real Time Blood Testing Biochemistry Analyzer photo-3
SD1 Smart Auto Chemistry Analyzer Real Time Blood Testing Biochemistry Analyzer photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2001
Annual Export Value:
US$5 Million - US$10 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Description

POCT Chemical Analyser SD1 Fully Automatic Dry Chemistry Analyzer

SD1 is a completely new and fully automated biochemical analyzer for human health diagnosis, accurate reference laboratory results. Through the latest medical and technological innovation, SD1 portable automatic biochemical analyzer can provide better diagnosis for blood analysis quickly, easily and accurately.

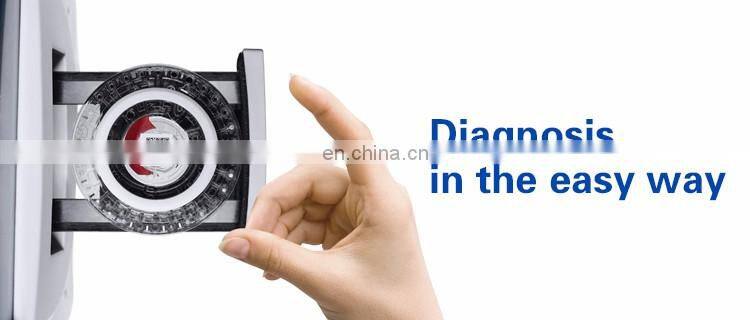

The reagent disc contains componects that integrated with the optical, electronic and mechanical functions of the analyzer, consisting of freeze drying reagent beads, diluent and QR code. It is single use with six months lifespan at the temperature of 2-8 Deg C. It offers multi-parameter testing for fast, accurate disease screening.

Please send inquiry if interested, we will offer more details for you!!!
Why Choose Us
Features:

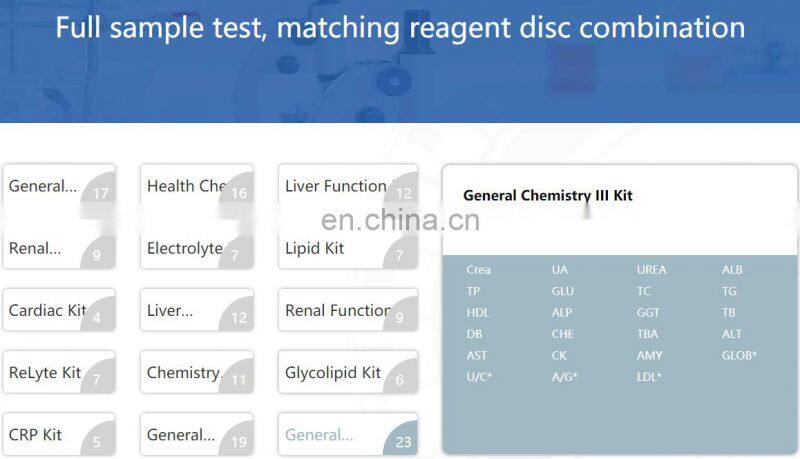

1、Multiple functions: Available for clinical biochemistry, electrolyte testing, Up to 32 kinds of test items.
2、Barcode Calibration: By scanning the barcode scaling.
3、Maintenance-free design: No maintenance, ready to use.
4、Mass data storage: Inspection data can be stored 500,000.
5、Multiple data connections: Two USB ports.
6、Rapid detection: About 11 minutes to complete all the testing.
7、Trace whole blood sample: Just 2-3 drops of whole blood (approximately 100ul) .
8、Built-in quality control system: Built-in real-time automatic quality control systems(RQC).
9、Sample exception Tip: Tip factors affecting the test results.
10、An Ethernet interface: Built-in printer.
Product Paramenters
Specification
Sample Type
Anti-coagulation whole blood, serum, plasma
Sample Volume
90-120 μl
Bar Code
QR Code
Testing Time
12 minutes/sample
Testing Principle
Absorption spectroscopy,transmission turbidimetry
Testing Method
End point, kinetic, fixed time, turbidmetry etc
Temperature
37±0.3℃
Absorbance
0-3.0Abs
Resolution
0.001 Abs
Cross Contamination
0
QC & Calibrate
IQC Intelligent QC
Working Condition
Temperature:10-30℃ Humidity: 30%-70%
Light Source
120v/20w, halogen tungsten lamp’s lifespan is over 2500 hours
Power Supply
AC220V, 50Hz
Power Rating
120VA
Optical System
After the filter spectral, 8 wavelength synchronous detection: 340,405,450,505,546,600,630,850nm
Display
Android 7.0 inch 800*480, multi-point capacitive touch screen, multilingual choice
Storage
500,000 results
Printer
Built-in thermal printer
Connectors
4 USB ports, 1 LAN port
Weight
4.6KG

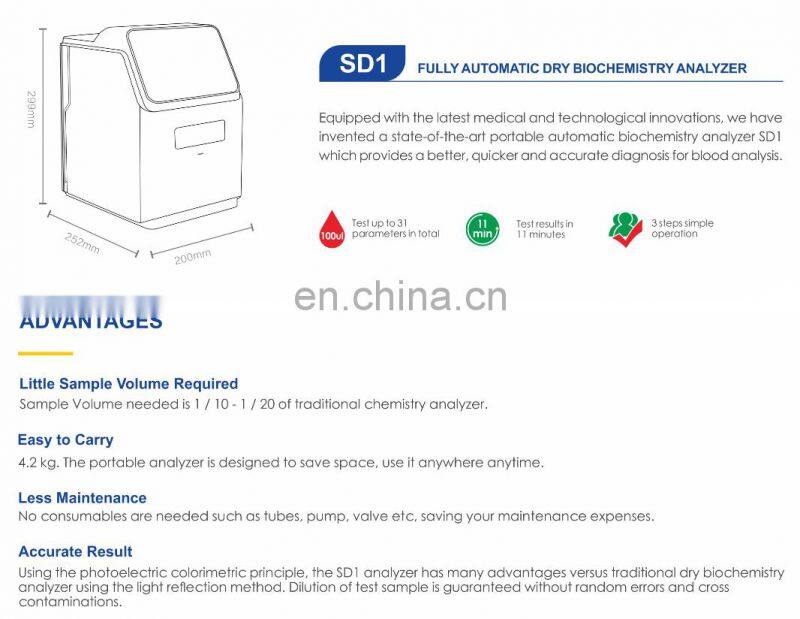

Size
200mm(L)*252mm(W)*299mm(H)
Product packaging
1. We ship the dry biochemistry analyzer by air or sea for you.
2. Our dry biochemistry analyzer with standard export packing.
3. No matter what delivery way , all depending on your actual requirements.
Company Profile

Factory

Seamaty has passed ISO13485:2016 international quality management system certification. We have built cleanrooms for production which meets GMP standard and have built first class laboratories for products testing and inspection. Our factory has introduced a variety of imported equipment with advanced automated production lines, skilled workers and professional quality control team to ensure a high productivity and premium quality in products.
Exhibition
Certifications

Seamaty has certificates including ISO13485:2016 Qaulity Management System issued by TUV; CE Declaration of Conformity listed by TUV as IVD device; Free Sale Certificate and Patents.

FAQ
Q: What is the sample volume required for a test?
90ul whole blood or serum or plasma is required to run a test.

Q: Does the analyzer require calibration?
No, the reagents are factory calibrated. The analyzer reads calibration values from the barcode on the disc itself.

Q: Can I connect the analyzer to an external computer?
Yes, through USB port to connect analyzer with the computer.

Q: How is warranty?
24 months for our analyzer. Seamaty or ur distributors will provide after-sales service.
