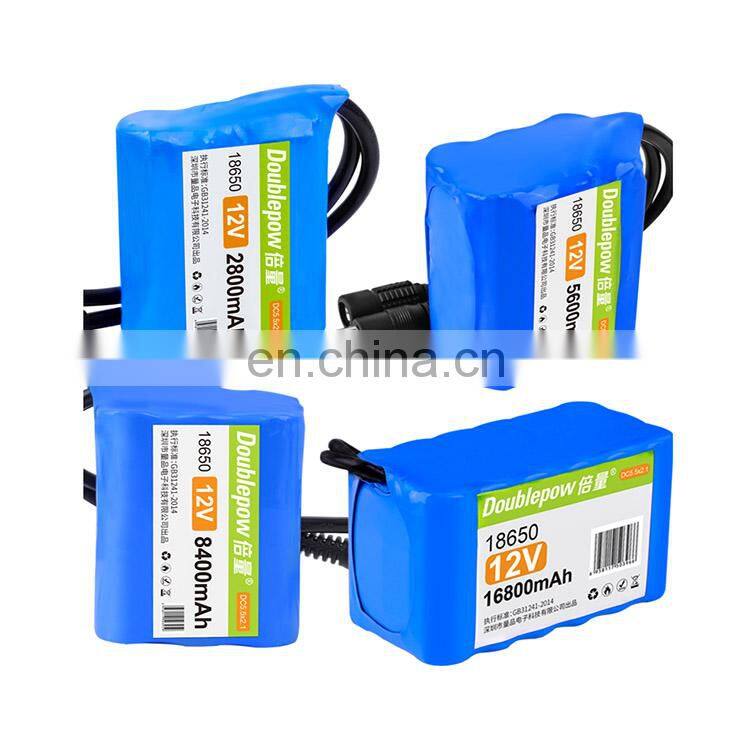

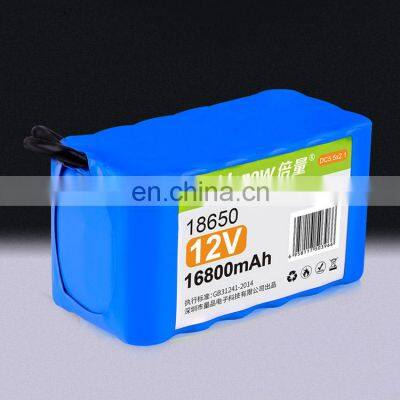

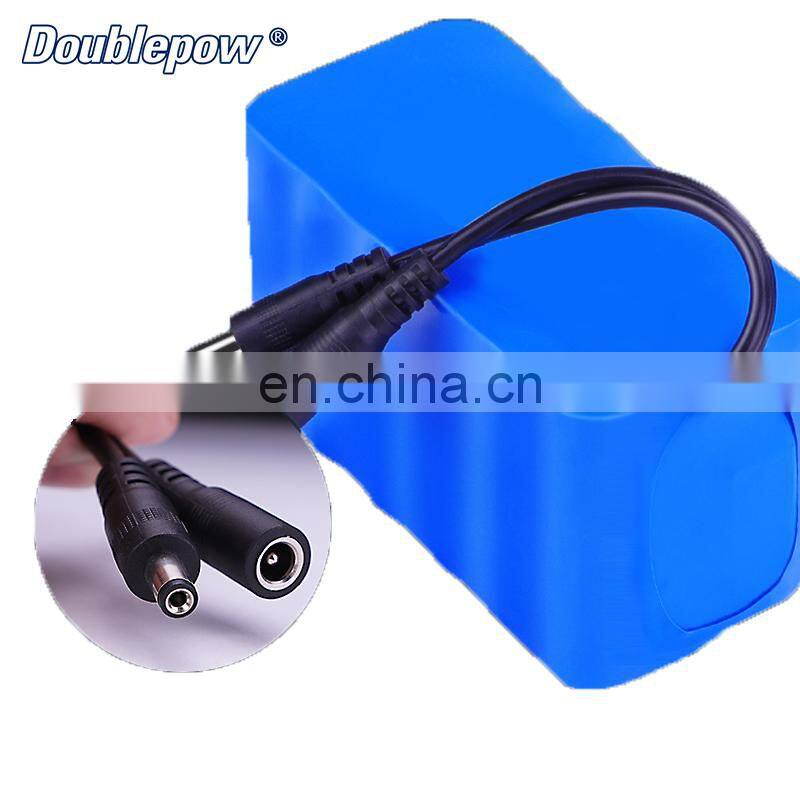

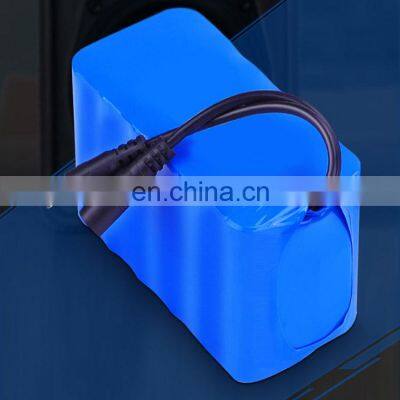

Custom Portable 12v ICR 18650 rechargeable diy lithium ion battery pack with bms
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Shenzhen Manufacturer One Year Warranty 3S2P 12v 18650 Rechargeable battery 12v 5ah lithium ion battery pack for solar light
-
Small 3S4P 18650 rechargeable 12v 10AH diy li ion lithium battery pack with DC Connector
-
3.7v 7.4v 2200mAh 10500mAh lithium ion 1S3P 1S2P 2S1P rechargeable 18650 battery pack for lights
-
Manufacturer supply DIY 3S1P 18650 Rechargeable 12v 2500mah lithium ion battery
-
Custom Rechargeable 12v li-ion lithium battery pack for Electric Bicycles/Scooters
-
Factory Customized 3S1P 12V 3AH 18650 Rechargeable lithium battery
Product Description
Product Description
Custom Portable 12v ICR 18650 rechargeable diy lithium ion battery pack with bms
Specification:

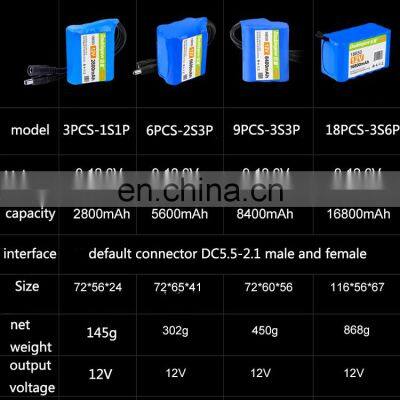

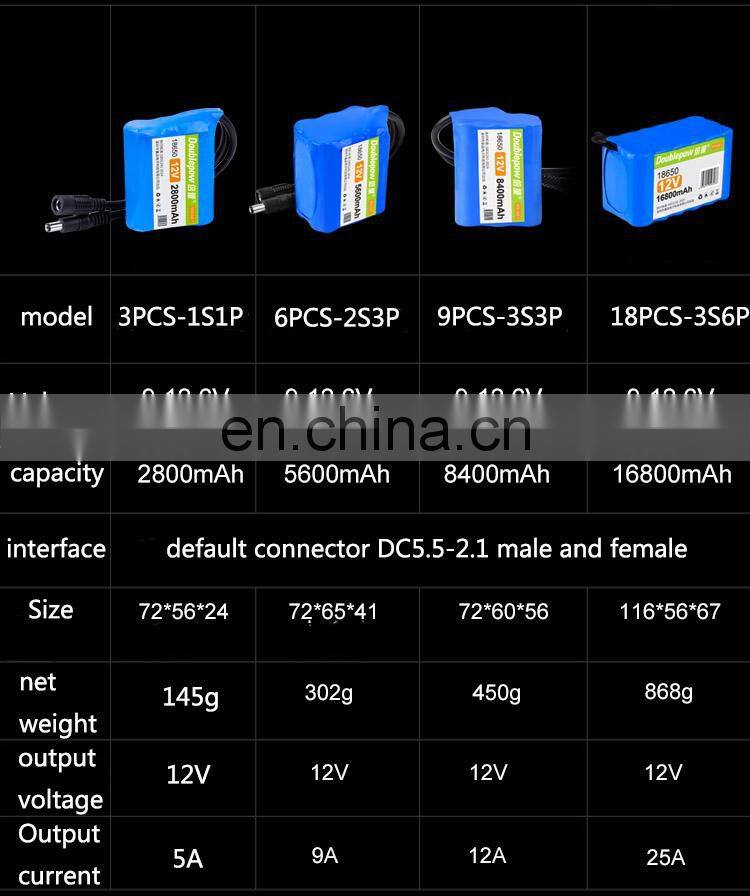

Material: Li-ion Shelf life: 1 year Nominal capacity: 2800mAh Nominal voltage: 12V Package: Product Size:66*56*20mm Net weight:210g Li ion batteries packs are assembled with 18650 cylindrical cells to meet many special large-scale electric modules, like telecom basic station, solar energy savings, etc. Doublepow battery has more than 10 professional R& D engineers who are devoted themselves to working out the best kind battery packs for your electric modules.…
Material: Li-ion Shelf life: 1 year Nominal capacity: 2800mAh Nominal voltage: 12V Package: Product Size:66*56*20mm Net weight:210g Li ion batteries packs are assembled with 18650 cylindrical cells to meet many special large-scale electric modules, like telecom basic station, solar energy savings, etc. Doublepow battery has more than 10 professional R& D engineers who are devoted themselves to working out the best kind battery packs for your electric modules.…
Li ion batteries packs are assembled with 18650 cylindrical cells to meet many special large-scale electric modules, like telecom basic station, solar energy savings, etc. Doublepow battery has more than 10 professional R& D engineers who are devoted themselves to working out the best kind battery packs for your electric modules.…

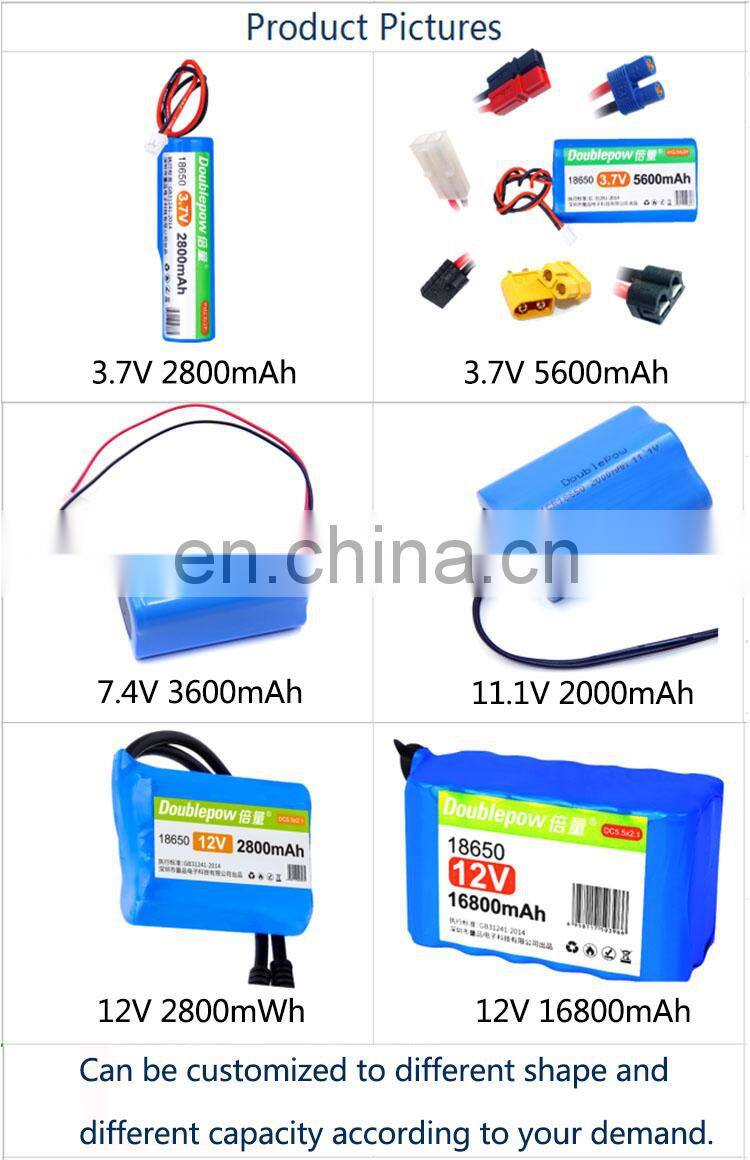

More Series Battery Packs
If you need to customized other series battery packs, please Send Us An Inquiry or Email with your mailing address, we will reply you within half an hour, thank you very much !
If you need to customized other series battery packs, please Send Us An Inquiry or Email with your mailing address, we will reply you within half an hour, thank you very much !
Battery Series | Battery Type | Battery Size | ||
1.2V NiMH / NiCD Battery | Rechargeable | AA/AAA/C/D | ||
1.5V Li-ion Battery | Rechargeable | AA/AAA/C/D | ||
3V Lithium Battery | Rechargeable | CR2/CR123A | ||
3.2V LiFePo4 Battery | Rechargeable | 10440~18650~32700 | ||
3.7V Li ion Battery | Rechargeable | 10440~18650~26650 | ||
9V Battery | Rechargeable | Prismatic | ||
Button Cell Battery： Zinc-air Alkaline-Mn Li-Mn | Non-Rechargeable | 1.4v: A10, A13, A312, A675 1.5v: AG1~AG13 3.0v: CR1220~CR2032~CR2450 | ||
1.5V Dry Battery | Non-Rechargeable | AA/AAA/C/D | ||
Custom Battery Pack | Rechargeable | Custom size | ||
Battery Accessories LED Bulb Lights Rechargeable Mini Fan Power station | Rechargeable | 80w/100w/150w Mini Fans | ||
Battery Charger for all of standard rechargeable batteries | ||||
Recommend Products
Our Company
Customer Reviews
Certifications
Packing & Delivery
Packing
We strictly obey battery transportation rules,which transportation departments of air,express or sea request. Normally,each battery will be packed by PE or other insulation bag,or tray,and ensure each one must be insulated from others,then put them in certain carton as our shipping carriers request.We also accept special inner packaging for each battery as you request.
FAQ
All About 18650 Li-ion Battery Pack
A battery pack is a set of any number of identical batteries or individual battery cells. They may be configured in a series,parallel or a mixture of both to deliver the desired voltage, capacity, or power density. 18650 Li-ion cells are a great way to power Projects. Which provides a nominal voltage of 3.7V which is not sufficient for most of the application for let's say you want to power a BLDC motor with an ESC which requires 9V to start. So we need more voltage which can be achieved by connecting them in series. We will show you how you can make a 18650 Li-ion Battery Pack with a BMS circuit and all the things you need to know before you built one!
1. Everything We Need for Building a 18650 Battery Pack
1)18650 Li-ion cells - 18650 batteries are used for powering everything from laptop batteries to electric vehicles. It is a standardized type of lithium-ion battery, cylindrical in shape and measuring 18mm in diameter by 65mm in length (give or take a few 1/10s of a millimeter).
2)BMS - A battery management system (BMS) is an electronic system that manages a rechargeable battery (cell or battery pack),such as by protecting the battery from operating outside its safe operating area, monitoring its state, calculating secondarydata,reporting that data, controlling its environment, authenticating it and / or balancing it.
3)Plastic Spacer- Replacing the traditional general adhesive with a professional battery holder, the combination is very convenient, the connection is more firm, and the battery maintenance is also convenient. It is the best choice for battery packs.It makes building battery pack much less painful.
4)Spot welder - One of the purposes of spot welding is to join 2 or more components together in a mainly permanent fashion. you can buy one or built one.
5)Nickel Ribbon - Nickel ribbon is commonly used in battery building due to its ease of use in spot welding and soldering as well,its high corrosion resistance over time.
2. Check the Battery and Charge Them Up!
First, we need to check the capacity of all the cells & make sure all the cells are at the same voltage. It is mandatory that all the cells are at the same voltage else cells will end up charing each other and it can lead to unexpected results.
3. Calculations for the battery pack voltage and capacity
18650 cell can provide a Nominal voltage of 3.7V, Minimum voltage of 3V and Maximum voltage of 4.2V. So if we consider nominal voltage, connecting 6 cells in series will give us 22.2V which is a 6S1P Configuration. Where 6S means 6 Cells in series and 1P means 1 cell in Parallel. By adding another 6 Cells in parallel we can not only double the capacity but also the amount of current
Pack can deliver.
4. Building the Pack and Spot Welding
For building the battery pack we need tiny black Plastic spacers which snap like Lego and can be very useful as we don't need to use adhesive instead. Now make 2 pairs of 6 plastic spacers, Insert the cells in alternation pattern. Now we measured the spacing between 2 cells and it was about 25mm. So I used Nickel Ribbon marked 25mm on it and used sharp scissors to snap it. Now Place the Nickel pieces on top of cells and make a series connection use a spot welder to fuse nickel ribbon and battery top.

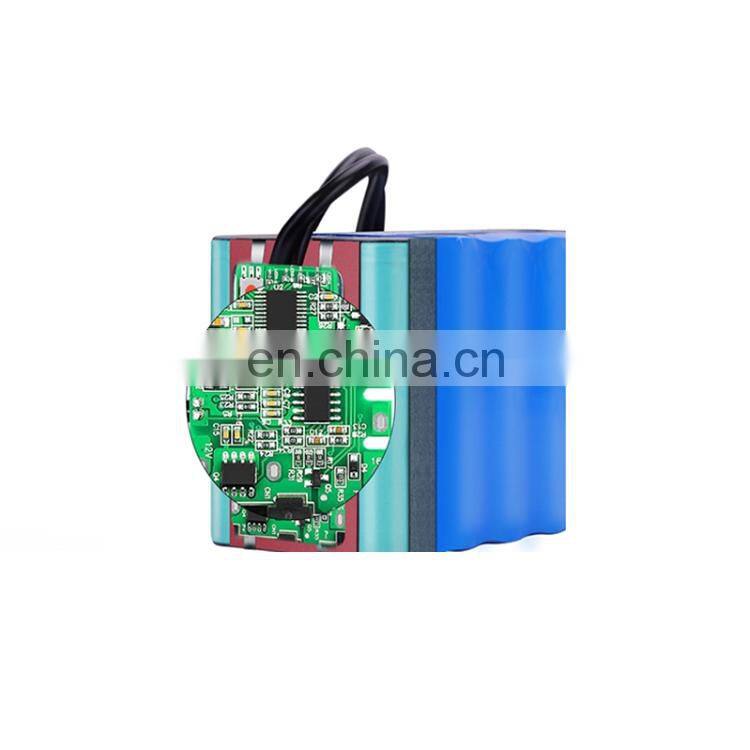

5. Adding BMS
Now we can add and plug and call it for the day but we can also add a BMS which adds over charge, over discharge and some of the also add Balance charging to the battery pack. we just have to solder it to the battery pack as shown on the board. Also, some BMS like mine does not offer Balance charging so you need to add and Balance charging connector and You are done!
If you want to know more information about us, please Send Us An Inquiry or Email, welcome to visit our company and factory in Shenzhen, China.
1)18650 Li-ion cells - 18650 batteries are used for powering everything from laptop batteries to electric vehicles. It is a standardized type of lithium-ion battery, cylindrical in shape and measuring 18mm in diameter by 65mm in length (give or take a few 1/10s of a millimeter).
2)BMS - A battery management system (BMS) is an electronic system that manages a rechargeable battery (cell or battery pack),such as by protecting the battery from operating outside its safe operating area, monitoring its state, calculating secondarydata,reporting that data, controlling its environment, authenticating it and / or balancing it.
3)Plastic Spacer- Replacing the traditional general adhesive with a professional battery holder, the combination is very convenient, the connection is more firm, and the battery maintenance is also convenient. It is the best choice for battery packs.It makes building battery pack much less painful.
4)Spot welder - One of the purposes of spot welding is to join 2 or more components together in a mainly permanent fashion. you can buy one or built one.
5)Nickel Ribbon - Nickel ribbon is commonly used in battery building due to its ease of use in spot welding and soldering as well,its high corrosion resistance over time.
2. Check the Battery and Charge Them Up!
First, we need to check the capacity of all the cells & make sure all the cells are at the same voltage. It is mandatory that all the cells are at the same voltage else cells will end up charing each other and it can lead to unexpected results.
3. Calculations for the battery pack voltage and capacity
18650 cell can provide a Nominal voltage of 3.7V, Minimum voltage of 3V and Maximum voltage of 4.2V. So if we consider nominal voltage, connecting 6 cells in series will give us 22.2V which is a 6S1P Configuration. Where 6S means 6 Cells in series and 1P means 1 cell in Parallel. By adding another 6 Cells in parallel we can not only double the capacity but also the amount of current
Pack can deliver.
4. Building the Pack and Spot Welding
For building the battery pack we need tiny black Plastic spacers which snap like Lego and can be very useful as we don't need to use adhesive instead. Now make 2 pairs of 6 plastic spacers, Insert the cells in alternation pattern. Now we measured the spacing between 2 cells and it was about 25mm. So I used Nickel Ribbon marked 25mm on it and used sharp scissors to snap it. Now Place the Nickel pieces on top of cells and make a series connection use a spot welder to fuse nickel ribbon and battery top.
5. Adding BMS
Now we can add and plug and call it for the day but we can also add a BMS which adds over charge, over discharge and some of the also add Balance charging to the battery pack. we just have to solder it to the battery pack as shown on the board. Also, some BMS like mine does not offer Balance charging so you need to add and Balance charging connector and You are done!
If you want to know more information about us, please Send Us An Inquiry or Email, welcome to visit our company and factory in Shenzhen, China.
