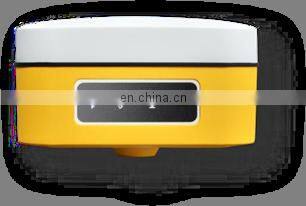

RTK station GNSS receiver





It is a mini portable GNSS receiver, which adopts Linux operating system, the latest generation of RTK measurement engine, built-in 4G all Netcom module, supports Blutooth / WiFi communication, has internal storage function, solid magnesium alloy body, and can be easily measured in complex environments





- Linux + Qualcomm mdm9628 cortex-a7 intelligent system platform brings users efficient computing and unlimited expansion of product functions.



- The host integrates high-precision positioning module, supports BDS B1 / B2 / B3, GPS L1 / L2 / L5, GLONASS L1 / L2, Galileo E1 / E5A / e5b, SBAS L1, QZSS L1 / L2 / L5, and receives and calculates signals at all frequency points of the whole system.



- Built in intelligent high-precision inertial navigation module and real-time tilt compensation make RTK measurement bid farewell to "flying point".



- The 4G all Netcom solution based on Linux platform fully supports the 2 / 3 / 4G network of China Mobile / China Unicom / - - Telecom, with better compatibility, stronger signal and more stable connection.



- The new four in one antenna integrates GNSS, WiFi, Bluetooth and 4G, with smaller volume and better signal.







Technical details



Configure   content

hardware platform Qualcomm MDM9628 Cortex-A7

software platform Linux

GNSS GPS L1,L2,L5

GLONASS L1,L2

BDS B1,B2,B3

GALILEO E1,E5a,E5b

QZSS L1,L2,L5

SBAS L1

Support data format NMEA-0183

Correction I / O protocol RTCM 2.X,RTCM 3.X

Data update rate 5Hz

Recapture time < 1s

cold boot < 40s

positioning accuracy Single point positioning (RMS) Plane: 1.5m, elevation: 3.0m

DGPS(RMS) Plane: 0.4m elevation: 0.8m

RTK(RMS) Plane: ± (10mm + 1ppm) elevation: ± (15mm + 1ppm)

Time accuracy (RMS) 20ns

Speed accuracy (RMS) 0.03m/s

Tilt compensation accuracy (within 30 °) < 2cm (tilt function is optional)

system platform Bluetooth V2.1 + EDR / v4.0 dual mode

WIFI 802.11 a/b/g/n/ac

Network Communications a phone fit all kinds of networks

LTE FDD: B1/B3/B5/B8

LTE TDD: B38/B39/B40/B41

TD-SCDMA: B34/B39

CDMA: BC0

WCDMA: B1/B8

GSM: 900/1800MHz

Built in storage 32GB

indicator light Power lamp Power indication

Satellite lamp Flashing represents effective positioning

Bluetooth lamp Always on when Bluetoth is connected

Data link lamp Blink when there is difference

Battery / charging Specifications 3.7V,9600mAh

Endurance More than 9 hours (typical power consumption)

charge Support MTK PE + 1.1 / 2.0 9V / 1.6A

Support USB PD 12V / 1.25A

Support 5V / 2A

Support fast charging adapter and adaptively and dynamically adjust charging current

Environmental characteristics working temperature - 20℃~+60℃

Storage temperature - 40℃~+85℃

anti-seismic Normal temperature resistance 1.5m falling with the rod

Three prevention level IP65

physical characteristics Material Science Magnesium alloy shell + ABS / PC plastic top cover

size 100mm*100mm*61.5mm

weight ≤0.65kg

parts M68 host 1 set

5V / 2A USB power adapter 1

USB a to type-C data cable 1 piece

adapter 1
