Home > Products > Angular Contact Ball Bearings > HTA048UA DB Angular Contact Ball Bearing HTA048UADB

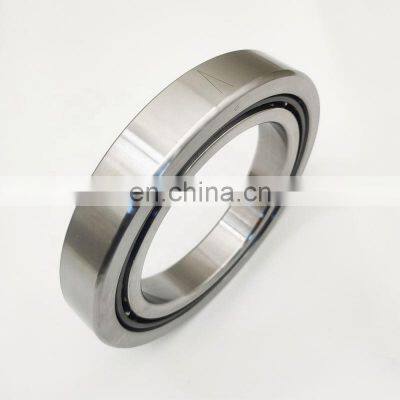

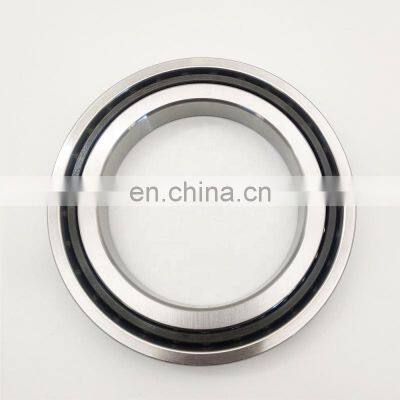

HTA048UA DB Angular Contact Ball Bearing HTA048UADB
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
HTA052UA DB Angular Contact Ball Bearing HTA052UADB
-
HTA056UA DB Angular Contact Ball Bearing HTA056UADB
-
HTA060UA DB Angular Contact Ball Bearing HTA060UADB
-
HTA064UA DB Angular Contact Ball Bearing HTA064UADB
-
HTA920 DB Angular Contact Ball Bearing HTA920DB
-
HTA920 DB Angular Contact Ball Bearing HTA920DB
Product Description
HTA048UA DB Angular Contact Ball Bearing HTA048UADB
Product Description
Product details
| Model No | d | D | mm 2B rs min1 |
r1s min1 | single row mass kg |
||||||||||||||
| HTA011UADB | 55 | 90 | 33 | 1.1 | 0.6 | 0.39 | |||||||||||||
| HTA012UADB | 60 | 95 | 33 | 1.1 | 0.6 | 0.41 | |||||||||||||
| HTA013UADB | 65 | 100 | 33 | 1.1 | 0.6 | 0.44 | |||||||||||||
| HTA014UADB | 70 | 110 | 36 | 1.1 | 0.6 | 0.61 | |||||||||||||
| HTA015UADB | 75 | 115 | 36 | 1.1 | 0.6 | 0.65 | |||||||||||||
| HTA016UADB | 80 | 125 | 40.5 | 1.1 | 0.6 | 0.88 | |||||||||||||
| HTA017UADB | 85 | 130 | 40.5 | 1.1 | 0.6 | 0.93 | |||||||||||||
| HTA018UADB | 90 | 140 | 45 | 1.5 | 1 | 1.22 | |||||||||||||
| HTA019UADB | 95 | 145 | 45 | 1.5 | 1 | 1.27 | |||||||||||||
| HTA020UADB | 100 | 150 | 45 | 1.5 | 1 | 1.34 | |||||||||||||
| HTA021UADB | 105 | 160 | 49.5 | 2 | 1 | 1.74 | |||||||||||||
| HTA022UADB | 110 | 170 | 54 | 2 | 1 | 2.14 | |||||||||||||
| HTA024UADB | 120 | 180 | 54 | 2 | 1 | 2.32 | |||||||||||||
| HTA026UADB | 130 | 200 | 63 | 2 | 1 | 3.39 | |||||||||||||
| HTA028UADB | 140 | 210 | 63 | 2 | 1 | 3.60 | |||||||||||||
| HTA030UADB | 150 | 225 | 67.5 | 2.1 | 1.1 | 4.46 | |||||||||||||
| HTA032UADB | 160 | 240 | 72 | 2.1 | 1.1 | 5.40 | |||||||||||||
| HTA034UADB | 170 | 260 | 81 | 2.1 | 1.1 | 7.20 | |||||||||||||
| HTA036UADB | 180 | 280 | 90 | 2.1 | 1.1 | 10.6 | |||||||||||||
| HTA038UADB | 190 | 290 | 91 | 2.1 | 1.1 | 11.0 | |||||||||||||
| HTA040UADB | 200 | 310 | 99 | 2.1 | 1.1 | 13.8 | |||||||||||||
| HTA044UADB | 220 | 340 | 108 | 3 | 1.1 | 18.1 | |||||||||||||
| HTA048UADB | 240 | 360 | 108 | 3 | 1.1 | 18.9 | |||||||||||||
| HTA052UADB | 260 | 400 | 123 | 4 | 1.5 | 28.4 | |||||||||||||
| HTA056UADB | 280 | 420 | 123 | 4 | 1.5 | 30.2 | |||||||||||||
| HTA060UADB | 300 | 460 | 142.5 | 4 | 1.5 | 43.6 | |||||||||||||
| HTA064UADB | 320 | 480 | 142.5 | 4 | 1.5 | 45.8 | |||||||||||||
Company Information
Our Advantages
History
HISTORY
Certifications
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
