Home > Products > Angular Contact Ball Bearings > Double Row Angular Contact Bearing 3200 ATN9 3200ATN9 3308DNRCBM
Double Row Angular Contact Bearing 3200 ATN9 3200ATN9 3308DNRCBM
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Four-point Contact Ball Bearings QJ 226 N2MA QJ226N2MA
-
Double Row Angular Contact Bearing 3200 ATN9 3200ATN9 3313A
-
Double Row Angular Contact Bearing 3200 ATN9 3200ATN9 3313DNRCBM
-
Four-point Contact Ball Bearings QJ 222 N2MA QJ222N2MA
-
Four-point Contact Ball Bearings QJ 317 N2MA QJ317N2MA
-
Four-point Contact Ball Bearings QJ 213 N2MA QJ213N2MA
Product Description
Product Description

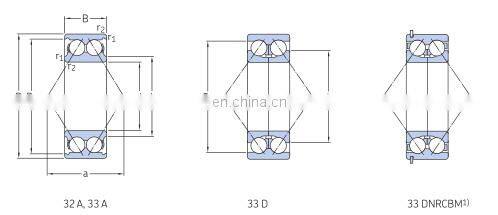

Angular Contact Ball bearing
| Part No.(OPEN) | Part No.(SEAL) | d | D | T | Mass |
| – | 3200 ATN9 | 10 | 30 | 14 | 51 |
| – | 3201 ATN9 | 12 | 32 | 15,9 | 58 |
| – | 3202 ATN9 | 15 | 35 | 15,9 | 66 |
| – | 3302 ATN9 | 15 | 42 | 19 | 0,13 |
| – | 3203 ATN9 | 17 | 40 | 17,5 | 96 |
| – | 3303 ATN9 | 17 | 47 | 22,2 | 0,18 |
| 3204 A | 3204 ATN9 | 20 | 47 | 20,6 | 0,16 |
| 3304 A | 3304 ATN9 | 20 | 52 | 22,2 | 0,22 |
| 3205 A | 3205 ATN9 | 25 | 52 | 20,6 | 0,18 |
| 3305 A | 3305 ATN9 | 25 | 62 | 25,4 | 0,35 |
| 3206 A | 3206 ATN9 | 30 | 62 | 23,8 | 0,29 |
| 3306 A | 3306 ATN9 | 30 | 72 | 30,2 | 0,52 |
| 3207 A | 3207 ATN9 | 35 | 72 | 27 | 0,44 |
| 3307 A | 3307 ATN9 | 35 | 80 | 34,9 | 0,74 |
| 3307 DJ1 | – | 35 | 80 | 34,9 | 0,79 |
| 3208 A | 3208 ATN9 | 40 | 80 | 30,2 | 0,57 |
| 3308 DNRCBM | – | 40 | 90 | 36,5 | 1,2 |
| 3308 A | 3308 ATN9 | 40 | 90 | 36,5 | 0,93 |
| 3308 DMA | – | 40 | 90 | 36,5 | 1,05 |
| 3308 DTN9 | – | 40 | 90 | 36,5 | 1,05 |
| 3209 A | 3209 ATN9 | 45 | 85 | 30,2 | 0,63 |
| 3309 DNRCBM | – | 45 | 100 | 39,7 | 1,5 |
| 3309 A | 3309 ATN9 | 45 | 100 | 39,7 | 1,25 |
Packaging & Shipping
Angular Contact Ball bearing
Bearings Package:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings Lead time:
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others
