5215-M Double Row Angular Contact Ball Bearing 5215M
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
5216-M Double Row Angular Contact Ball Bearing 5216M
-
5217-M Double Row Angular Contact Ball Bearing 5217M
-
5218-M Double Row Angular Contact Ball Bearing 5218M
-
5304-M Double Row Angular Contact Ball Bearing 5304M
-
5304-M1 Double Row Angular Contact Ball Bearing 5304M1
-
5305-M Double Row Angular Contact Ball Bearing 5305M
Product Description

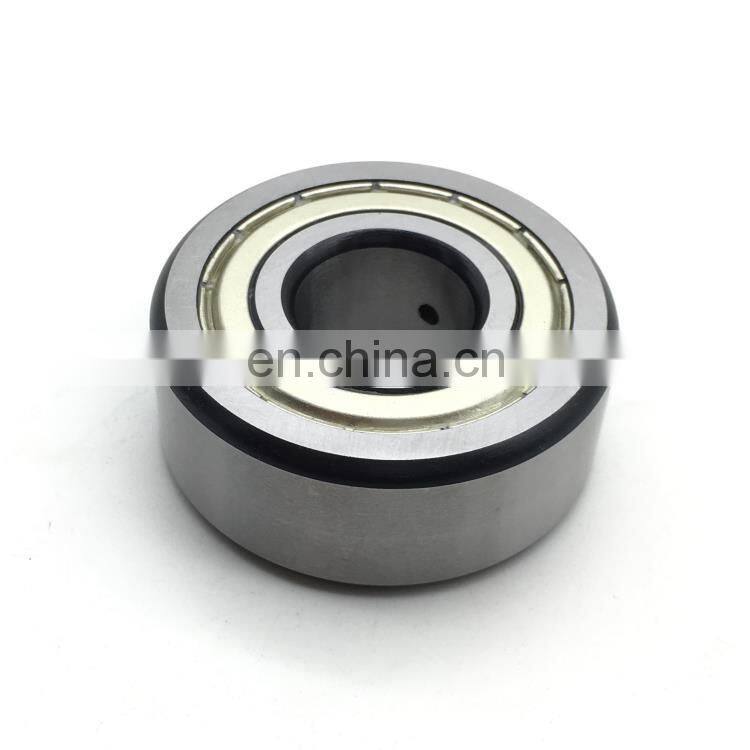

5215-M Double Row Angular Contact Ball Bearing 5215M
| Material | GCR15,Chrome steel material |
| Stock | yes |
| Packing | sinlge box packing |

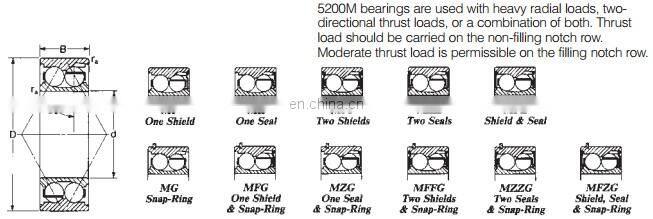

| Part No. | Bore | Outside diameter | width |
| d | D | B | |
| 5204-M | 20 | 47 | 20.64 |
| 5205-M | 25 | 52 | 20.64 |
| 5205-M1 | 25 | 52 | 22.23 |
| 5206-M | 30 | 62 | 23.81 |
| 5206-M1 | 30 | 62 | 26.99 |
| 5207-M | 35 | 72 | 26.99 |
| 5207-M1 | 35 | 72 | 30.16 |
| 5208-M | 40 | 80 | 30.16 |
| 5209-M | 45 | 85 | 30.16 |
| 5210-M | 50 | 90 | 30.16 |
| 5211-M | 55 | 100 | 33.34 |
| 5212-M | 60 | 110 | 36.51 |
| 5212-M1 | 60 | 110 | 38.1 |
| 5213-M | 65 | 120 | 38.1 |
| 5214-M | 70 | 125 | 39.69 |
| 5215-M | 75 | 130 | 41.28 |
| 5216-M | 80 | 140 | 44.45 |
| 5217-M | 85 | 150 | 49.21 |
| 5218-M | 90 | 160 | 52.39 |
| 5304-M | 20 | 52 | 22.23 |
| 5304-M1 | 20 | 52 | 25.4 |
| 5305-M | 25 | 62 | 25.4 |
| 5306-M | 30 | 72 | 30.16 |
| 5306-M1 | 30 | 72 | 33.34 |
| 5307-M | 35 | 80 | 34.93 |
| 5307-M1 | 35 | 80 | 38.1 |
| 5308-M | 40 | 90 | 36.51 |
| 5308-M1 | 40 | 90 | 39.69 |
| 5309-M | 45 | 100 | 39.69 |
| 5309-M1 | 45 | 100 | 42.86 |
| 5310-M | 50 | 110 | 44.45 |
| 5310-M1 | 50 | 110 | 47.63 |
| 5311-M | 55 | 120 | 49.21 |
| 5311-M1 | 55 | 120 | 52.39 |
| 5312-M | 60 | 130 | 53.98 |
| 5312-M1 | 60 | 130 | 57.15 |
| 5313-M | 65 | 140 | 58.74 |
| 5313-M1 | 65 | 140 | 61.91 |
| 5314-M | 70 | 150 | 63.5 |
| 5314-M1 | 70 | 150 | 66.68 |
| 5315-M | 75 | 160 | 68.26 |
| 5315-M1 | 75 | 160 | 71.44 |
| 5316-M | 80 | 170 | 68.26 |
| 5317 | 85 | 180 | 73.03 |
| 5318 | 90 | 190 | 73.03 |
| 5319 | 95 | 200 | 77.79 |
Packing&Shipping
Bearings Package:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case
Bearings Lead time:
We will prepare your order as soon as possible.
1)2-3 days for ex-stock
2)6-10 days for others
