3 Ton Skid-Mounted Type Natural Gas Diesel Oil Steam Boiler for food plant, autoclave
Model:WNS Type packaged steam boiler
Structure:Wet Back Fire Tube Three Pass
Rated Steam Capacity:1-25 ton/hr
Rated Steam Pressure:0.7/1.0/1.25/1.6/2.5 Mpa
Rated Steam Temperature:170/184/194/204/225 C
Application:Textile Mill,Food and Beverage,Chemical,Medicine,Light Industry,Rubber,Printing and Dyeing Plant,Paper Mill,Wood Processing,Garment and Laundry etc.
Introduction
WNS type steam boiler wet back type three return all the corrugated furnace, threaded smoke tube, heat has good scalabiity.The tube plate and the cylinder body adopts the flanged connection structure, the main body of weld butt structure, all adopt the automatic submerged arc welding. Heating area is abundant, large hearth structure, micro positive pressure combustion,combustion heat load is low, less emissions of harmful substances, many boiler combustion chamber design is reasonable,fully adapt to city gas, natural gas,light diesel oil, heavy oil and other fuels, fuel in the hearth of the micro positive pressure combustion, burning completely, less pollutants from flue gas, boiler flue gas blackness, the blackness of the smoke and dust concentration and noise technical indicators were better than the national a class area standards.
Boiler Feature
Performance advantage
1. Boiler design
Horizontal internal combustion three return journey full wet back design, 100% corrugated furnace, with good thermal retrability, water cooled retrorse chamber, retrorse chamber and back tubeplate butt joint, lowest stress, more reliable quality.
2, large diameter corrugated furnace
The boiler combustion chamber is composed of a large diameter full ripple furnace with large combustion space, complete fuel combustion, effective heat absorption and thermal expansion, and large radiation heating surface.
3. Sufficient heat
The heating area of the boiler is designed to be more than 25 square meters/ton, fully absorbing effective heat, low smoke exhaust temperature, small heat loss, ensuring sufficient output and high efficiency.
4. Steam quality
Pot shell diameter, large water capacity, strong adaptability to load changes, stable output, steam space volume, soda interface and steam outlet net distance is high, low steam humidity.
5. Multi-functional safety and explosion protection device
The back plate of the boiler is equipped with the explosion-proof device which is connected with the furnace to prevent the high energy of the discharge moment when the fuel is violently deflated in the furnace, and it can automatically reset. Meanwhile, it has the function of the fire-viewing mirror and the maintenance channel. It makes use of the adjustment of the burning flame in operation, and makes the furnace inspection and maintenance convenient.
SAFETY FEATURES
Real-time monitoring of water level: Electronic water-level detecting device
Water shortage protection: The combustion control system power will be cut off when there is water shortage along with alarm.
Leakage protection: The power will be cut off when there is leakage detected by the control system.
Over pressure protection: When the pressure is over the preset value, the combustion control system power will be cut off along with alarm.
Steam Safety Valve automatically opens to reduce pressure should excessive steam cause pressure build-up.
Steam Pressure Gauge allows visual observation of steam pressure over full range.
Manual Reset Pressure Control provides high limit pressure cut-out with manual reset.
Complete gas manifolds and protection system for gas boiler: Strainer, pressure regulating valve and magnetic valve
Flue gas monitoring device can detect the flue gas temperature automatically.
Technical parameters
| Model | Rated | Rated | Rated | Thermal | Fuel Consumption | Equipment Power | Weight | ||
|
Capacity (t/h) |
Pressure (Mpa) |
Temperature (C) |
Efficiency (%) |
Light oil (Kg/h) |
Natural gas (Nm³/h) |
Burn light oil |
Burn gas |
(t) | |
| WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | >90 | 45-100 | 18-100 | 1.5 | 1.5 | 4 |
| WNS1.5 | 1.5 | >90.2 | 101.73 | 123.47 | 2.2 | 1.5 | 5 | ||
| WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | >90.2 | 137.09 | 165.97 | 2.2 | 3 | 8 |
| WNS3 | 3 | >91 | 205.75 | 249.6 | 7.5 | 7.5 | 9 | ||
| WNS4 | 4 | >91 | 272.3 | 329.5 | 9 | 7.5 | 13 | ||
| WNS5 | 5 | >91.5 | 134-402 | 80-500 | 17.2 | 15 | 15 | ||
| WNS6 | 6 | >91.5 | 134-402 | 80-500 | 15 | 15 | 17 | ||
| WN8 | 8 | 1.25/1.6/2.5 | 194/204/225 | >91.6 | 523.4 | 631.5 | 26 | 22 | 21 |
| WNS10 | 10 | >91.6 | 212-890 | 150-1085 | 26 | 22 | 22 | ||
| WNS12 | 12 | >91.8 | 915.5 | 1090 | 26 | 22 | 27 | ||
| WNS15 | 15 | >91.8 | 931.5 | 1094.4 | / | / | 34 | ||
| WNS20 | 20 | >92 | 1380.33 | 1598.44 | / | / | 45 | ||
| Note: Parameter is for reference only, we can design the boilers based on customers’ needs. | |||||||||

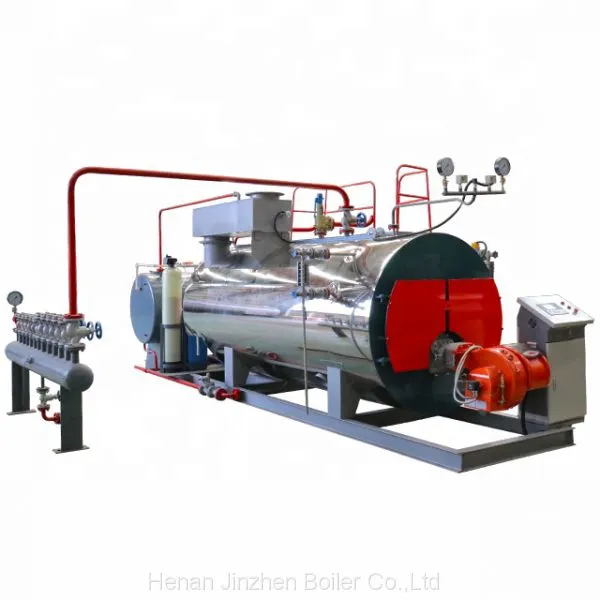

Picture of steam boiler
FAQ
1. What are the available fuel for the oil gas fired boiler?
Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.
2. Whether the boiler can burn dual fuel or multi-fuel?
Industrail steam boilers have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’ requirement.
3. What is the texture of spirally corrugated tube?
The texture of spirally corrugated tube is 20#.
4. The brand of burner?
The brands of burner are Italy Baltur, Rellio, Elco, etc.
5. What is the thickness of combustion chamber?
the thickness of corrugated furnace is different based on working pressure and furnace diameter, generally, the thickness is between 10~18mm, large combustion space, and combustion sufficient.
6. What is the advantages of fire tube boiler?
This fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement, and the failure rate of it is lower than 0.1!
7. Details of electric control cabinet.
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
8. What is the inlet pressure of gas burner?
The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.
