RMG Type Cabin Control Container Yard Double Girders Container Gantry Crane
US$ 10000 - 100000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Weihua
Place of Origin:
China
Certification:
CE;GOST;SGS;ISO,
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port,Qingdao Port and Others
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Beam Container Gantry Crane Ocean Port Lifting Container Rail Mounted Gantry CraneUS$ 10000 - 1000000MOQ: 1 Set -
Gantry Crane With Grab BucketUS$ 10000 - 100000MOQ: 1 Set
-
Straddle Carrier Gantry CraneUS$ 10000 - 100000MOQ: 1 Set
-
MG Type Cabin Control Box Type Double Girder Electric Rail Traveling Overhead CraneUS$ 10000 - 100000MOQ: 1 Set
-
50 Ton Lifting RTG Container Portal CraneUS$ 10000 - 100000MOQ: 1 Set
Brand Name
Weihua
Place of Origin
China
Certification
CE;GOST;SGS;ISO,
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12months
Application
outdoor
Condition
New
Max. Lifting Load
35t
Span
16m
Rated Loading Capacity
35t
Max. Lifting Height
16

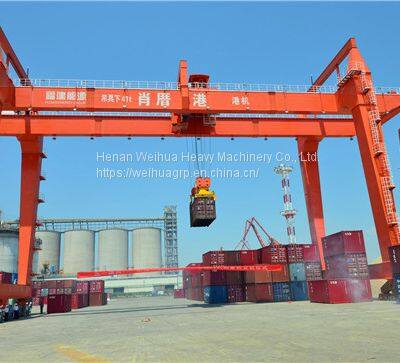

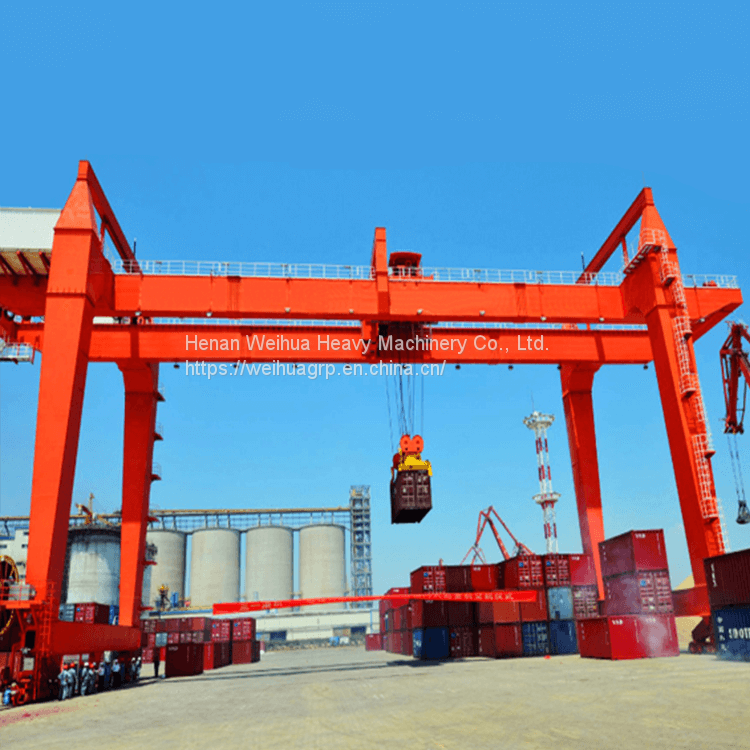

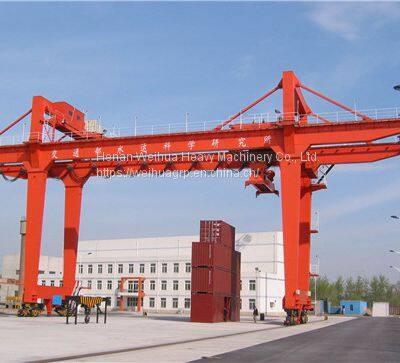

1. Rail mounted gantry crane is a kind of rail mounted crane used to offload, stack and load 20ft, 40ft, 45ft ISO standard containers. Its provision of power is offered by cable reel. The crane contains three mechanisms: hoisting, trolley travelling and gantry travelling. The trolley running along the track mounted on gantry beam is capable to serve among legs. The rail mounted gantry crane is able to make straight movement along rails.
2. The crane is equipped with appropriate flexible hydraulic container spreader, which is connected to trolley through the upper frame and wire rope system.
And the hydraulic power comes from spreader itself, and we just provide the power supply and communication.
3. Hoisting mechanism and trolley travel are able to work simultaneously or separately with load; the same applies to gantry travel and trolley travel.
4. Electrical drive of main working mechanism is equipped with full digital AC frequency convertor, PLC speed governor and constant power adjustment device for hoisting mechanism.
5. The crane has a monitoring and management system. It has the function of data collection, analysis, management, and fault diagnosis and is also able to deliver the main parameters and operating conditions to the electrical room, cabin and control centre for monitoring and control.
2. The crane is equipped with appropriate flexible hydraulic container spreader, which is connected to trolley through the upper frame and wire rope system.
And the hydraulic power comes from spreader itself, and we just provide the power supply and communication.
3. Hoisting mechanism and trolley travel are able to work simultaneously or separately with load; the same applies to gantry travel and trolley travel.
4. Electrical drive of main working mechanism is equipped with full digital AC frequency convertor, PLC speed governor and constant power adjustment device for hoisting mechanism.
5. The crane has a monitoring and management system. It has the function of data collection, analysis, management, and fault diagnosis and is also able to deliver the main parameters and operating conditions to the electrical room, cabin and control centre for monitoring and control.
