Home > Manufacturing & Processing Machinery > Crane > Other Cranes > QY Type Cabin Control Box Type Double Beam Insulation Type Electric Bridge Traveling Crane
QY Type Cabin Control Box Type Double Beam Insulation Type Electric Bridge Traveling Crane
US$ 10000 - 100000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Weihua
Place of Origin:
China
Certification:
CE;GOST;SGS;ISO,
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port,Qingdao Port and Others
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QZ Type High Technique Double Beam Bucket Overhead Traveling CraneUS$ 10000 - 100000MOQ: 1 Set -
QC Type Remote Control Box Type Double Beam Electric Magnetic Type Bridge Traveling CraneUS$ 10000 - 100000MOQ: 1 Set
-
LDA Type Remote Line Control Steel Box Type Single Beam Bridge Travelling CraneUS$ 10000 - 1000000MOQ: 1 Set
-
LDY Type Single Beam Electric Overhead Traveling CraneUS$ 10000 - 100000MOQ: 1 Set
-
QB Type Cabin Control Box Type Double Beam Explosion Proof Type Bridge Traveling CraneUS$ 10000 - 100000MOQ: 1 Set
Brand Name
Weihua
Place of Origin
China
Certification
CE;GOST;SGS;ISO,
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 months
Application
Widely used in non-ferrous metal electrolytic aluminum, magnesium, lead, zinc and other smelting workshops.
Condition
New
Max. Lifting Load
60t
Span
10.5-31.5m
Rated Loading Capacity
60t
Max. Lifting Height
18m

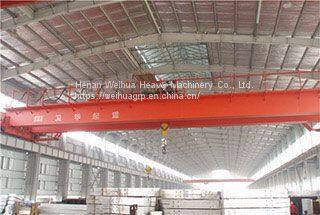

QY Insulated Double Girder Overhead Crane is mainly composed of bridge frame, crane traveling mechanism, trolley, electrical equipment, etc. Three parts are insulated to ensure the security on the hook, pulley, lifting mechanism, trolley frame and the crane; The impedance of each insulation is not less than 1 mΩ at 20℃-25℃ room temperature and humidity ≦85%.
Widely used in non-ferrous metal electrolytic aluminum, magnesium, lead, zinc and other smelting workshops.

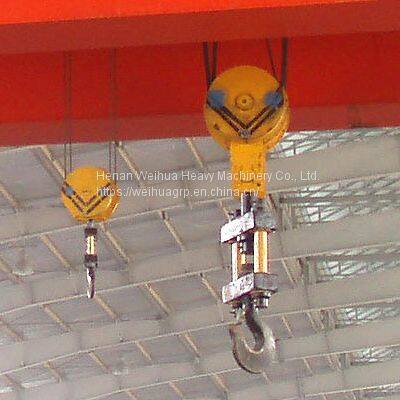

In order to ensure the safety of lifting, the lifting mechanism is equipped with double brakes.
The crane's operations are all completed in the driver's cabin.
Work Duty: A6 is equivalent to ISO M6 / FEM 3m. A7 is equivalent to ISO M7 / FEM 4m
