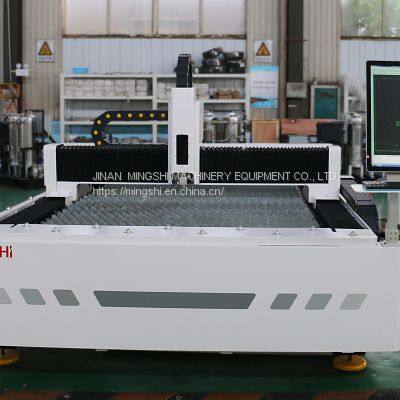

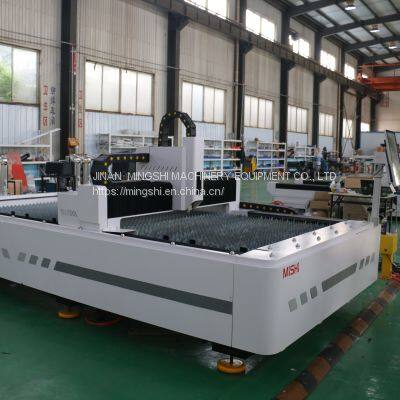

Automatic loading and unloading Laser Engraving Machines Cutting Stainless Steel With water cooling system

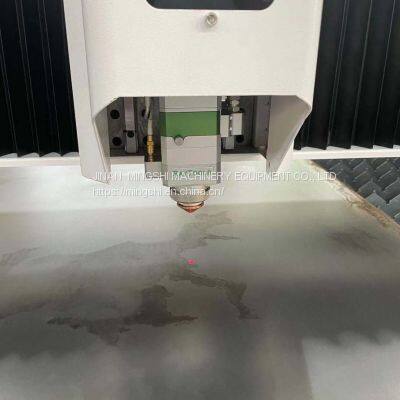

Laser head

Laser head

1 set

RAYTOOLS

Machine tool host machine

Table structure

1 set

Time treatment pipe welding / plate welding bed body

XY gear rack

3 sets

High-precision grinding

Z-axis ball screw

1 set

Taiwan (TBI)

X/Y/Z-axis guide rail

4 sets

Taiwan (PMI)

Pneumatic component

Several

Japan SMC

Electrical part

Several

Schneider

Servo motor

4 sets

Japan Fuji

Reducer

3 sets

Japan SHIMPO

Water chiller

1 set

        Hanli

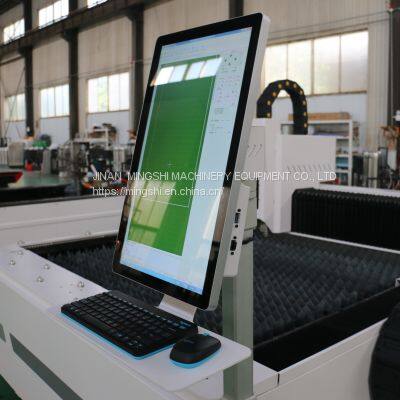

CNC and software

Laser cutter system

1 set

Weihong control system

xy axis 850w, Z 400w with brake motor

Model

F3015

Laser type

Fiber laser

Laser working medium

Optical fiber

Laser wave length

1060-1080nm

Output rating

1000w

X-axis travel

1500mm

Y-axis travel

3000mm

Maximal acceleration

1.5G

Plate effective cutting range

3000*1500mm

positioning accuracy

0.03mm/m

Repeat the positioning accuracy

±0.02mm/m

Maximum empty speed

100m/min

Power supply rating parameters

3 phase current 380V 50Hz

NO

Name

1

Protective lens

2

Focus mirror

3

ceramic body

4

Nozzle

Application industries: metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agricultural and forestry machinery, elevator manufacturing, special automobiles, household appliances manufacturing, tool processing, IT manufacturing, petroleum machinery manufacturing, food machinery , Diamond tool welding, gear welding, metal material surface treatment, decorative advertising, laser external processing services and other machinery manufacturing and processing industries.

Applicable materials: professionally used to cut a variety of medium and thin metal plates, high-quality cutting carbon steel plates, and can also cut stainless steel plates, aluminum alloy plates, galvanized plates, electrolytic plates, silicon steel, titanium alloys, aluminum-zinc plates and other metal materials .

 Our after - sales service

1. 3 years warranty for machine.

2. Online train and video

3. After sale office in differ country

4. Free spare parts with shipping.

5. Online support and install train.
