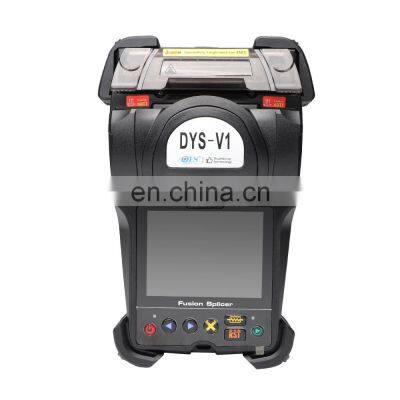

DYS-V1 Fully Automatic FTTH Fiber Optic Welding Splicing Machine Optical Fiber Fusion Splicer New Product
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DYS-S1 Automatic Fusion Splicer Machine Fiber Optic Fusion Splicer Cleaver Kits for Bare Fiber/Drop Cable/PigtailNegotiableMOQ: 1 -
DYS-S1 New Automatic ARC FTTH Optical Fiber Fusion Splicer Splicing Machine for SaleNegotiableMOQ: 1
-
Fiber Optical Drop Wire Stripper Plier Wire Stripper Fiber Optic Tool Fiber Optic Drop Cable StripperNegotiableMOQ: 1
-
Factory Price 1 2 Core FTTH Fiber Optical Drop Cable 1km Price Ftth Cable for Indoor/Outdoor UseNegotiableMOQ: 1
-
Single Multi Mode 2.0mm 1m 2m 3m 5m 10m SC/APC SC Fiber Optic Patch CordNegotiableMOQ: 1
Product Description
DYS-V1 Fully automatic FTTH Fiber Optic Welding Splicing Machine Optical Fiber Fusion Splicer New product
Water-resistant, dust-resistant and shock-resistant in design
Water-resistant and dust-resistant can meet IP52 requirements.
Appicable Fibers |
SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655) |
Compatible Fiber/Cable |
0.25-3.0mm/Indoor Cable |
Cleaved Length |
Coating Diameter: 0.125-1mm/Cladding diameter:80-150μm/Cleave length:8-16mm |
Splicing Mode |
Preset 41 splicing modes, storable 100 modes |
Typical Splice Loss |
SM: 0.03dB/MM: 0.02dB/DS: 0.05dB/NZDS: 0.05dB/G657: 0.03dB (ITU-T Standard) |
Return Loss |
≥60db |
Splicing Time |
SM fast mode: 6s |
Estimated Splice Loss |
yes |
Protection Sleeve Length |
20-60mm |
Heating tank |
Preset 5 kinds of thermal heating tube: 20/30/40/50/60mm, Max 100 modes |
Heating Time |
Fast heating time: 13s, Typical Heating Time: 30s |
Results Storage |
20000 latest records & 200 images |
Tension Test |
1.5-2.0N |
Power Supply |
AC Input 100-240V,DC Input 12-15V |
Battery capacity |
2200mAh battery capacity |
Heating times |
typical above 120 times(splicing+heating) |
Operating Methods |
Button/Touch Screen |
Automatic Calibration |
Automatic ARC calibration by air pressure and temperature |
Electrode Life |
5000 ARCS |
Terminal |
USB 2.0 |
Weight |
1.15 KG (including rubber Bumper) |
Dimension |
132W*205L*98Hmm (including rubber Bumper) |
Operating Condition |
Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50℃, max wind 15m/s |
Storage Condition |
0~95% relative humidity, -40~80℃; battery storage: -20~30℃ |
Small and light
Small in size and light in weight, the splicer is easy to carry and can be lift by one hand.
