24 48 96 144 288 Core Vertical Dome Type Fiber Cable Joint Box Black Fiber Optic Splice Closure IP68 Aerial ISO9001, ROHS CN;GUA

24 48 96 144 288 Core Vertical Dome Type Fiber Cable Joint Box Black Fiber Optic Splice Closure IP68 Aerial ISO9001, ROHS CN;GUA photo-1
24 48 96 144 288 Core Vertical Dome Type Fiber Cable Joint Box Black Fiber Optic Splice Closure IP68 Aerial ISO9001, ROHS CN;GUA photo-2
24 48 96 144 288 Core Vertical Dome Type Fiber Cable Joint Box Black Fiber Optic Splice Closure IP68 Aerial ISO9001, ROHS CN;GUA photo-3
24 48 96 144 288 Core Vertical Dome Type Fiber Cable Joint Box Black Fiber Optic Splice Closure IP68 Aerial ISO9001, ROHS CN;GUA photo-4
24 48 96 144 288 Core Vertical Dome Type Fiber Cable Joint Box Black Fiber Optic Splice Closure IP68 Aerial ISO9001, ROHS CN;GUA photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

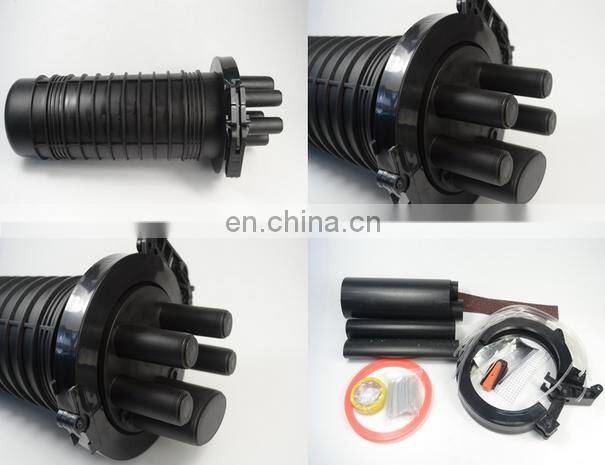

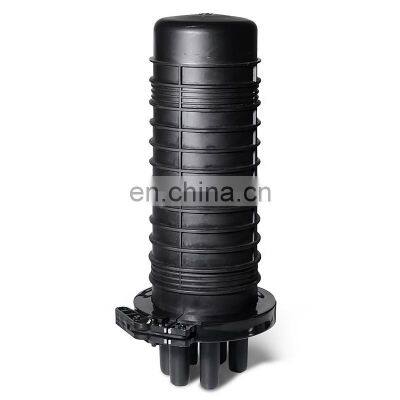

 24 48 96 144 288 core Vertical Dome type fiber cable joint box Fiber optic splice closure



DYS FOSC-008 of fiber closure is used for connecting and protecting singal core or bunch cables. It can be placed in underground, aerial, wall-mounting, pedestal or direct buried, hand hole-mounting and duct-mounting applications. We always aim to the R&D of communication equipment. Our fiber closures can improve the operation of your network communication system.Closure is suitable for the applications up to 96 single fibers,which can cover most of the applications in the long-distance transmission and local fiber distribution networks, like Fiber To The Home / Fiber To The Curb …(FTTH/FTTC).



Features:

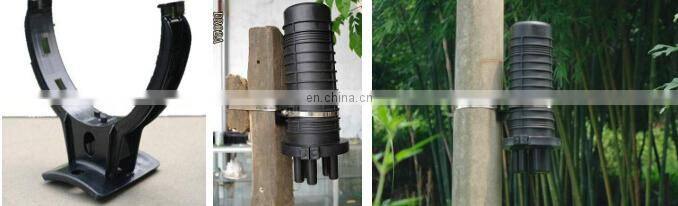

1.1 The closure can be used in duct, buried, overhead..etc
1.2 High quality impact material.pp and internal is PP,ABS
1.3 Designed for ftth with adapter if need.

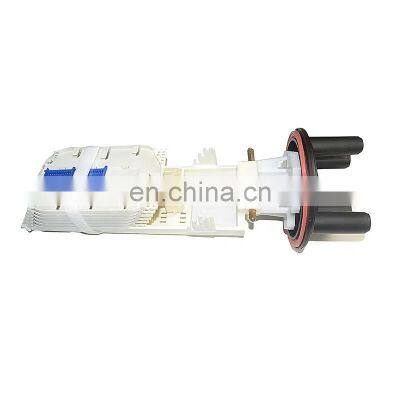

1.4 Fiber storage with big basket

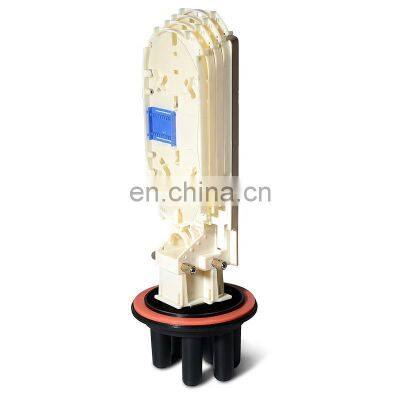

1.5 Modular fiber management system
1.6 Cable diameter range: 8~20 mm

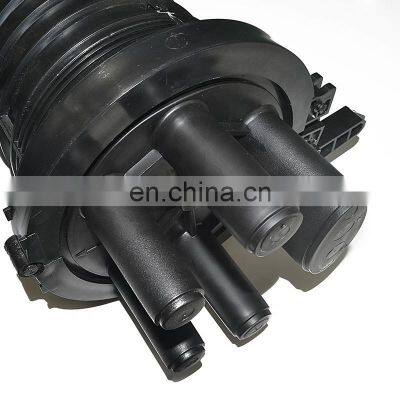

1.7 Sealing way of cables:Mechanical seaing by silicon rubber
1.8 IP rating is IP68

 24 48 96 144 288 Core Vertical Dome Type Fiber Cable Joint Box Black Fiber Optic Splice Closure IP68 Aerial ISO9001, ROHS CN;GUA



24 48 96 144 288 Core Vertical Dome Type Fiber Cable Joint Box Black Fiber Optic Splice Closure IP68 Aerial ISO9001, ROHS CN;GUA



24 48 96 144 288 Core Vertical Dome Type Fiber Cable Joint Box Black Fiber Optic Splice Closure IP68 Aerial ISO9001, ROHS CN;GUA

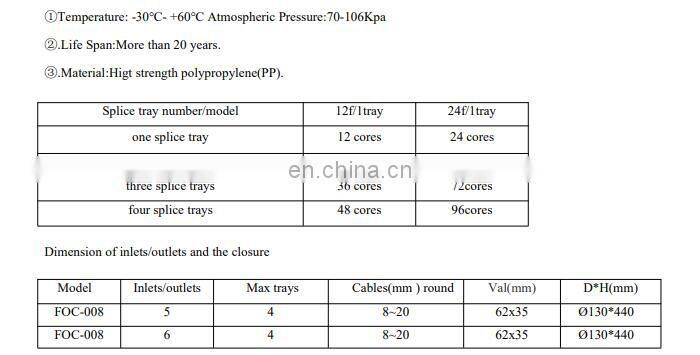

Specification

Item

FOSC-001

FOSC-002

FOSC-003

FOSC-004

FOSC-005

FOSC-006

FOSC-007

FOSC-008

FOSC-009

FOSC-010

Size(H*W*D)mm

460*20*110

415*200*105

300*200*93

386*250*120

438*205

330*85

435*220

430*130

600*135

600*250

Cable port

4

8

2

6

4

3

3

5

5

5

Max splice capacity

120

144

72

192

288

36

240

96

96

576

Weight (KG)

2.6

3.5

1.45

3.3

2.8

1

3.1

3.5

3.6

5.5

Material

ABS ,PC or PP

Duration

25 years

Type

Horizontal

Vertical (Dome)



24 48 96 144 288 Core Vertical Dome Type Fiber Cable Joint Box Black Fiber Optic Splice Closure IP68 Aerial ISO9001, ROHS CN;GUA

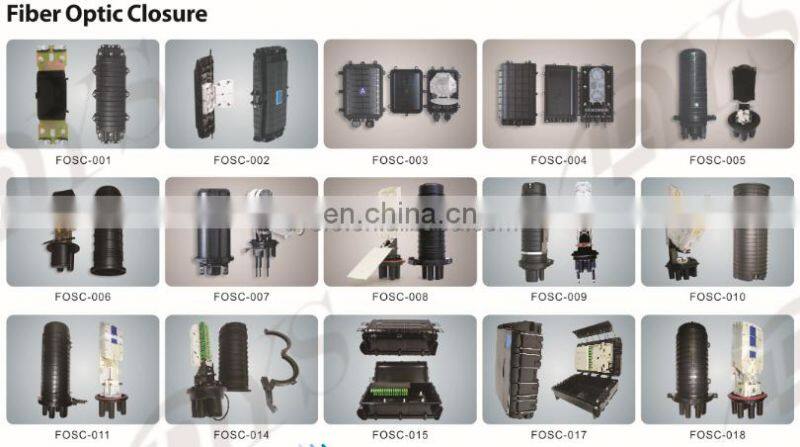

Other type closures

24 48 96 144 288 Core Vertical Dome Type Fiber Cable Joint Box Black Fiber Optic Splice Closure IP68 Aerial ISO9001, ROHS CN;GUA





 24 48 96 144 288 Core Vertical Dome Type Fiber Cable Joint Box Black Fiber Optic Splice Closure IP68 Aerial ISO9001, ROHS CN;GUA24 48 96 144 288 Core Vertical Dome Type Fiber Cable Joint Box Black Fiber Optic Splice Closure IP68 Aerial ISO9001, ROHS CN;GUA
