Products Description

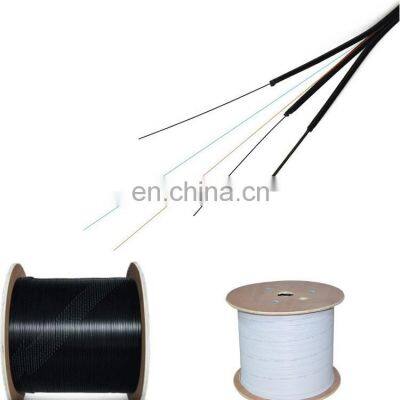

Self-supporting Outdoor Steel Messenger Wire FRP FTTH Drop Fibra Optica 1 2 4 core fiber optic cable
Drop cables are located on the subscriber end to connect the terminal of a distribution cable to a subscriber’s premises. They are typicality small diameter, low fiber count cables with limited unsupported span lengths, which can be installed aerially, underground or buried. As it is used in outdoor, drop cable shall have a minimum pull strength of 1335 Newtons according to the industry standard. Drop cables are available in many different types. Flat Type Drop Cable, also known as flat drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers and two dielectric strength members to give high crush resistance. Figure-8 Aerial Drop Cable is self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications. Round Drop Cable usually contains a single bend-insensitive fiber buffered and surrounded by dielectric strength members and an outer jacket, which can provide durability and reliability in the drop segment of the network.
FEATURES
Good mechanical and environmental characteristics; Flame retardant characteristics meets the requirements of relevant standards; The mechanical characteristics meets the requirements of relevant standards; Soft, flexible, easy to splice, and with big capacity data transmission; Meet various requirements of market and clients.

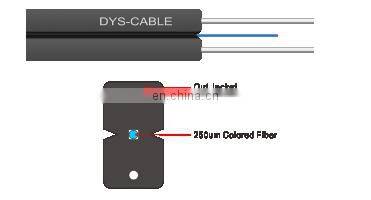

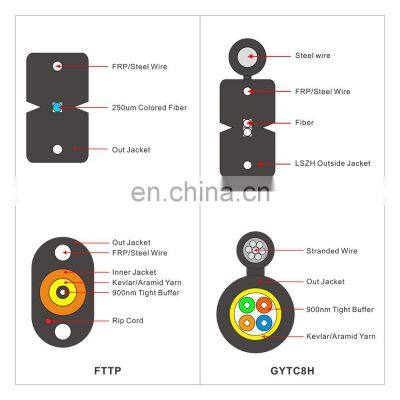

GJXFH Flat Drop Cable

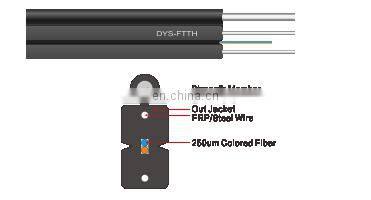

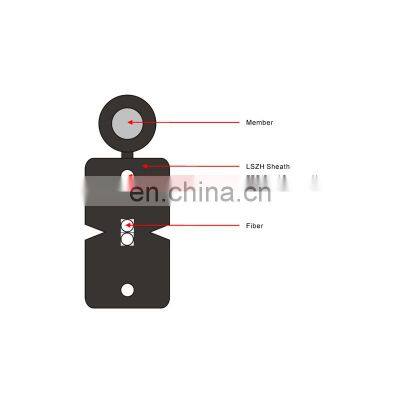

GJYXFCH self-support Flat Drop Cable

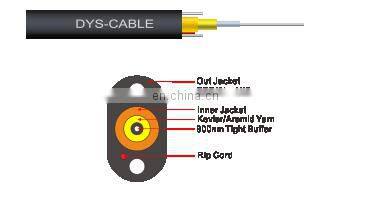

FTTP Tight Buffered Indoor/Outdoor Cable

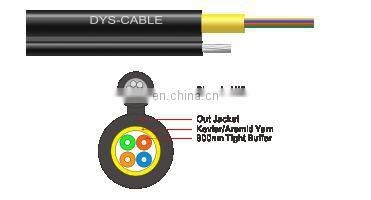

GYTC8H Round Self-Suppot Cable
Fiber count |
1/2/4/6/8/12 |
Color Of fiber |
Blue Orange Green Brown |
Fiber Type |
G652D/G657A1/G657A2 |
Strength member |
Steel wire/FRP/KFRP |
Supporting messenger wire |
1.0MM*x1 steel wire |
Outer sheath |
LSZH Lower smoke zero halogen frame retardant & UV Anti |
Cable Diameter dimensions |
2.0( Height) × 5.0W ± 0.1 mm(width) |
Operation temperature range |
-20 ℃ to + 70 ℃ |
Installation temperature range |
-20 ℃ to + 60 ℃ |
Transport and storage temperature range |
-20 ℃ to + 70 ℃ |
Tension Load (N) |
Short term :800N Long term :500N |
Crush Load(N) |
Long term 1000 N/100mm Short term:2200N/100mm |
Minimal installation bending radius |
30 x OD |
Minimal operation bending radius |
15 x OD |
Cable marking |
The marking length 1meter apart , as required |
