Fiber Optic 1 Core 1km 2km 3km Plywood Drum Ftth Drop Cable Single Mode Indoor Fiber Optic Cable

Name: Fiber Optic 1 Core 1km 2km 3km Plywood Drum Ftth Drop Cable Single Mode Indoor Fiber Optic Cable
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Products Description

Fiber Optic 1 Core 1km 2km 3km Plywood Drum Ftth Drop Cable Single Mode Indoor Fiber Optic Cable

1. The optical fiber unit is positioned in the center.
2. Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
3. Then the cable is completed with a black or white color LSZH sheath.

Applications:

1. Used in indoor cabling, especially used for FTTH
2. Used as access building cable

Features:

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2. Two parallel strength members ensure good performance of crush resistance to protect the fiber
3. Simple structure, light weight and high practicability
4. Novel flute design, easily strip and splice, simplify the installation and maintenance
5. Low smoke, zero halogen and flame retardant sheath
6. Simple structure, light weight and high practicability

Outer Jacket:

Flame resistant PVC or LSZH

Cable code	Fiber Count	Cable diameter mm	Cable weight Kg/km	Tensilse Strength Long/Short term N	Crush Resistance Long/Short term N	Bedning Radius Dynamic/Static mm
GJXFH-1	1	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
GJXFH-2	2	(2.0±0.2)×(3.0±0.2)	8.5	30/60	300/1000	15/30
GJXFH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30
GJXH-1	1	(2.0±0.2)×(3.0±0.2)	9	30/60	300/1000	15/30
GJXH-2	2	(2.0±0.2)×(3.0±0.2)	9.5	30/60	300/1000	15/30
GJXH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30

FTTH DROP CABLE

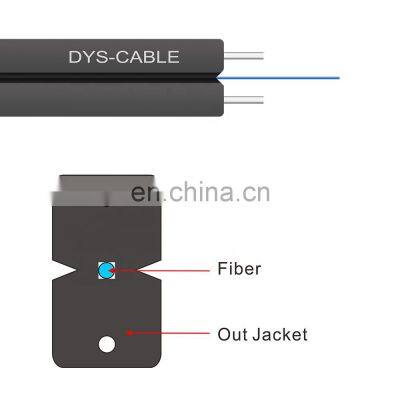

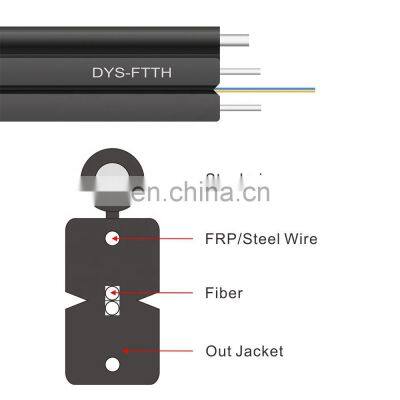

The optical fiber unit is positioned in the centre. Two steel wires or Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.
