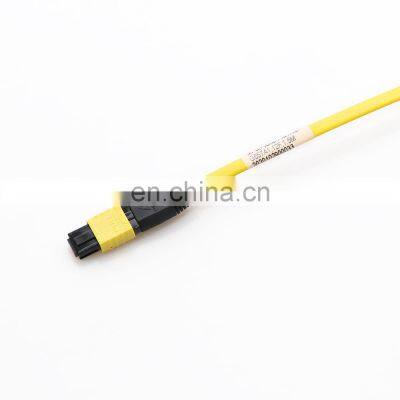

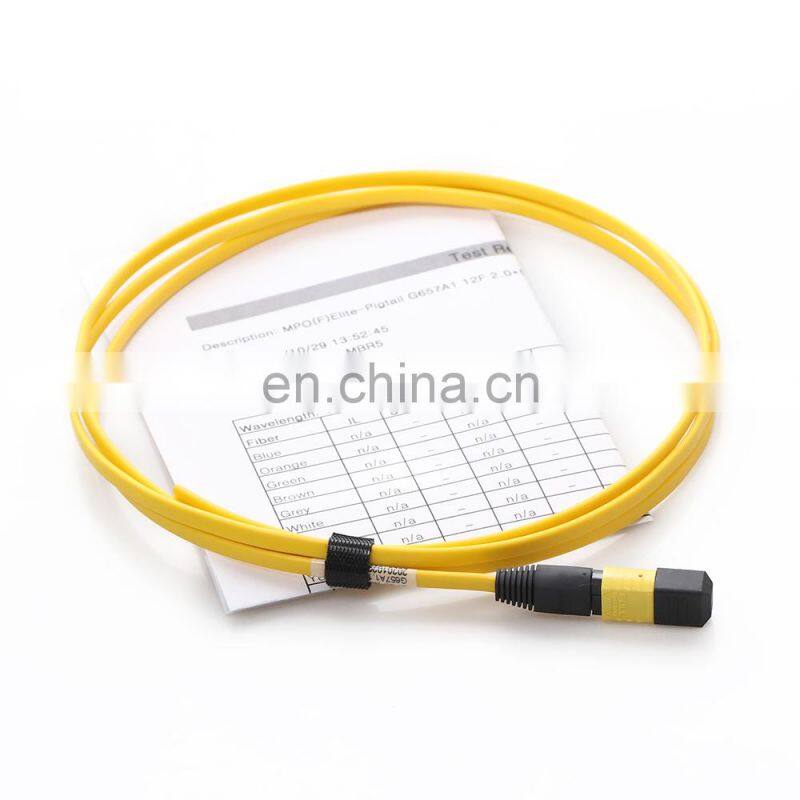

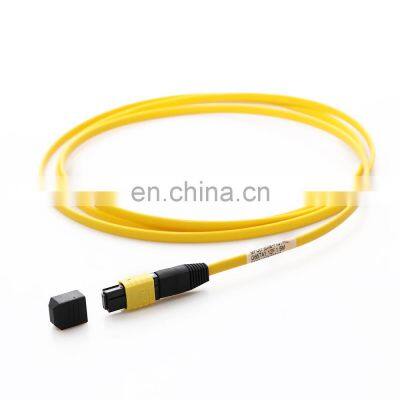

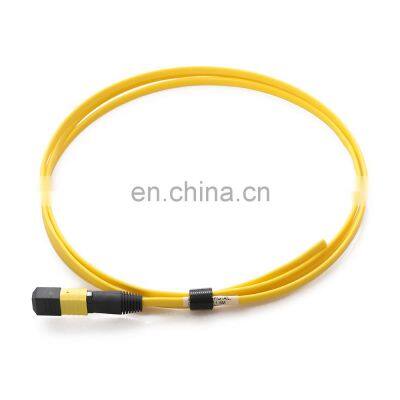

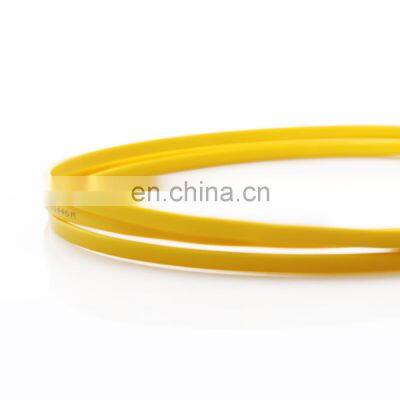

MPO Pigtail 12 Cores Singlemode Nissin MPO Female Connector
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- High Density Fiber Optic OM3 12 core MPO Patch cord 24 core MPO Cable
- FTTH box(ftth-005)/ terminal box ftth 16core, wall mounted
- FTTH fiber terminal box 2 core with SC shutter adapter optical distribution box
- outdoor ftth waterproof plastic rack mounted 16 core ports fiber optic termination box
- 16 Port IP65 Wall mounted Optical Fiber Splitter Termination Box FTTH Drop Cable Distribution Box
- 2 Port Face Plate/FTTH Terminal Box/86 type Wall Mounted indoor FTTH SC fiber optic face plate,fiber mini terminal box
Product Description
Product Description
MPO Pigtail 12 Cores Singlemode Nissin MPO Female Connector
MPO/MTP pigtail assemblies facilitate rapid deployment of high density backbone cabling in data center and other high fiber environment, reducing network in stallation or reconfiguration time and cost.
APPLICATION
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Optical System Access network
Storage area networking fiber channel
High density architectures
FEATURES
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
Product Parameters
Performance Level | Standard | Elite | ||||||||
Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) | ||||
MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 | ||||
24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | ||||||
48F/APC | ≤0.75 | ≥60 | ||||||||
MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |||||
24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||||||
48F/PC | ≤0.50 | ≥20 | ||||||||
LC/SC/FC/ST | SM | ≤0.30 | ≥60 | ≤0.10 | ≥60 | |||||
UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 | ||||||
MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 |
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
Mechanical Properties | ||||||
Item | Criteria | Conformance | ||||
△IL After 50 Matings | MPO/MTP | ≤0.3dB | GR-1435 | |||
△IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 | |||
Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) | |||||
Min Bend Radius (Static ) | 15*OD (Cable Diameter) |
Environment Conditions | ||||||
Item | Criteria | Conformance | ||||
Operation Temperature | -40~60°C | IEC 61753-1 | ||||
Storage Temperature | -45~85°C |
