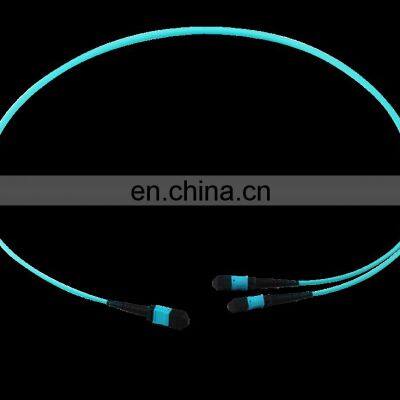

24F MPO Trunk Cable Assemblies Solutions/Fan Out
We supply MTP and MPO fiber optic cables. These are available in female to female or a male to male and male to female configurations. The male version has MTP pins. These can be made with 12 fiber MTP connectors, 24 Fiber MTP connectors, 48 Fiber MTP connector variations. Many additional options and combinations are available. All multi fiber optic cables are customizable.
Quick Details:
Connector End face: MTP end face geometry requirements: EN50377-15-1
Polishing Quality:: Polished end-face quality: IEC61300-3-35
Our MTP patch cables are designed for data center solutions supporting the topologies such as 10
Gigabit Ethernet, Fiber Channel or Infiniband - as specified in the data center standards EN50173-5 and
ISO/IEC 24764.
Specifications
Performance of Assemblies MTP / MPO Termination:
Type/Performance | Singlemode(APC polish) | Multimode(PC / Flat Polish) | ||
| Standard | Elite Low Loss | Standard | Elite Low Loss |
Maximum Insertion Loss | ≤ 0.75dB | ≤ 0.35dB | ≤ 0.60dB | ≤ 0.35dB |
Return Loss | ≥ 50dB | N/A | ||
Operating Temperature | -40°C to 80°C | 40°C to 80°C | ||
Test Wavelength | 1310nm | 850nm | ||
Our advantage and special services:
1.With our own R&D, more completed production lines, advanced production & testing equipments, experienced staffs, we’re confident to provide you satisfied quality and service with competitive price and punctual delivery.
2.Rich experiences in OEM&ODM, besides standard items, we can help you design unique new products and put into production. We care about innovation and would like to change for you and grow up with you.
3.Prompt answer for any question or inquiry within 3 hours
4.Using ERP Systerm to ensure that each link is correct.

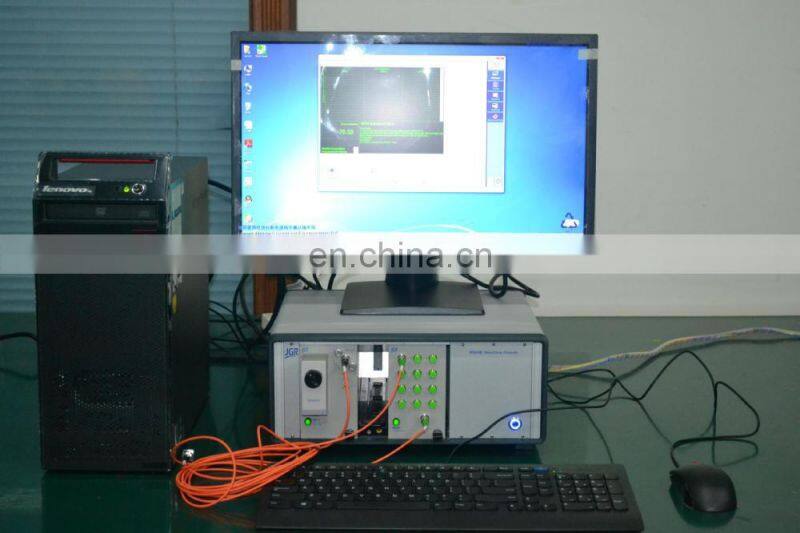

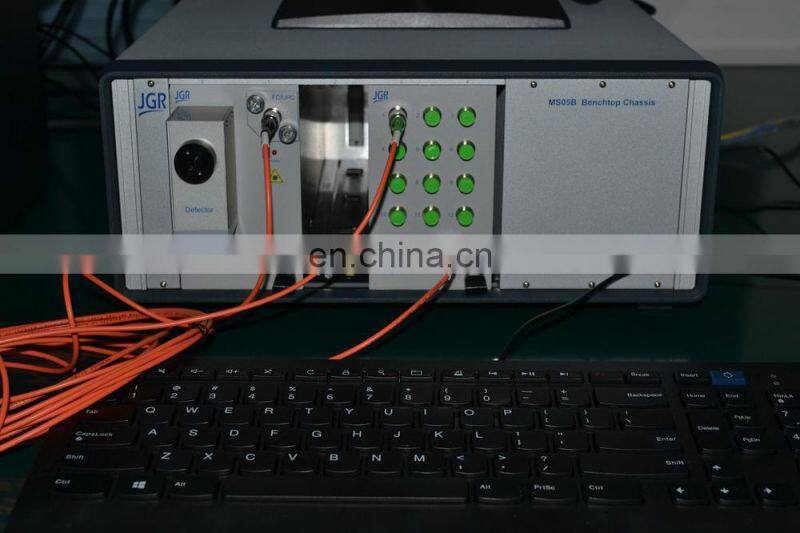

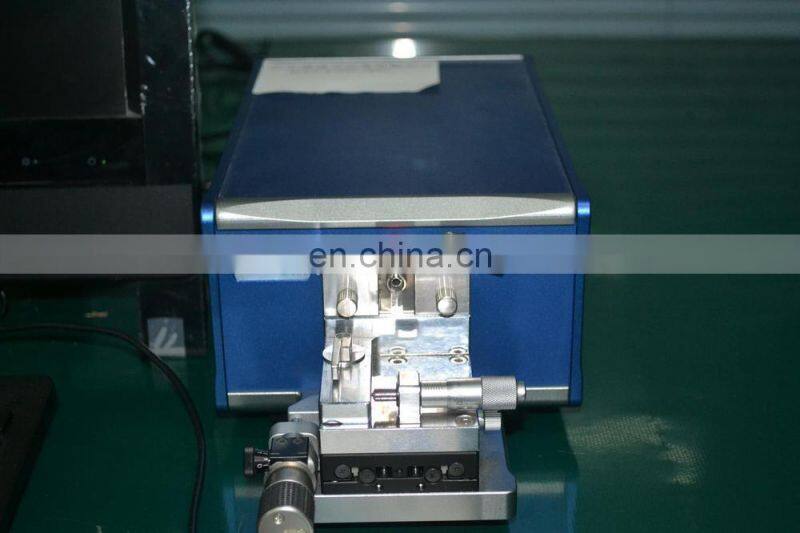

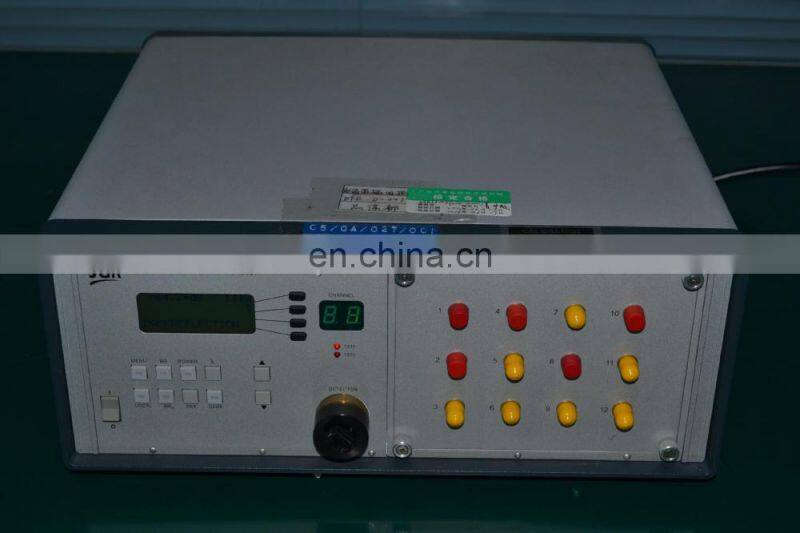

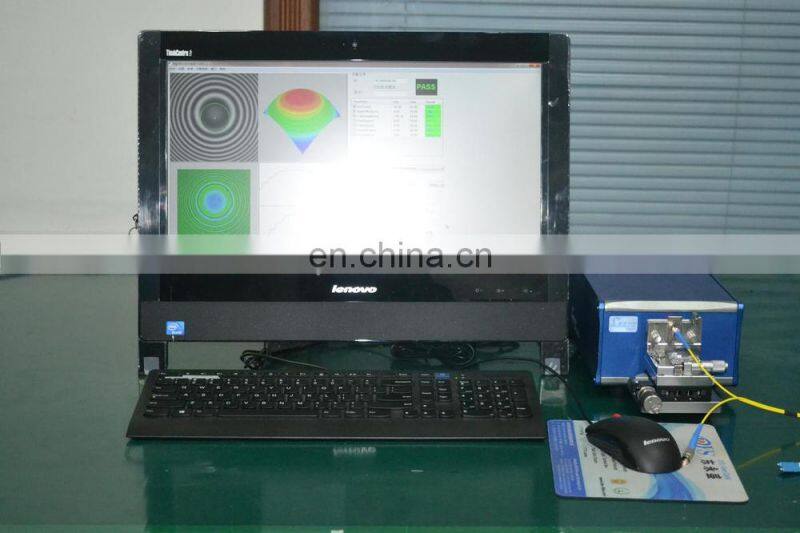

Our Machinery & Testing Equipment
