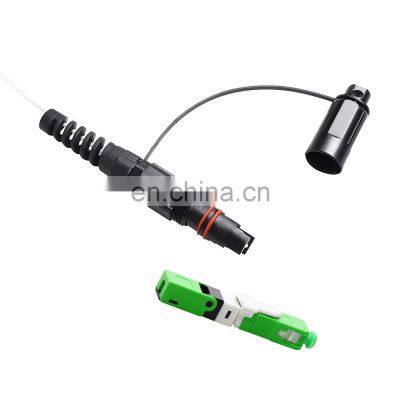

IP68 Waterproof Corning Reinforced OptiTap Adapter Corning Fiber Optic Connector
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SC/APC Field Mount Reinforced Optical Conector Hardened Corning OptiTap ConnectorNegotiableMOQ: 1 -
Outdoor Waterproof BBU RRU FTTX Solutions Mini SC Fast Connector Compatible Huawei or Coring OptiTapNegotiableMOQ: 1
-
FTTH Field Assembly Optical Reinforced Adapter FAC Fast Connector Kit for HuaweiNegotiableMOQ: 1
-
SC/APC Waterproof Fast Connector Reinforced Fiber Optic Connector For HuaweiNegotiableMOQ: 1
-
IP68 Mini SC Waterproof Kit Reinforced Waterproof Optical Connector for HuaweiNegotiableMOQ: 1
Product Description
IP68 Waterproof Corning Reinforced OptiTap Adapter Corning Fiber Optic Connector
Features
1. Compact size,easy to operate,durable.
2. Easy connection to hardended adapters on terminals or closures.
3. Reduce welding,connect directly to achieve interconnection.
4. Spiral clamping mechanism ensures long-term reliable connection.
5. Guide mechanism,can be blinded with one hand,simple and quick,connect and install.
6. Accepts 2.0x3.0mm,3.0mm ,5.0mm Cable Diameters Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.
2. Easy connection to hardended adapters on terminals or closures.
3. Reduce welding,connect directly to achieve interconnection.
4. Spiral clamping mechanism ensures long-term reliable connection.
5. Guide mechanism,can be blinded with one hand,simple and quick,connect and install.
6. Accepts 2.0x3.0mm,3.0mm ,5.0mm Cable Diameters Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.
Applications
1. Fiber optic communications in harsh outdoor environments.
2. Outdoor communications equipment connection.
3. Waterproof fiber equipment SC port.
4. Remote wireless base station.
5. FTTX wiring projiect.
2. Outdoor communications equipment connection.
3. Waterproof fiber equipment SC port.
4. Remote wireless base station.
5. FTTX wiring projiect.
Waterproof Rate |
IP68.(1M ,1hour) |
||||
Applicable optical cable |
2.0x3.0mm,3.0mm ,5.0mm |
||||
Insertion loss |
≤0.50dB |
||||
Return loss |
≥55dB |
||||
End face performance |
Conform to YD T 2341.1-2011 |
||||
Mechanical durability |
1000 times |
||||
Cable tension |
2.0x3.0mm (Ttap Fast Connector) |
≥30N; 2Minute |
|||
2.0mm,3.0mm (Ttap Connector) |
≥30N; 2Minute |
||||
5.0mm (Ttap Connector) |
≥70N; 2Minute |
||||
Torsion of optical cable |
≥15N |
||||
Drop performance |
Allow 10 drops under 1.5m height without abnormal performance |
||||
Operation temperature |
2.0x3.0mm (Ttap Fast Connector) |
-10℃~+70℃ |
|||
2.0mm,3.0mm (Ttap Connector) |
-40℃~+80℃ |
||||
5.0mm (Ttap Connector) |
-40℃~+80℃ |
||||
Hot and humid working environment |
Long term operation under 90% relative humidity ,70 ℃ |
||||
