Optitap Connector Compatible Corning, SC Hardened Connector OptiTap Conector FTTA Patch Cord
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SC Waterproof Outdoor OptiTap Single G657A1 3.0mm Cable Fiber Patch CordNegotiableMOQ: 1 -
Outdoor Fiber Optic H Connector Compatible Corning OptiTap Cable Assembly SC Mini Fast ConnectorNegotiableMOQ: 1
-
FTTH Drop Cable With Mini Waterproof Fiber Optic Patch Cord SC APC ConnectorNegotiableMOQ: 1
-
FTTH Mini SC Waterproof Connectors for Huawei Outdoor Fiber Patch CordNegotiableMOQ: 1
-
Outdoor Waterproof Pre Connectorized Optitap Drop Cable Hardened Optitap Fiber Connector With SST Drop CableNegotiableMOQ: 1
Product Description
Optitap Connector Compatible Corning, SC Hardened Connector OptiTap Conector FTTA Patch Cord

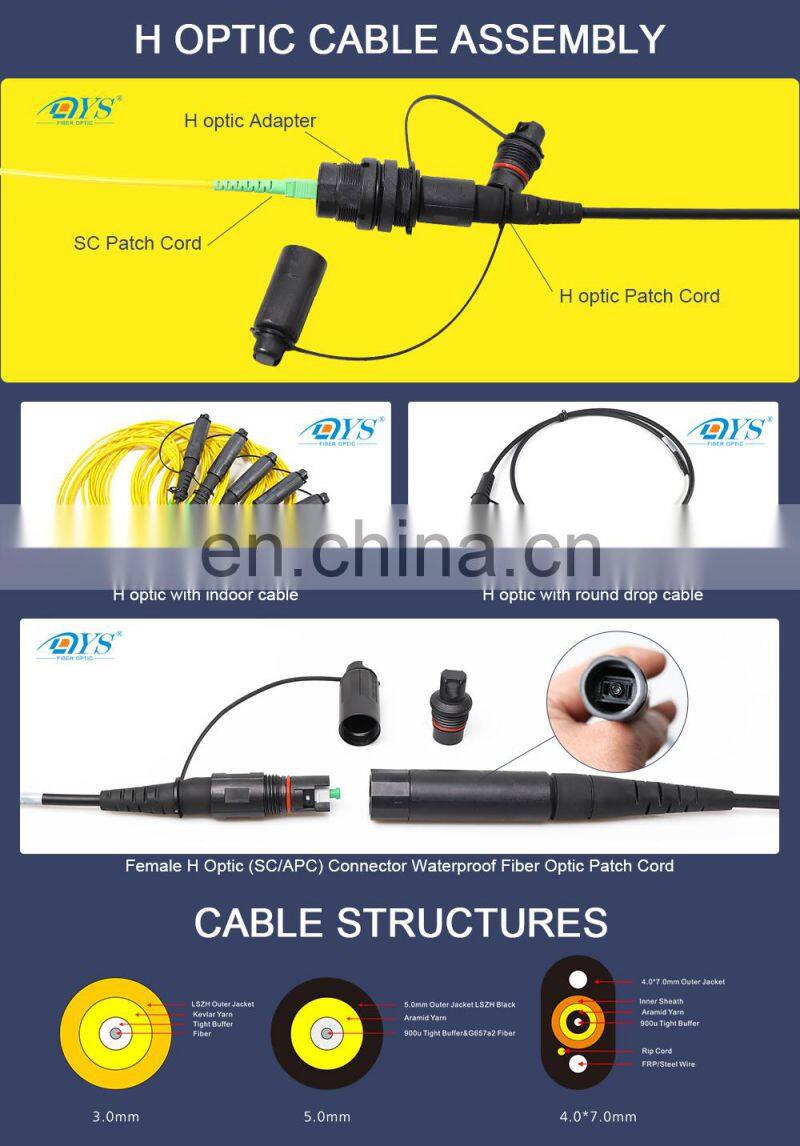

DYS's H opticassemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H optic connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the H optic connector provides an ideal solution for direct burial, conduit, or aerial installations.
Benefits
Allows flexibility to use factory terminated assemblies
Provides superior weather resistance for FTTH and other outdoor applications
Ensures functionality in harsh weather environments
Can be used with industry standard cable designs
Easily installs without special tooling
Threaded style coupling
Provides bend protection for installation and long term use
Features
Single fiber, SC-based connector
Bird proof and rodent resistant
IP68 water and dust protection
Low profile in-line receptacle available
No installation tools required
100 minimum mating cycles
In-line connection available
Operating temperature: -40° to 85°C
Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm
33 lb. axial cable retention (150N)
Applications
FTTH
Outdoor Areas
Harsh Environment
Type |
SM-UPC |
SM-APC |
MM-UPC |
||||||||
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
||||||
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|||||
Return loss |
≥50dB |
≥30dB |
≥30dB |
||||||||
Durability |
500 mating cycles |
||||||||||
Working temperature |
-40 to + 85℃ |
||||||||||
