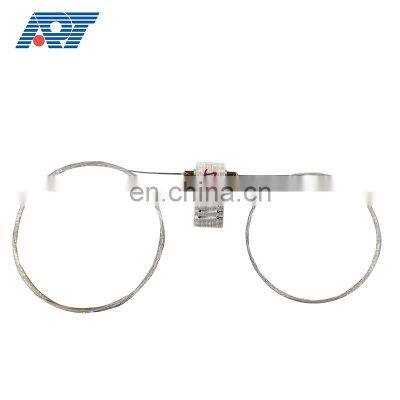

1 x 2 SM 1310nm 1550nm SC Fiber Optical Bypass Switch photo-2
1 x 2 SM 1310nm 1550nm SC Fiber Optical Bypass Switch photo-3

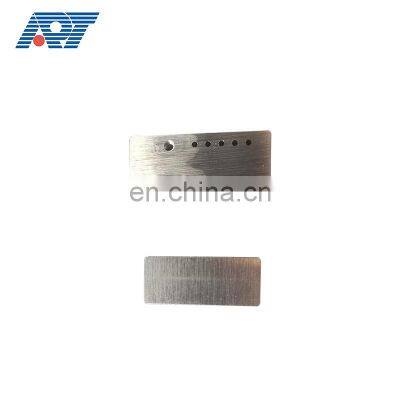

1 x 2 SM 1310nm 1550nm SC Fiber Optical Bypass Switch photo-4

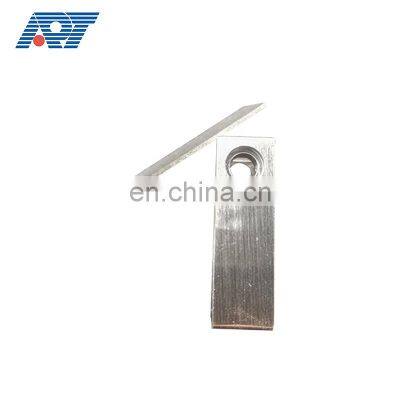

1 x 2 SM 1310nm 1550nm SC Fiber Optical Bypass Switch photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2002
Annual Export Value:
US$1.5 Million - US$2.5 Million
Contact Supplier Request Quote Chat Now
Qingdao Applied Photonic Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch

1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch

Information

1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch



1.Features

♦Low Insertion Loss
♦Wide Wavelength Range
♦Low Crosstalk
♦High Stability, High Reliability

♦Epoxy-free on Optical Path

♦Latching and Non-latching

2.Applications

♦R&D in Laboratory
♦System Monitoring

♦OADM

♦MAN (Metropolitan Area Network)



3.Specifications:

Parameters Unit GY-FSW-1*2
Wavelength Range nm 1260-1650
Test Wavelength nm 1310/1550
Insertion Loss 1,2 dB Type:0.6 Max:0.8
Return Loss 1,2 dB SM≥50
Crosstalk 1 dB SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
Repeatability dB ≤±0.02
Operating Voltage V 3.0 or 5.0
Durability Cycles ≥10 Million
Switching Time ms ≤8
Optical Power mW ≤500
Operating Temperature ℃ -20~+70
Storage Temperature ℃ -40~+85
Relative Humidity % 5~95
Weight g 14
Dimension mm (L)27.0*(W)12.0*(H)8.2±0.2 or Customer design
Note: 1.Within operating temperature and SOP.2.Excluding Connectors

4. Pin Configurations:

Features

==1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch

Related Products
1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch
Production Process

1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch

Customer Reviews

1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch

Company Profile

1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch





Certificate

1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch1 x 2 SM 1310nm 1550nm SC Fiber optical bypass switch

Q1. Can I have a sample order for this product?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 1-2 days, mass production time needs 1-2 weeks



Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q4: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our formal products.



Q5: What about delivery time?

 A: 1) Samples: within one week.

    2) Goods: 15-20 days usually.

Welcome OEM&ODM
