High isolation and return loss fwdm 1310nm 1490nm 1550nm optical filter

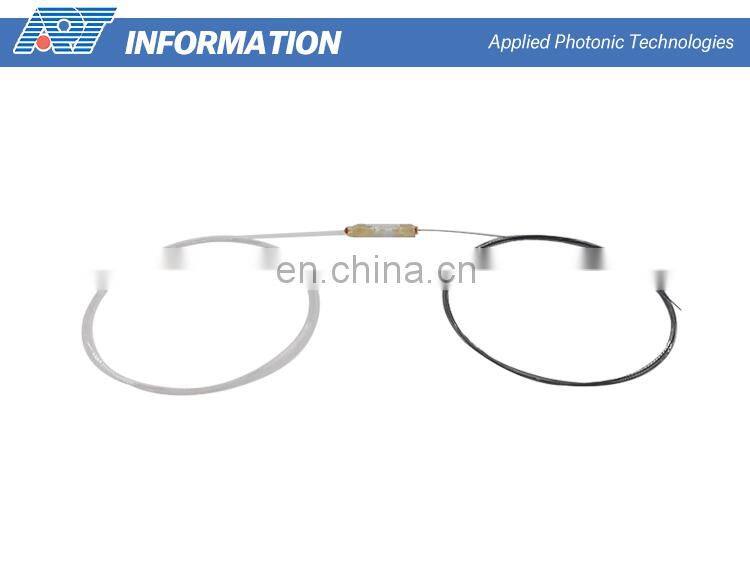

Information

High isolation and return loss fwdm 1310nm 1490nm 1550nm optical filter

1.Product Introduction

Dense wavelength division multiplexer(DWDM) is based on the membrane filter technique and proprietary non-flux metal bonding micro-optics packaging design, within ITU wavelengths to achieve uplink and downlink. It provides ITU channel center wavelength, low insertion loss, high channel isolation, low power consumption, wide passband characteristics, no glue loop, excellent thermal stability and reliability and so on. In a telecommunications network system, it can be used for uplink or downlink optical signal.

2.Features

♦Low Insertion Loss
♦High Channel Isolation
♦Optical path epoxy free
♦Excellent thermal stability and reliability
♦Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard

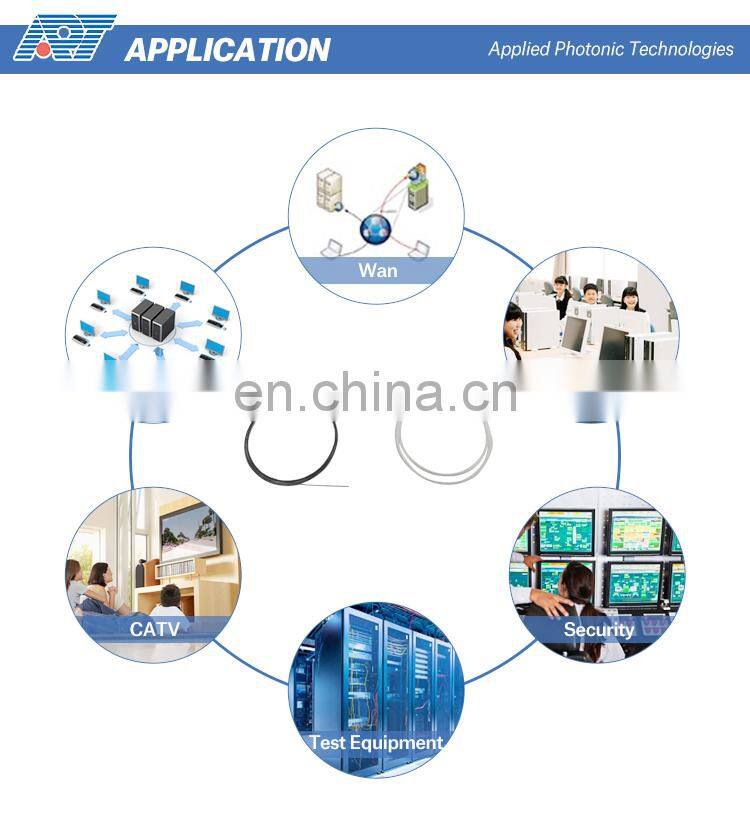

3.Application

♦DWDM Network
♦Add/Drop System

♦CATV Fiberoptic System

♦Metro/Access Network

♦Fiber Optical Amplifier

4.Technical Specifications:

Specification
Unit
Paramenter
Operating Wavelength
nm
1270-1610
Wavelength bandwidth
nm
±5
Fiber Type
--
50/125 or 62.5/125
Grade
--
P
Insertion Loss @ 23℃
dB
<0.15
Isolation @ 23℃
dB
>20
Polarization Dependent Loss
dB
<0.05
Return Loss
dB
>55
Power Handling
mW
300
Pigtail Type
mm
0.250
Connector Type
--
NA
Fiber length
m
1.0
Operating Temperature
℃
-20~70
Storage Temperature
℃
-40~85
Package Dimentsion
mm
3X54 or OEM



5.Order Information:

Configuration Channel No. Channel Pigtail Type Fiber length Dimensio(mm) Connector
M=Mux D=Demux

04=4 Channel

08=8 Channel

16=16 Channel



N=N Channel

27=1270nm

47=1470nm

49=1490nm

 …

61=1610nm

SS=special…

0=250um

1=900um

2=2.0mm
3=3.0mm

 1=1m
2=1.5m
3=others

1=L100 x W80 xH10

2=L120xW80xH18

3=19 1U Rack

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC

5=other

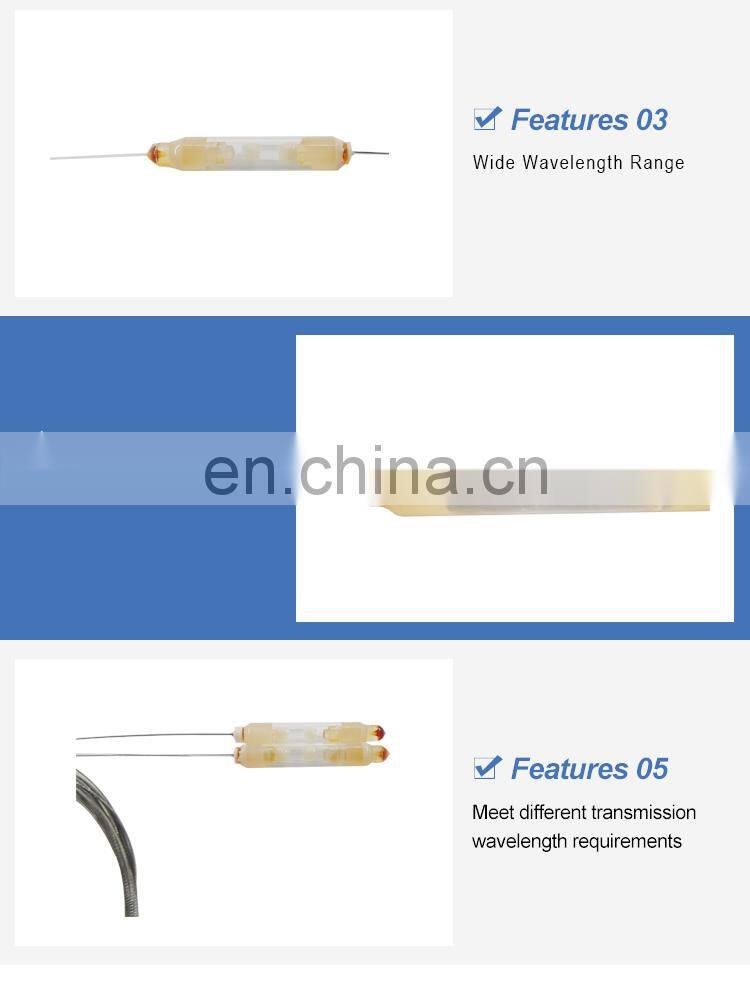

Features
