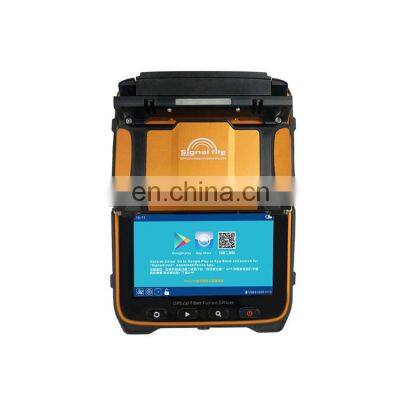

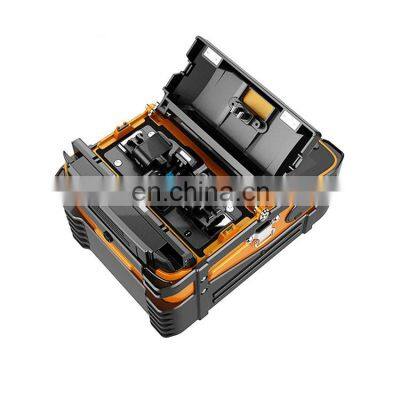

AI-9 Automatic Multi-language Intelligent FTTH Fiber Optic Splicing Machine Fiber Optical Fusion Splicer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tanghu Fiber Cleaver Fiber Cutter S06 for AI7C AI8CNegotiableMOQ: 1 -
Optic Fiber Drop Cable Protection Sleeve Cable Heat Shrinkable Tube Fusion Box SquareNegotiableMOQ: 1
-
NK5000 Touch Screen 32/30 dB OTDR 1310/1550nm/fiber Tester Built in FLS OPM VFL FC/SC/ST the Best PriceNegotiableMOQ: 1
-
NK6000 OTDR Fiber Optic Cable Tester EXFO Otdr 1310/1550/1625nm 35/33DBNegotiableMOQ: 1
-
Tanghu FTTH Fiber Optic Tool Kit Set Equipment With OPM VFL Cleaver for Optic CableNegotiableMOQ: 1
Recommend Products
Product Description

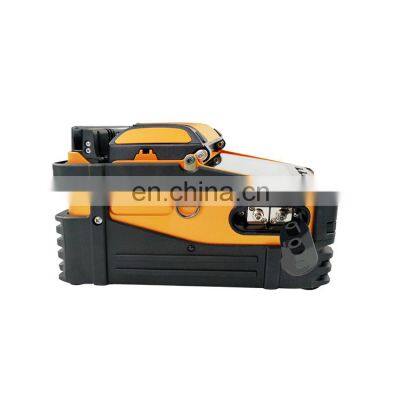

AI-9 Automatic Multi-language Intelligent FTTH Fiber Optic Splicing Machine Fiber Optical Fusion Splicer
Discription:Fusion Splicing is a preferred way to join two fibers together by using heat. Whether the fiber was broken or not long enough, a fusion splicer will make your job easier. Splicing fiber optic cable is a fairly simple procedure. Prepared fiber ends are placed in the splicer and automatically aligned and then fused together. This method ensures greater reliability with less light being scattered or reflected back by the splice and with the splice itself being as strong as the original optical fiber.
Process:
The process of fusion splicing normally involves heat to melt or fuse the ends of two optical fibers together. The splicing process begins by preparing each fiber end for fusion.
1, Stripping the fiber Stripping is the act of removing the protective polymer coating around optical fiber in preparation for fusion splicing.
2, Cleaning the fiber The customary means to clean bare fibers is with alcohol and wipes.
3, Cleaving the fiber The fiber is then cleaved using the score-and-break method so that its end-face is perfectly flat and perpendicular to the axis of the fiber.
4, Splicing the fibers Current fusion splicers are either core or cladding alignment. Using one of these methods the two cleaved fibers are automatically aligned by the fusion splicer in the x,y plane, then are fused together.
Fiber alignment |
Core/cladding alignment / Manual alignment |
Splicing time |
5S |
Heating time |
15S |
Heating mode |
Automatic heating(Preheating) |
Focus mode |
Six motors Auto focus |
Applicable Fibers |
SM(G.652&G.657),MM(G.651),DS(G.657), NZDS(G.655) |
Control technology |
Real-time control and calibration of fusion ARC |
Return loss |
Better than 60DB |
Fiber diameter |
Cladding Diameter:80-150μm Coating Diameter:100-1000μm |
Fiber Cleave Length |
Coating less than 250μm:8-16mm Coating less than 250-1000μm:16mm |
Software updates Length |
Automatically update, Update by a key |
Boot time |
1 second |

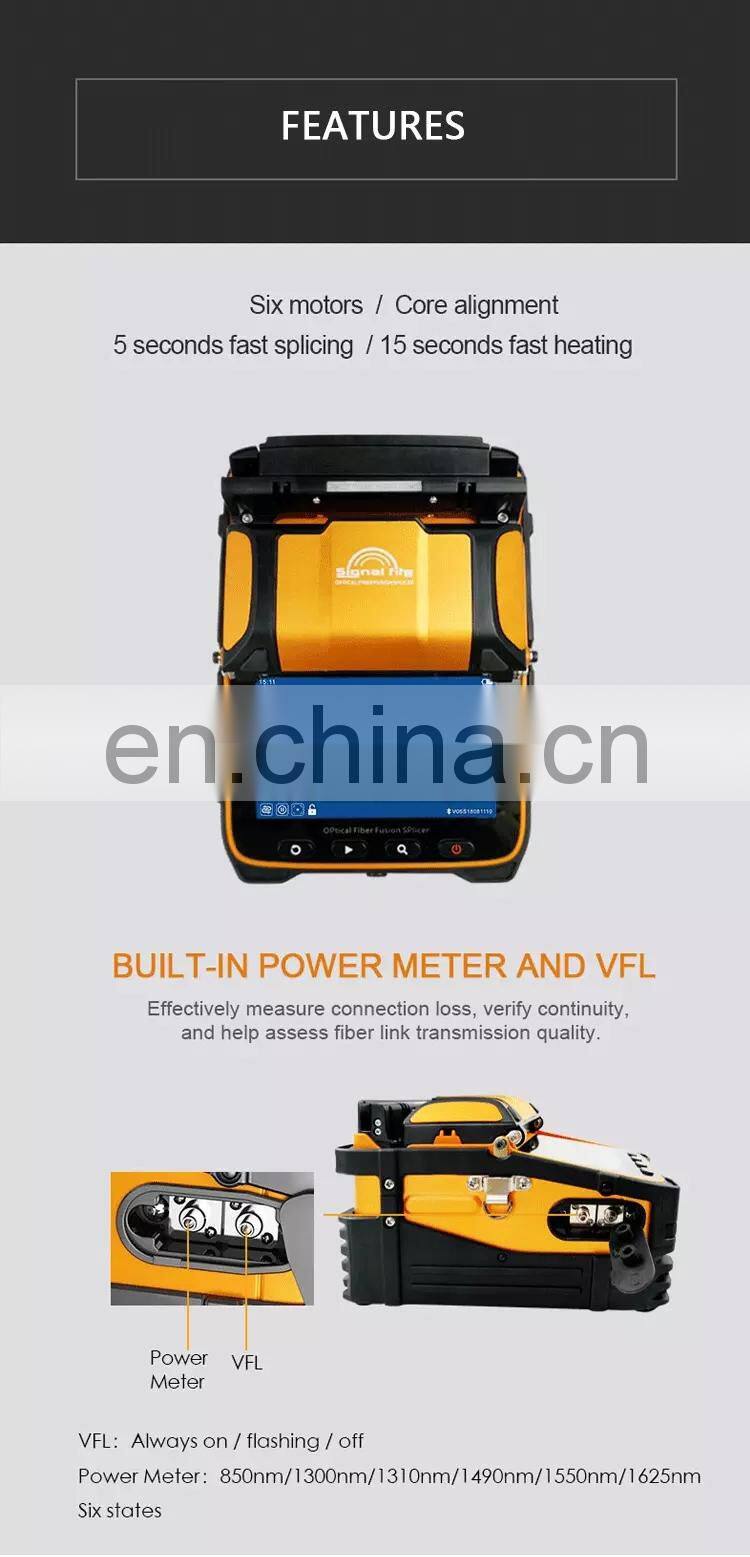

Visual Fault Locator |
Power:15mw,2hzflashing And Constantly Bright Mode |
Built-in lighting |
easy for night operation |
Tension Test |
Standard 2N |

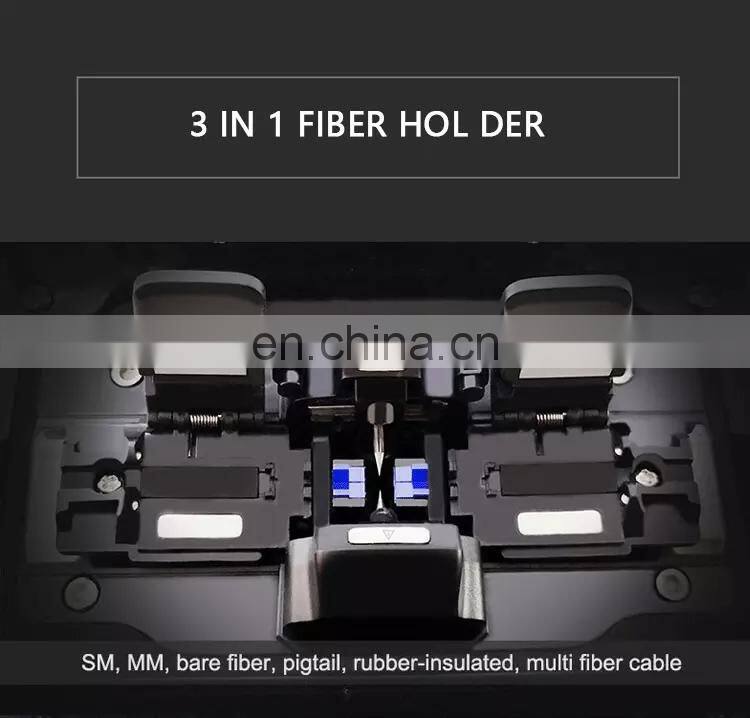

Fiber holders |
3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
Magnification |
300 for X or Y view, 150 for X or Y view |

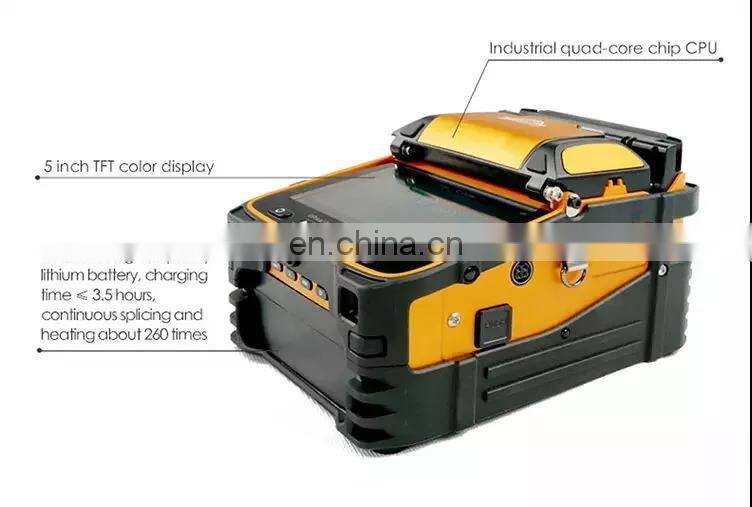

Screen |
5 inch TFT color display |
Splicing Mode |
Normal / high precision splicing |
Splicing method |
Fully automatic,Step by step splicing |
Built-in battery |
7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 200 times |
Power supply |
Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery power |
Operating Conditions |
Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation) Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s |
Shrinkable tube |
60mm,50mm,40mm,25mm |
Product protection |
Waterproof, dust proof, shock-resistant |
Optical Power Meter |
Wavelength:850nm,1300nm,1310nm,1490nm, 1550nm,1625nm Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range) |
Company Introduction
Shanghai Tanghu Optical Fiber Equipment Co., Ltd. is a high-tech enterprise specializing in the production of optical communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000 m2, with more than 500 employees and annual sales of more than 300 million RMB.
Company has roboticized production and testing equipment, since its inception, the company has been committed to product innovation and R&D, the products include cable, patch cord, optical transceiver, POE switch, OPM, VFL, optical fiber fusion splicer, optical divider, fiber boxes, etc., which are widely used in the plot construction of campus network, security, monitoring, radio and television transmission, FTTH, etc.
The products are exported in large quantities to more than 60 countries and regions including the USA, Australia, India, Russia, Brazil and South Africa and so on, providing innovative technologies and product solutions for global telecom operators and enterprise network customers, and enabling users around the world to enjoy all-round communication such as voice, data, multimedia and wireless broadband.
Exhibition
Product Shipping
Shippment
-By sea
-By plane
-By International couriers, TNT, DHL, FEDEX, UPS, etc.
Standard Export carton
1.Inner Package: Neutral brown cartons.
2.Outer Package: Internationally standard package cartons with 5
layers and thinplastic film surround the cartons.
layers and thinplastic film surround the cartons.
Customer feedback
FAQ
Q: What about delivery time?
A: We have big warehouses in Shanghai, also in Shenzhen factory, providing instant delivery service. Most products can be
delivered within 3~7 days.
Q: What is your warranty period?
delivered within 3~7 days.
Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.
Q: Why should we buy from you?
Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satisfied until customers are.
Q: Can you provide OEM, ODM service?
Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shenzhen and Xuzhou, we can make products according to your requirements.
Q: Do you provide free samples?
A: Yes, but the buyer should bear the shipping costs.
