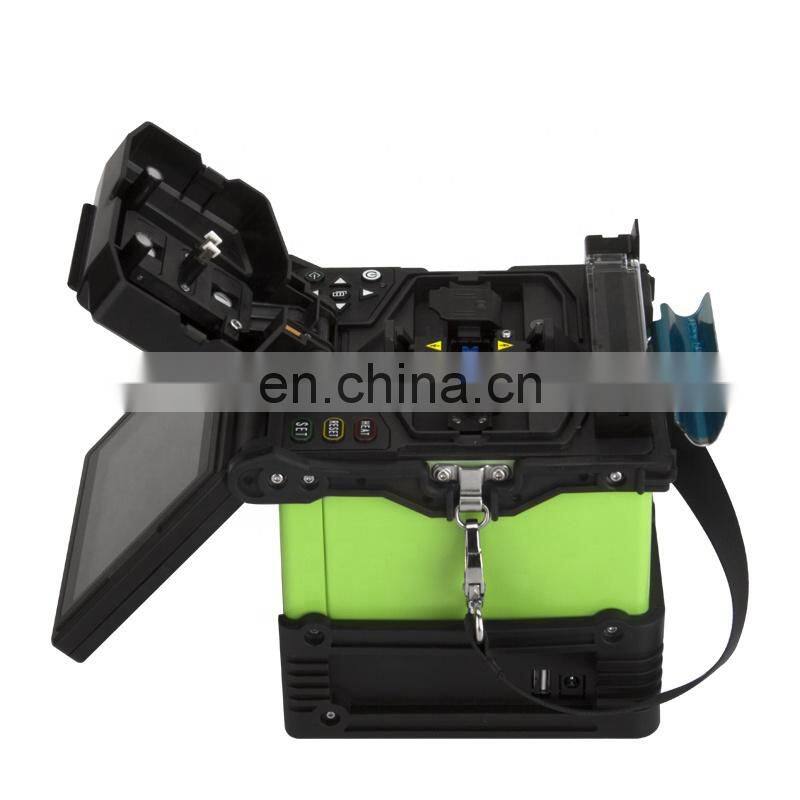

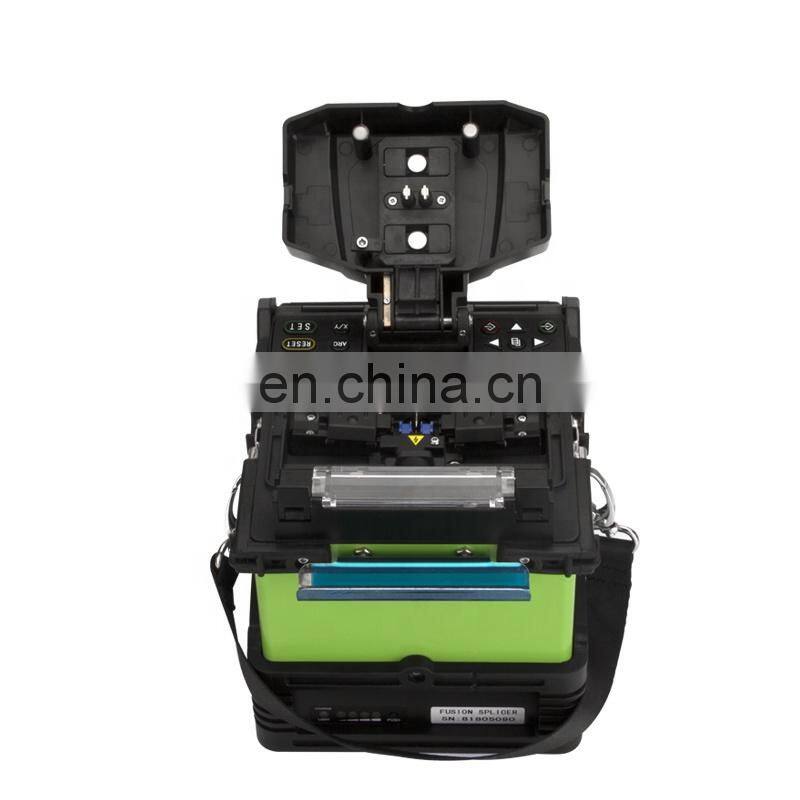

Intelligent SM MM FTTH Core Alignment Fiber Optic Splicing Machine Fusion Splicer
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Hot Sales Low Price Fiber Optic Cable Cleaver FC-6S Fiber Cutting Tools Optical Fiber Cleaver
-
Fiber Cutting Tool Optical Fiber Cleaver Telecommunication Stripping Tool Fiber Optic Cleaver Cutter
-
16 Surface Blade FTTH High Precision HS 30 FTTH Fiber Optical Cutter, Fiber Optic Cleaver
-
Cheap Plastic Fiber Cleaver FTTH Fiber Cutting Knife Optic Fiber Cleaver
-
High Precision FTTH Cable Stripper Tool Three Hole Miller CFS-3 Optical Fiber Miller Stripper
-
Second Generation Handheld High-altitude Automatic Fiber Optic Strapping Machine
Product Description
Product Description

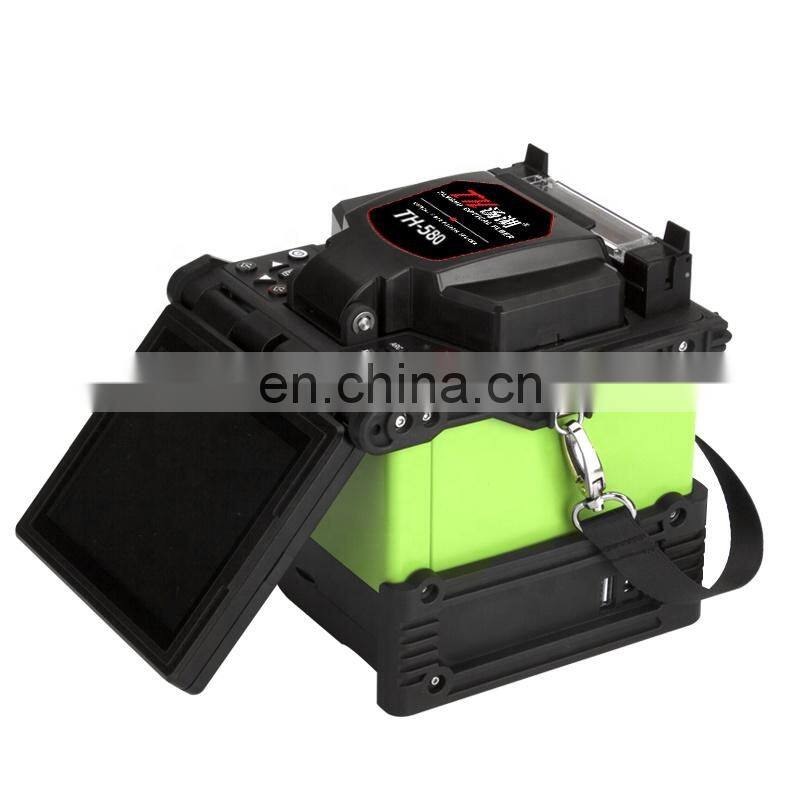

Product model | TH-580 |
Applicable fiber | SM, MM , DS, NZDS |
Cladding diameter | 80~150um |
Coating diameter | 160~900um |
Typical splice loss | SM: 0.02dB; MM: 0.01dB; DS: 0.04dB; NZDS0.04dB |
Return loss | Better than 60dB |
Cutting length | 10~16mm (coated fiber diameter <250um); 16mm (coated fiber diameter 250~1000um) |
Fusion procedure | 40 groups |
Operating mode | manual, automatic |
Heating | with automatic heating |
Typical welding time | 7 seconds |
Heating time | 60mm, 40mm and other length heat shrinkable sleeve, heating time is 26 seconds |
Optical fiber amplification and display | X, Y single fiber display amplification 250 times, X, Y fiber simultaneous double display amplification 125 times |
Optical fiber observation mode | Dual high sensitivity camera, 4.3 inch 480 x 280 resolution color liquid crystal display |
Welding result record | 4000 sets of welding records can be stored |
Splice loss | Automatic evaluation |
Pull test | 1.8~2.2N |
Operation interface | GUI graphical menu interface, easy to operate |
Battery capacity | 5800mH, 180 times welding, heating, pluggable replacement, real-time power monitoring |
Power supply | external adapter, input: AC100-240V (50/60HZ), output: DC11~13.5V |
Electrode life | more than 4,000 times can be welded, the user can easily replace the electrode |
Interface | USB2.0 interface, export fusion record, software upgrade |
Operating environment | Altitude: 0~5000m; Relative humidity: 0~95% Temperature: -10°C~+50°C; Wind speed: 15m/s |
Volume/weight | 149mm (L) × 120mm (W) × 127mm (H) / 1.9Kg (including battery) |
Process:
The process of fusion splicing normally involves heat to melt or fuse the ends of two optical fibers together. The splicing process begins by preparing each fiber end for fusion.
1, Stripping the fiber
Stripping is the act of removing the protective polymer coating around optical fiber in preparation for fusion splicing.
2, Cleaning the fiber
The customary means to clean bare fibers is with alcohol and wipes.
3, Cleaving the fiber
The fiber is then cleaved using the score-and-break method so that its end-face is perfectly flat and perpendicular to the axis of the fiber.
4, Splicing the fibers
Current fusion splicers are either core or cladding alignment. Using one of these methods the two cleaved fibers are automatically aligned by the fusion splicer in the x,y plane, then are fused together.
The process of fusion splicing normally involves heat to melt or fuse the ends of two optical fibers together. The splicing process begins by preparing each fiber end for fusion.
1, Stripping the fiber
Stripping is the act of removing the protective polymer coating around optical fiber in preparation for fusion splicing.
2, Cleaning the fiber
The customary means to clean bare fibers is with alcohol and wipes.
3, Cleaving the fiber
The fiber is then cleaved using the score-and-break method so that its end-face is perfectly flat and perpendicular to the axis of the fiber.
4, Splicing the fibers
Current fusion splicers are either core or cladding alignment. Using one of these methods the two cleaved fibers are automatically aligned by the fusion splicer in the x,y plane, then are fused together.
