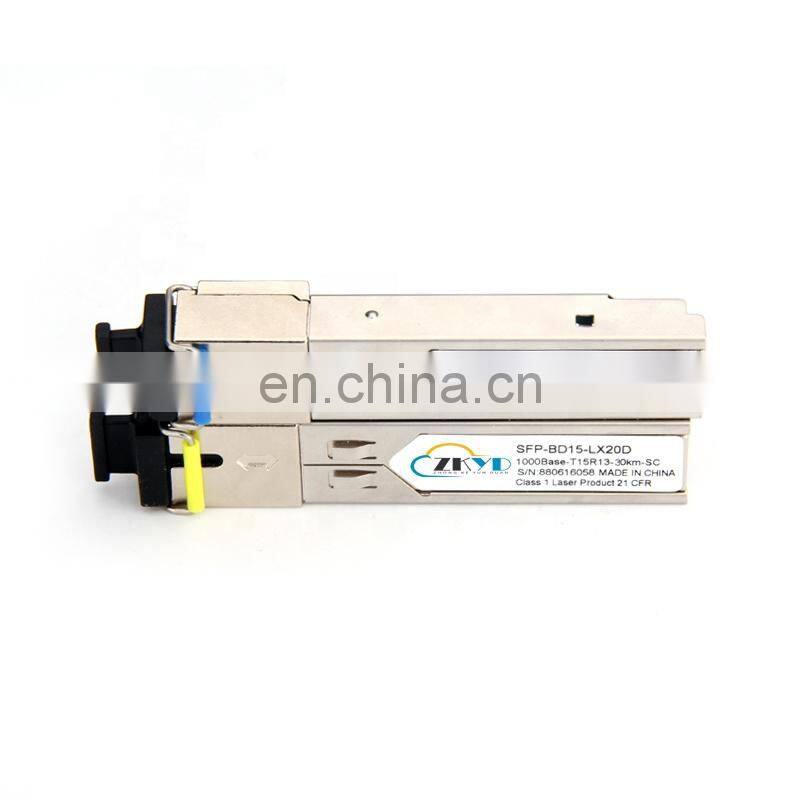

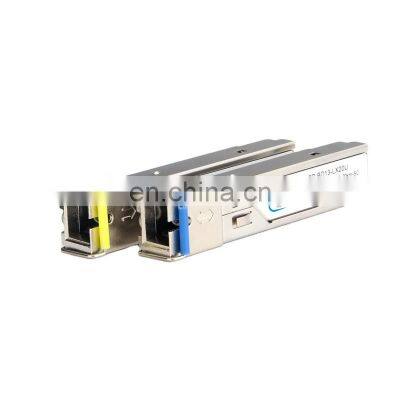

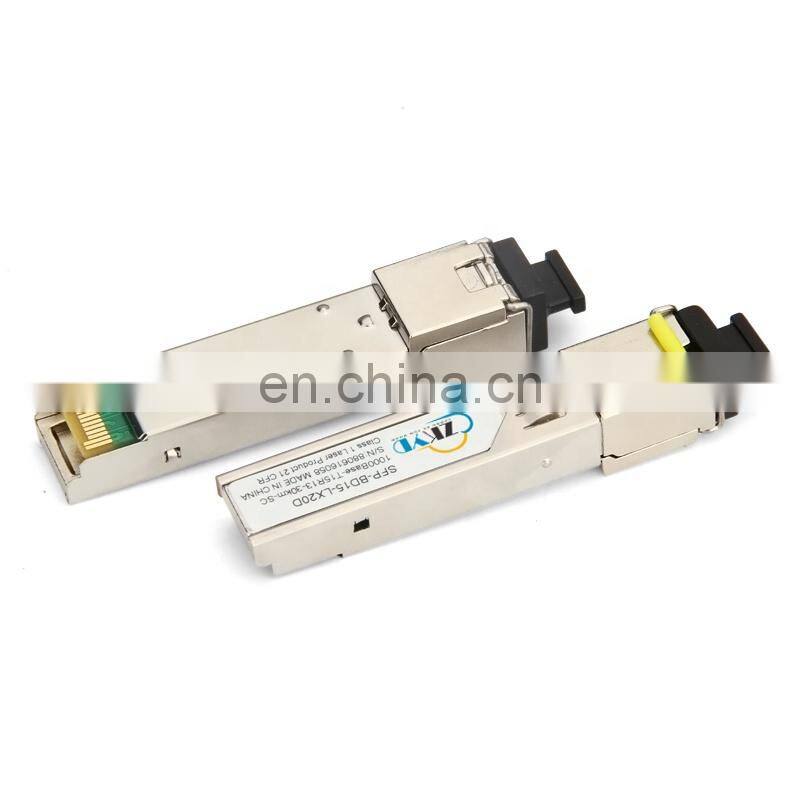

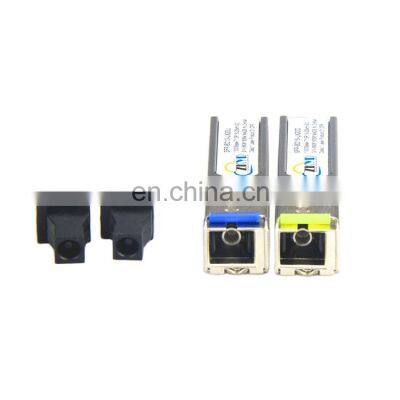

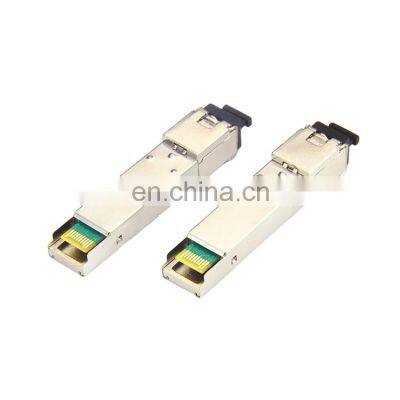

Tanghu 1.25G SFP Module Compatible Huawei 3km SC Connector OEM Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OEM 10KM 100M Single Mode LC Connector SFP Optical Transceiver Module SFP ModuleNegotiableMOQ: 1 -
DDM 20KM Fiber Optical Transceiver Module 155M LC Single Fiber SFP ModuleNegotiableMOQ: 1
-
DDM 80KM 100M Single Mode LC Connector SFP Optical Fiber ModuleNegotiableMOQ: 1
-
3KM Single Mode LC Connector 1000M SFP Fiber Optical Transceiver ModuleNegotiableMOQ: 1
-
1000M Single Mode LC Connector 20KM SFP Fiber Optic Transceiver ModuleNegotiableMOQ: 1
Related Products
Product Description
Description
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 3km
transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance
preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
Product Specifications
1.Dual data-rate of 1.25Gbps/1.063Gbps operation
2.1310nm FP laser and PIN photodetector for 3/20/30/40/60/80km transmission
3.Compliant with SFP MSA and SFF-8472 with simplex SC receptacle
4.Digital Diagnostic Monitoring: Internal Calibration or External Calibration
5.Compatible with SONET OC-24-LR-1
Applications
1.Gigabit Ethernet
2.Fiber Channel
3.Switch to Switch interface
4.Switched backplane applications
5.Router/Server interface
6.Other optical transmission systems
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 3km
transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance
preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
Product Specifications
1.Dual data-rate of 1.25Gbps/1.063Gbps operation
2.1310nm FP laser and PIN photodetector for 3/20/30/40/60/80km transmission
3.Compliant with SFP MSA and SFF-8472 with simplex SC receptacle
4.Digital Diagnostic Monitoring: Internal Calibration or External Calibration
5.Compatible with SONET OC-24-LR-1
Applications
1.Gigabit Ethernet
2.Fiber Channel
3.Switch to Switch interface
4.Switched backplane applications
5.Router/Server interface
6.Other optical transmission systems
Data Rate |
1.25G |
Fiber Mode |
Single Mode Fiber (SMF) |
Types of Interface |
SC |
Types of Laser |
FP/DFB |
Operating Temperature |
Standard 0~70°C |
Operating Humidity |
0%~90% RH (non condensing) |
Transmission distance |
3/20/30/40/60/80kmkm |
Modes of Communications |
Simplex |
Wavelength |
1310nm TX/1550 nm RX |
Condition |
New |
Receiver Sensitivity |
<-15dBm |
Extinction Ratio |
>9dB |
Saturated Optical Power |
-3dBm |
Power Consumption |
<3W |
Weight |
0.024kg |
Power Supply |
+3.3V |
Hot Pluggable Times |
200 |
Average Output Power |
-9 ~ -3dBm |
