Tanghu Gigabit Unmanaged Ethernet Network Switch 4 Port POE+2 Uplink Port, 96W POE Switch 4Port
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tanghu Fiber Cleaver CT-30 High Precision Cleaver With Case Optical Fiber Cutting Knife CT-30A Fiber CleaverNegotiableMOQ: 1 -
Tanghu Fiber Optic Media Converter GS-03AB Half/Full PCB Single Mode Single Fiber Gigabit Transceiver PCBNegotiableMOQ: 1
-
Tanghu 16 Core Fiber Optical Terminal CTO/NAP Distribution Box With 1x16 PLC SplitterNegotiableMOQ: 1
-
Gigabit Media Converter Fiber Optic Media Converter 16 Fiber Port 2 RJ45 Ethernet PortNegotiableMOQ: 1
-
Fiber Media Converter 100Mbps 1 Fiber Port +1/8RJ45 Port Fiber To Ethernet ConverterNegotiableMOQ: 1
Recommend Products
Product Description

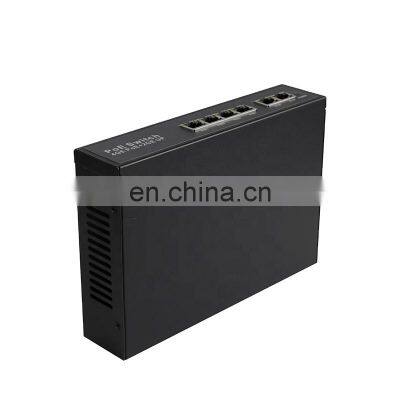

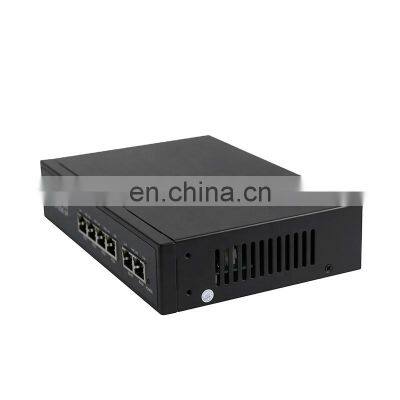

Gigabit Unmanaged Ethernet Network Switch 4 Port POE+2 Uplink Port, 96W POE Switch 4Port
This product Wanglink 10/100/1000Mbps 4 port Ethernet Network POE Switch with 2*10/100/1000Mbps UPLINK ,including 1-4ports support PoE,IEEE 802.3af /at ISO, Single port power supply power 15.4W, total power 65W, you can choose to insert 4 ip-based ieee802.af/at international standard POE devices, like a wireless access point AP or a network surveillance camera based on IP, can automatically detect PoE terminal device compatible with IEEE802.3af/at, the maximum performance can be 10 times faster than fast Ethernet by standard 5 Ethernet cable transmission power and data, and reduces energy consumption by 60% and is very convenient and flexible. Integration of data exchange and Ethernet power supply reduces cable and eliminates the need to connect power outlets and minimize installation costs. With 2 uplink connections, it is good for network development.
Product description |
10/100/1000Mbps 4 Port + 2 *1000 Mbps Uplink Poe Switch |
Port description |

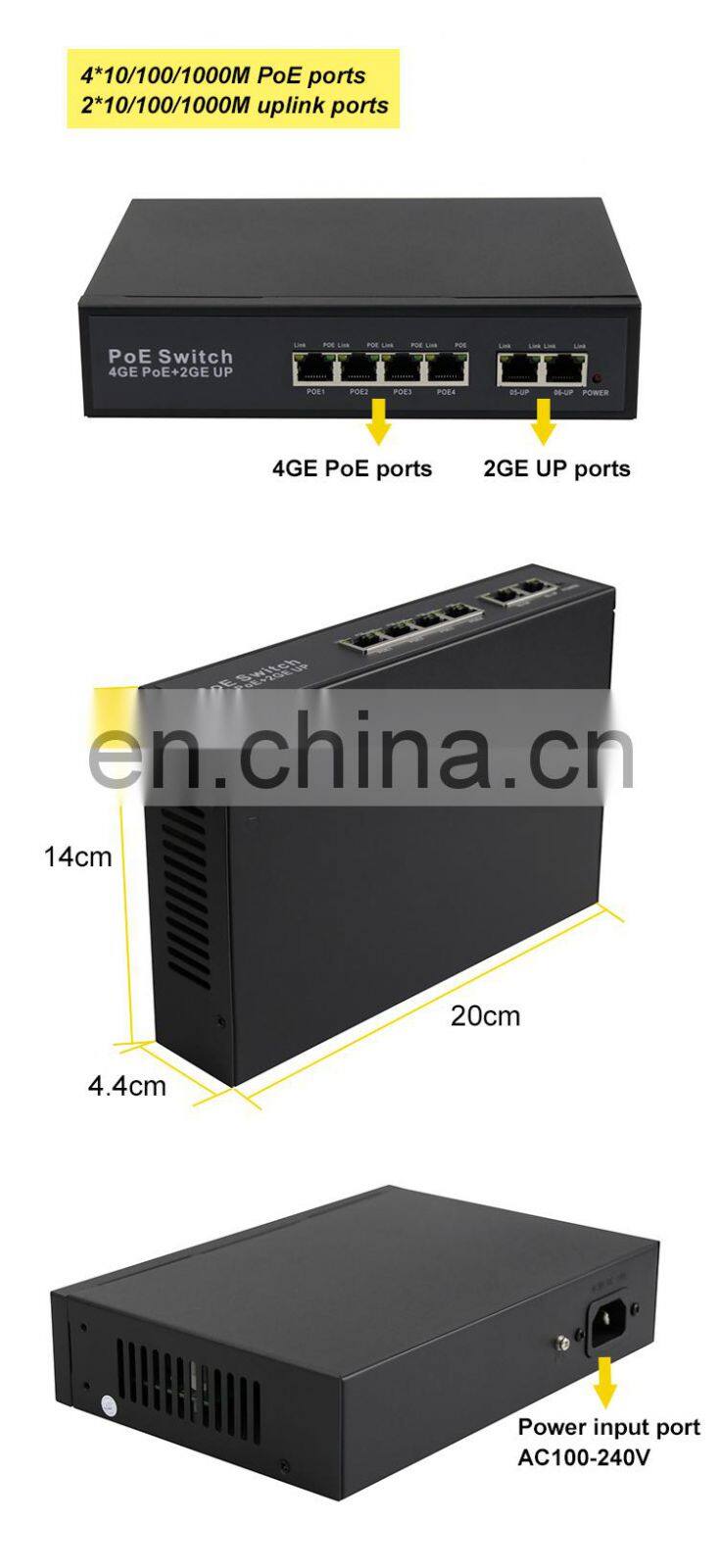

4*10/100/1000Mbps POE port (all ports support MDI/MDIX self-adapting)2*1000Mbps uplink port |
Network media |
100BASE-TX: ≥Cat 5 UTP (≤100m) |
Network protocol |
IEEE 802.3 I; The IEEE 802.3 u; IEEE 802.3 x Flow Control; IEEE 802.1 af/at DTE Power via MDI |
Performance |
Backboard bandwidth: 8Gbps (no blocking) Forwarding mode: store forward (can be forwarded by line speed) MAC address list: 1K |
POE |
1-4 port support for IEEE802.3 af (15.4 W) network power supply Standard: IEEE 802.3 af/at (port output power 15.4 W Type: terminal straddle method (optional middle span) Port: 15.4w per port power (IEEE802.3 af/at) Wire core: 1/2 +, 3/6 - line pair (optional: 4/5 +, 7/8-line pair) Total power for POE: 125W |
Environmental |
Working temperature: - 30 ° C ~ 70 ° C Storage temperature: - 35° C ~ 75 ° C Working humidity: 5% ~ 95%(no condensation) |
Power supply |

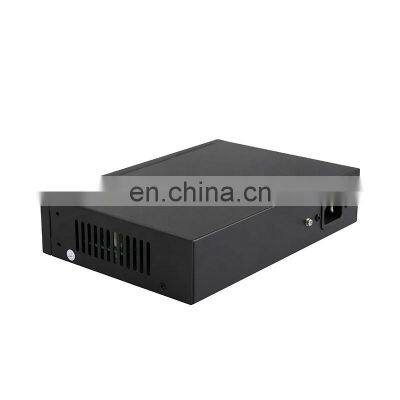

External power adapter (input AC100-240V 50/60Hz; output 52V 1. 8A / 52V 2. 3A) |
Weight |
NW: 0.9KG GW: 1.2KG |
Company Introduction
Shanghai Tanghu Optical Fiber Equipment Co., Ltd. is a high-tech enterprise specializing in the production of optical communication products, with nearly 20 years of industry experience.At present, the company has passed the ISO9001 certification,has two production bases in Shenzhen and Xuzhou, and has a large modern warehouse in Shanghai.The company covers an area of 20000 m2, with more than 500 employees and annual sales of more than 300 million RMB.
Company has roboticized production and testing equipment, since its inception, the company has been committed to product innovation and R&D, the products include cable, patch cord, optical transceiver, POE switch, OPM, VFL, optical fiber fusion splicer, optical divider, fiber boxes, etc., which are widely used in the plot construction of campus network, security, monitoring, radio and television transmission, FTTH, etc.
The products are exported in large quantities to more than 60 countries and regions including the USA, Australia, India, Russia, Brazil and South Africa and so on, providing innovative technologies and product solutions for global telecom operators and enterprise network customers, and enabling users around the world to enjoy all-round communication such as voice, data, multimedia and wireless broadband.
Exhibition
Product Shipping
Shippment
-By sea
-By plane
-By International couriers, TNT, DHL, FEDEX, UPS, etc.

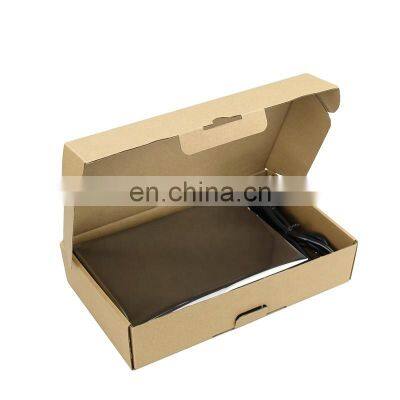

Standard Export carton
1.Inner Package: Neutral brown cartons.
2.Outer Package: Internationally standard package cartons with 5
layers and thinplastic film surround the cartons.
layers and thinplastic film surround the cartons.
Customer feedback
FAQ
Q: What about delivery time?
A: We have big warehouses in Shanghai, also in Shenzhen factory, providing instant delivery service. Most products can be
delivered within 3~7 days.
Q: What is your warranty period?
delivered within 3~7 days.
Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.
Q: Why should we buy from you?
Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satisfied until customers are.
Q: Can you provide OEM, ODM service?
Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shenzhen and Xuzhou, we can make products according to your requirements.
Q: Do you provide free samples?
A: Yes, but the buyer should bear the shipping costs.
Q: What is your payment terms?
A: We accept Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
A: We accept Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.
