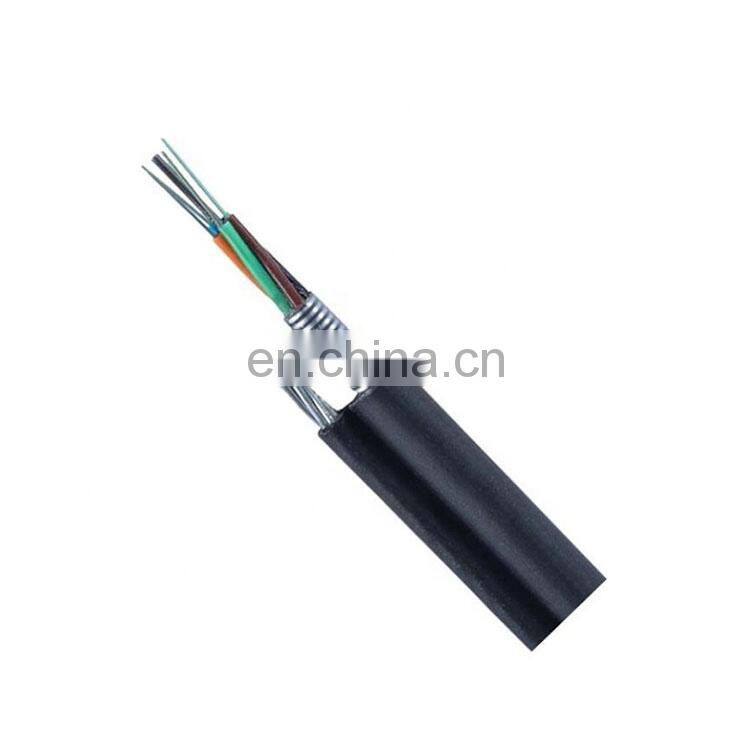

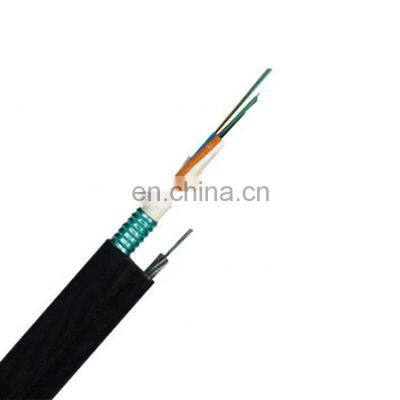

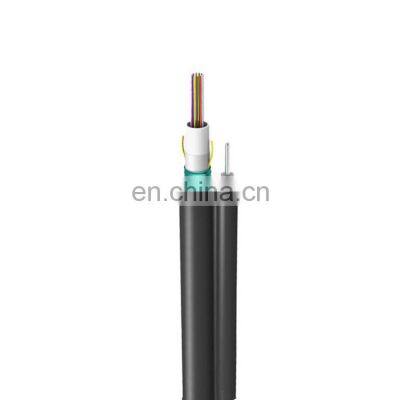

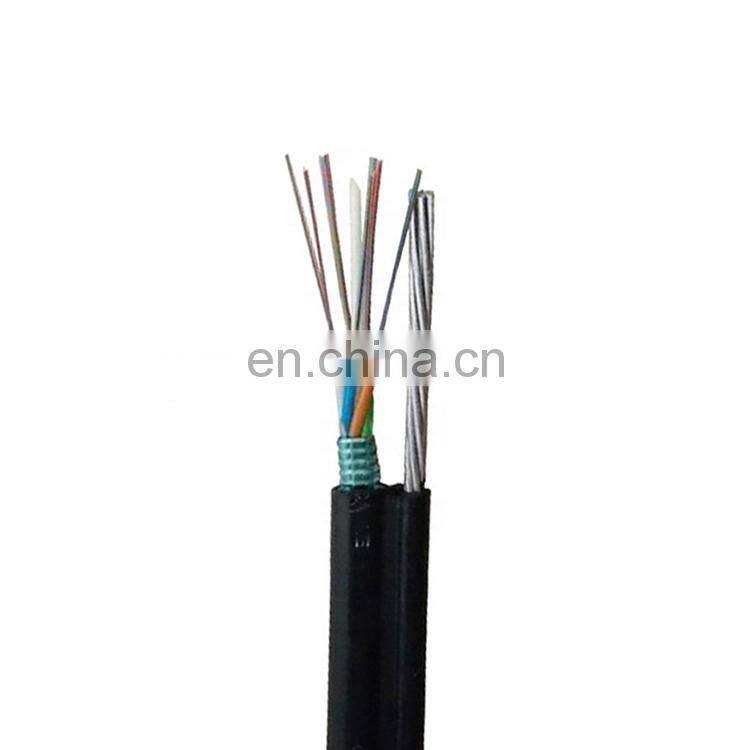

GYTC8Y Self-supporting Figure 8 Outdoor Aerial 12 Core Single Mode Fiber Optic Cable Price per Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2014
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GYTC8S Outdoor G652d Overhead Self-supporting Figure 8 SM/MM 6 Core Fiber Optic CableNegotiableMOQ: 1 -
Using In The Coal Mine Flexible Abrasion Resistance Rubber Mining Trailing CableNegotiableMOQ: 1
-
Manufacturer Competitive Price Underground Insulated Flexible Coal Mine CableNegotiableMOQ: 1
-
Manufacturer Price Outdoor Single Mode Armoured SM GYXTW 4 Core Fiber Optic CableNegotiableMOQ: 1
-
Overhead Stranded Stainless Steel Tube OPGW Cable 24 Core Single Mode Fiber Optic CableNegotiableMOQ: 1
Related Products
Product Description
Cable model | Number of fibers | Number of casings | Number of filled ropes | Cable diameter mm | Cable weight Kg/Km | Allowable tensile force long/short Term N | Allow crushing force long/short Term N | Bending radius static / dynamic mm |
GYTA-2~6 Core | 2~6 | 1 | 4 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYTA-8~12 Core | 8~12 | 2 | 3 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYTA-14~18 cores | 14~18 | 3 | 2 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYTA-20~24 cores | 20~24 | 4 | 1 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYTA-26~30 cores | 26~30 | 5 | 0 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYTA-32~36 cores | 32~36 | 6 | 0 | 10.2 | 104 | 1000/3000 | 300/1000 | 10D/20D |
GYTA-38~48 cores | 38~48 | 4 | 1 | 11.0 | 117 | 1000/3000 | 300/1000 | 10D/20D |
Product description:
The GYXTC8S cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a
water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a
water-blocking material is added between the steel strip and the loose tube to ensure compact and longitudinal water blocking of
the cable, and the steel strand is integrated into an 8-shaped type. Inside the polyethylene sheath.
The GYXTC8S cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a
water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a
water-blocking material is added between the steel strip and the loose tube to ensure compact and longitudinal water blocking of
the cable, and the steel strand is integrated into an 8-shaped type. Inside the polyethylene sheath.
Features:
· The steel wire strand has a very high tensile strength, which is convenient for self-supporting overhead laying and reduces
installation costs.
· Has good mechanical and temperature properties.
· The loose tube material itself has good hydrolysis resistance and high strength.
· The tube is filled with a special grease to protect the fiber.
· Double coated steel strip (PSP) improves the moisture resistance of the cable.
· Small diameter, light weight and easy to lay.
· Long delivery length and low price.
· The steel wire strand has a very high tensile strength, which is convenient for self-supporting overhead laying and reduces
installation costs.
· Has good mechanical and temperature properties.
· The loose tube material itself has good hydrolysis resistance and high strength.
· The tube is filled with a special grease to protect the fiber.
· Double coated steel strip (PSP) improves the moisture resistance of the cable.
· Small diameter, light weight and easy to lay.
· Long delivery length and low price.
Advantages:
Has good mechanical properties and temperature characteristics.
The loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.
The specially designed compact cable structure effectively prevents the casing from retracting.
The PE jacket has excellent UV radiation resistance.
The following measures are taken to ensure the waterproof performance of the cable.
Single wire center reinforcement core.
The loose tube is filled with a special waterproof compound.
Full core filling.
Plastic coated aluminum tape (APL) moisture barrier.
Has good mechanical properties and temperature characteristics.
The loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.
The specially designed compact cable structure effectively prevents the casing from retracting.
The PE jacket has excellent UV radiation resistance.
The following measures are taken to ensure the waterproof performance of the cable.
Single wire center reinforcement core.
The loose tube is filled with a special waterproof compound.
Full core filling.
Plastic coated aluminum tape (APL) moisture barrier.
