Product description:

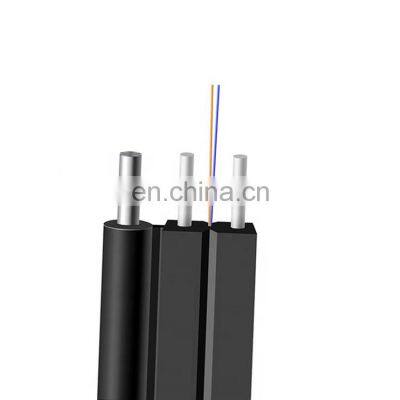

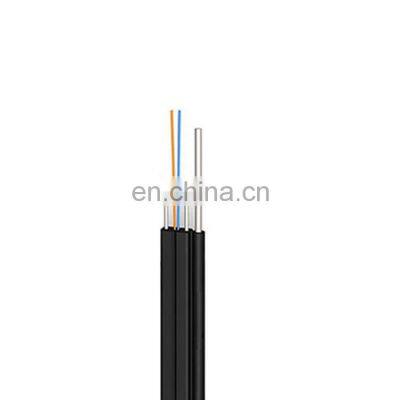

The FTTH indoor cable is centered on the optical communication unit, with two parallel non-metallic reinforcing elements (FRP) placed on both sides, and finally, a black or colored low-smoke halogen-free sheath is extruded.
Features:
· Special bend-resistant fiber to provide greater bandwidth and enhance network transmission characteristics;
· Two parallel FRPs make the cable have good compression resistance and protect the fiber;
· The cable has a simple structure, light weight and strong practicability;
· Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;
· Low-smoke, halogen-free flame retardant jacket, environmentally friendly.
|
Fiber count |
1/2/4/6/8/12 |
|
Color Of fiber |
Blue Orange Green Brown |
|
Fiber Type |
G652D/G657A1/G657A2 |
|
Strength member |
Steel wire/FRP/KFRP |
|
Supporting messenger wire |
1.0MM*x1 steel wire |
|
Outer sheath |
LSZH Lower smoke zero halogen frame retardant & UV Anti |
|
Cable Diameter dimensions |
2.0( Height) × 5.0W ± 0.1 mm(width) |
|
Operation temperature range |
-20 ℃ to + 70 ℃ |
|
Installation temperature range |
-20 ℃ to + 60 ℃ |
|
Transport and storage temperature range |
-20 ℃ to + 70 ℃ |
|
Tension Load (N) |
Short term :800N Long term :500N |
|
Crush Load(N) |
Long term 1000 N/100mm Short term:2200N/100mm |
|
Minimal installation bending radius |
30 x OD |
|
Minimal operation bending radius |
15 x OD |
|
Cable marking |
The marking length 1meter apart , as required |
