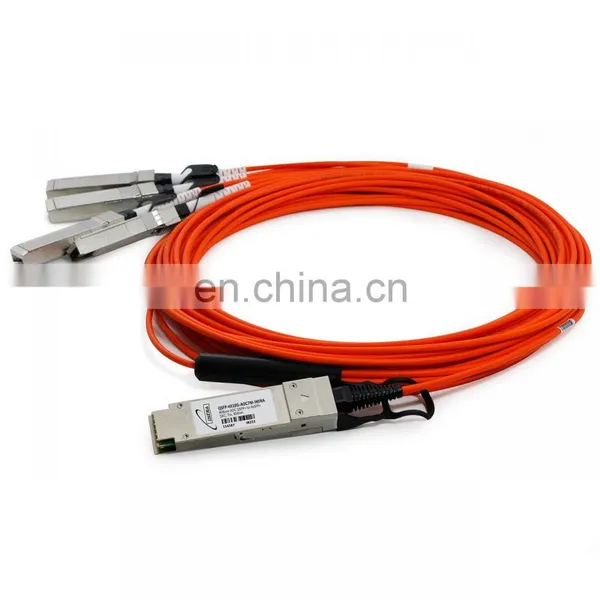

Help Center3.0M QSFP28 OM3 AOC Active Optical Cable 2M 5M 10M Customized QSFPS Fiber Cable
Related Products
-
10G Copper SFP 10G SFP+ Module With RJ45 ConnectorNegotiableMOQ: 1 -
1.25Gbps 1000BASE-PX20 1490/1310nm GEPON OLT SFP Class B+NegotiableMOQ: 1
-
Mikrotik Compatible 10G Copper SFP 10GBASE-T RJ45 SFP ModuleNegotiableMOQ: 1
-
1.25G SFP MMF 850nm 550m Module Compatible MikrotikNegotiableMOQ: 1
-
1.25G/2.5G Epon Onu Sfp Transceiver 1310nm-Tx/1490nm-Rx 20km, WDM SC Port, Class B+, With MAC InsideNegotiableMOQ: 1

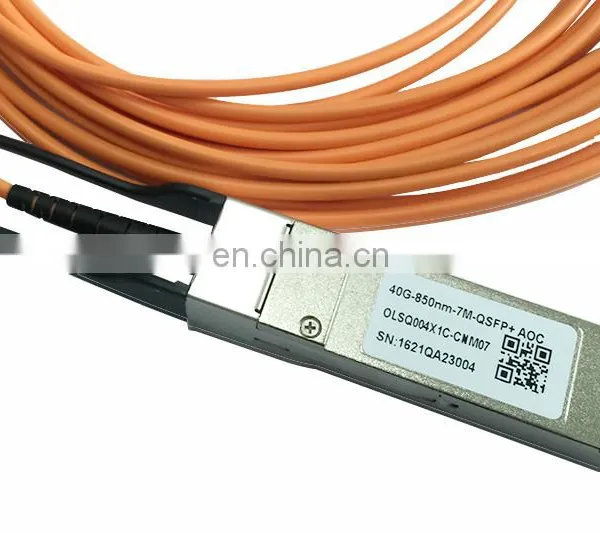

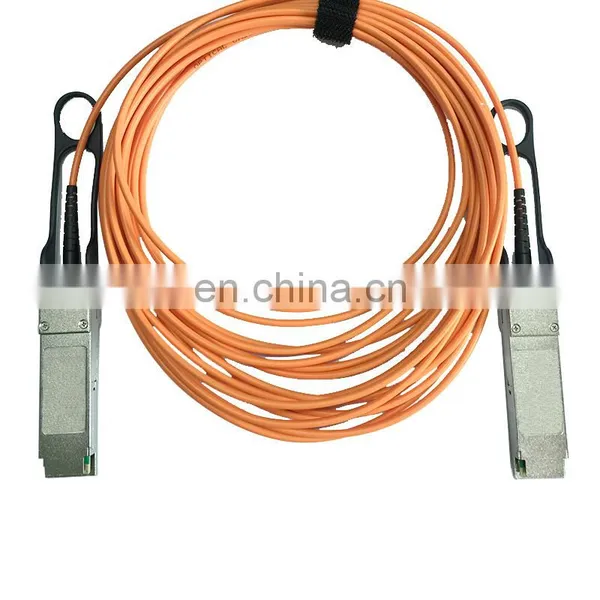

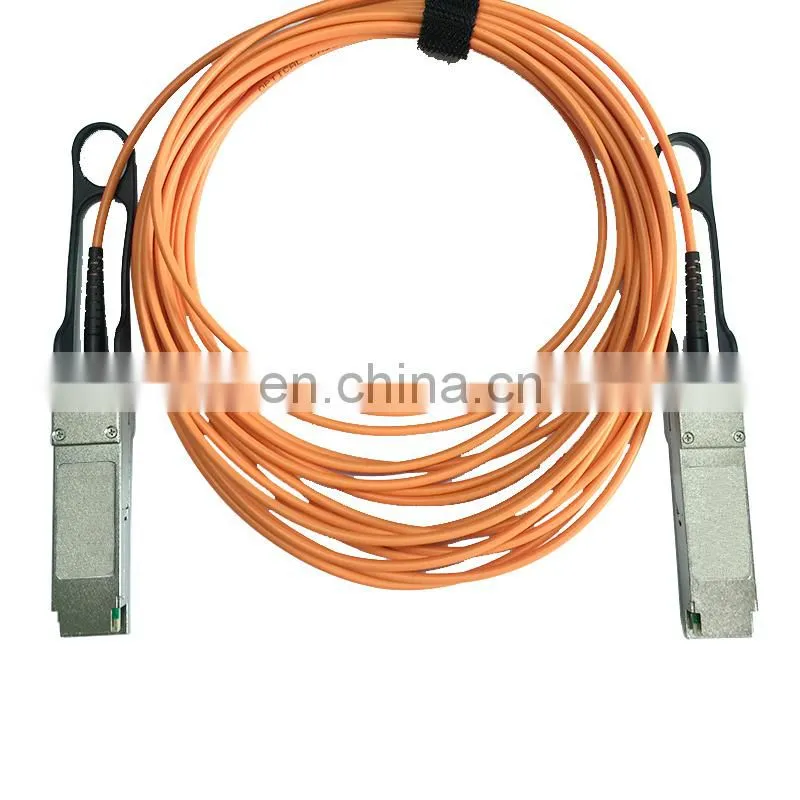

QSFP-40G-AOC 40G QSFP+ to QSFP+ Active Optical Cable
Product description
-
Rollball’s QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. The Olink QSFP AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. The Olink QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
-
Features
- Four-channel full-duplex active optical cable
- Transmission data rate up to 11.3Gbit/s per channel
- Reliable VCSEL array technology using multimode fiber
- Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
- Low power consumption <1.5W
-
3.3V power supply voltage
Specification
Optical characteristics
Unit
Values
Operating Reach
m
10K
Transmit
Center wavelength (range)
nm
1260 -1355
Side Mode Suppression Ratio (min)
dB
30
Launched power
– maximum
dBm
+0.5
– minimum
dBm
-8.2 Notes1
- OMA
dBm
-5.2
- OMA-TDP (min)
dBm
-6.2
Transmitter and dispersion penalty
dB
0 Notes4
Average launch power of OFF transmitter (max)
dBm
-30
Extinction ratio (min)
dB
3.5 Notes2
RIN12 OMA (max)
dB/Hz
-128
Optical Return Loss Tolerance (min)
dB
12
Receiver
Center wavelength (range)
nm
1260-1355
Receive overload (max) in average power1
dBm
0.5
Receive sensitivity (min) in average power1
dBm
-14.4 Notes3
Receiver sensitivity (max) in OMA (footnote 2)
dBm
-12.6 Notes3
Receiver Reflectance (max)
dB
-12
Stressed receiver sensitivity (max) in OMA2
dBm
-10.3
Vertical eye closure penalty (min)3
dB
2.2
Stressed eye jitter (min)2
UIp-p
0.7
Receive electrical 3dB upper cutoff frequency (max)
GHz
12.3
Receiver power (damage, Max)
dBm
1.5
Rollball is always at your services with our fiber optical products. As professional manufacturer with rich experience, we have more than 100 different models for your choices, you are sure to stand out with Rollball advantage: competitive price , product warranty and excellent quality. You may check the clients feedback from all over the world. We guarantee what we have showed is 100% genuine and what else you are waiting for?
