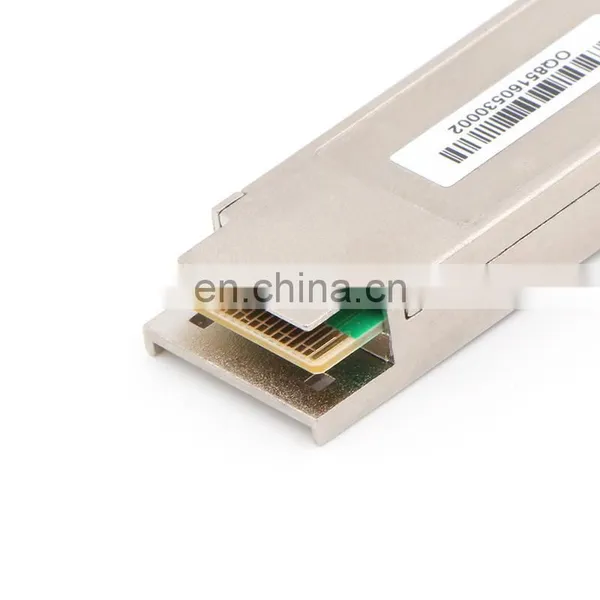

QSFP-40G-SR4 Compatible MMF 850nm 150m MPO 40gbase qsfp sr4
1.Description
qsfp module are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. Gigalight QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
2.Applications
1).Infiniband transmission at 4ch SDR, DDR and QDR
2).40GBASE-SR4 40G Ethernet
3).Data Centers
3.Features
1).Full duplex 4 channel 850nm parallel active optical cable
2).Transmission data rate up to 10.3Gbit/s per channel
3).SFF-8436 QSFP+ compliant
4).Hot pluggable electrical interface
5).Differential AC-coupled high speed data interface
6).4 channels 850nm VCSEL array
7).4 channels PIN photo detector array
8).Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
9).Low power consumption <1.5W
10).Operating case temperature 0°C to +70°C
11).3.3V power supply voltage
12).RoHS 6 compliant
4.Compitable brands
--All kinds of sfp modules can be compitable,just to tell us which brands do you want to compitbale when ordered.
- Quality system of ISO900,CE,FCC,ROHS registration
- Manufacture system
- R&D system
- Purchasing system
- Prompt delivery and remarkable services
- Reasonable prices
- Accept orders according to customer's demands
- Rich experience of OEM & ODM co-operation
- Shipment,payment and delivery
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
