40GBASE-SR4 QSFP+ 850nm 100m DOM MPO MMF Module Transceiver
General Description
Qsfp module are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4.The optical transmitter portion of the transceiver incorporates a 4-channel VCSEL (Vertical Cavity Surface Emitting Laser) array, a 4-channel input buffer and laser driver, control and bias blocks. The optical receiver portion of the transceiver incorporates a 4-channel PIN photodiode array, a 4-channel TIA array, a 4 channel output buffer, control blocks.
Features
High Channel Capacity: 40 Gbps per module
Up to 11.1Gbps Data rate per channel
Maximum link length of 100m links on OM3 multimode fiber
Or 150m on OM4 multimode fiber
High Reliability 850nm VCSEL technology
Electrically hot-pluggable
Compliant with QSFP+ MSA
Case operating temperature range:0°C to 70°C
Power dissipation < 1.5 W
Applications
40G Ethernet
Infiniband QDR
Fiber channel
Standard
Compliant to IEEE 802.3ba
Compliant to SFF-8436
RoHS Compliant.

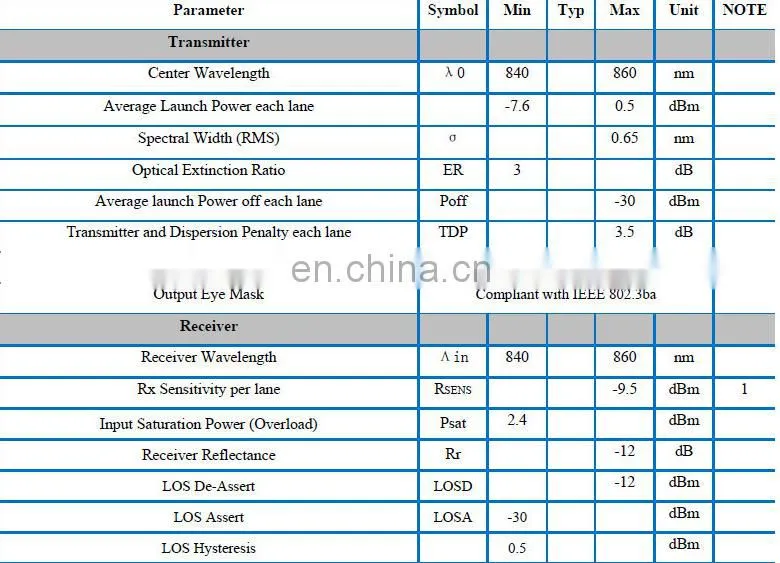

Optical Characteristics

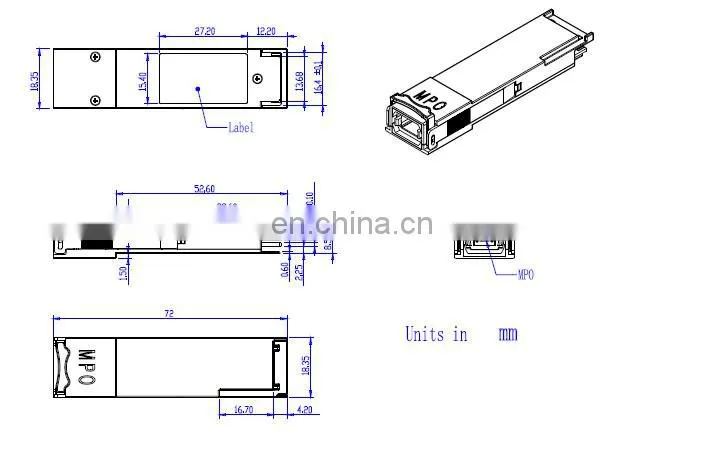

Outline Dimensions
Rollball International Co.,Ltd, specialized in providing high performance fiber optic communication products and accessories for telecommunication, broadcast, CATV and network industry worldwide. With more than 10 years of industry experience, Rollball brand products have covered all areas of fiber optic transmission, International sales steadily, the products are exported to more than 200 countries and regions.
- Quality system of ISO900,CE,FCC,ROHS registration
- Reasonable prices & No MOQ
- Flexible payment methods
- Prompt delivery and remarkable services
- Rich experience of OEM & ODM co-operation
- R&D systemAccept orders according to customer's demand
