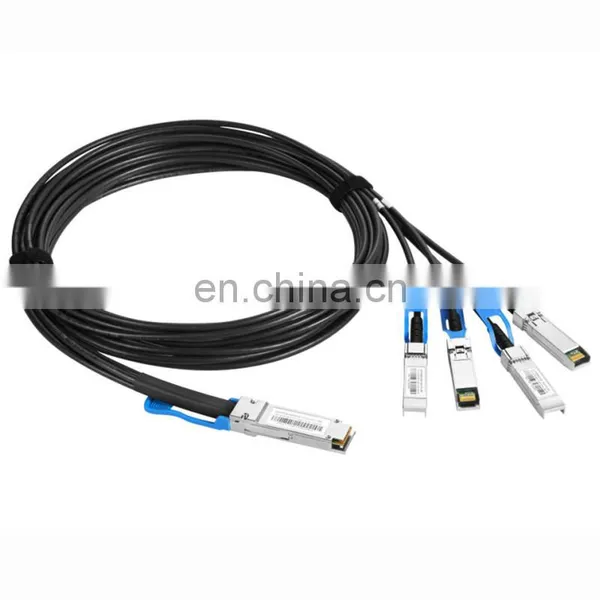

General Compatible 100G QSFP28 to 4xSFP28 DAC Breakout Cable Direct Attach Cable

General Compatible 100G QSFP28 to 4xSFP28 DAC Breakout Cable Direct Attach Cable thumbnail-1
General Compatible 100G QSFP28 to 4xSFP28 DAC Breakout Cable Direct Attach Cable thumbnail-2
General Compatible 100G QSFP28 to 4xSFP28 DAC Breakout Cable Direct Attach Cable photo-1

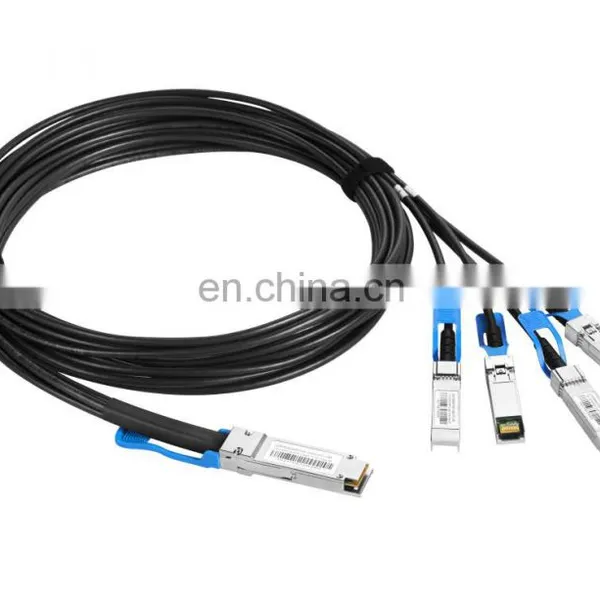

General Compatible 100G QSFP28 to 4xSFP28 DAC Breakout Cable Direct Attach Cable photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2004
Annual Export Value:
US$10 Million - US$50 Million
Contact Supplier Request Quote Chat Now
Shenzhen Rollball Comm-Tech Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

 100G QSFP28 To 4x SFP28 DAC Copper cable Passive direct attach cable





Features

  • Compatible with IEEE 802.3bj,IEEE 802.3by and InfiniBand EDR
  • Supports aggregate data rates of 100Gbps
  • Optimized construction to minimize insertion loss and cross talk
  •  Backward compatible with existing QSFP+ connectors and cages
  • Pull-to-release slide latch design
  • 26AWG through 30AWG cable
  •  Straight and break out assembly configurations available
  • Customized cable braid termination limits EMI radiation
  • Customizable EEPROM mapping for cable signature
  •  RoHS compliant



Application



  • Switches,servers and routers
  • Data Center networks
  • Storage area networks
  • High performance computing
  • Telecommunication and wireless infrastructure
  • Medical diagnostics and networking
  • Test and measurement equipment



Product Description

QSFP28 passive copper cable assembly feature eight differential copper pairs,providing four data transmission channels at speeds up to 28Gbps per channel,and meets 100G Ethernet,25G Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements.Available in a broad rang of wire gages-from 26AWG through 30AWG-this 100G copper cable assembly features low insertion loss and low cross talk.

Designed for applications in the data center,networking and telecommunications markets that require a high speed,reliable cable assembly,this next generation product shares the same mating interface with QSFP+ form factor ,making it backward compatible with existing QSFP ports.QSFP28 can be used with current 10G and 14G applications with substantial signal integrity margin.

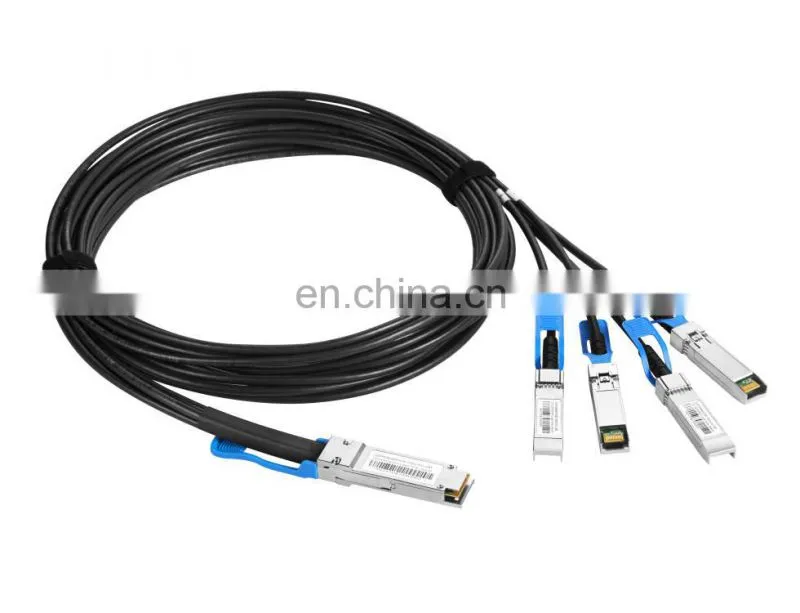

General compatible 100G QSFP28 to 4xSFP28 DAC breakout cable direct attach cable





Industry  Standards

  • 100G Ethernet(IEEE 802.3bj)
  • 25G  Ethernet(IEEE 802.3by)
  • InfiniBand EDR
  • SFF-8665   QSFP+  28G  4X Pluggable  Transceiver  Solution(QSFP28)
  • SFF-8402 SFP+ 1X 28Gb/s Pluggable Transceiver  Solution(SFP28)

Technical  Documents

  • 108-32081 QSFP28  Copper  Module  Direct  Attach  Cable  Assembly
  • 108-2364  Single  Port and Ganged  SFP+ Cages,Zsfp+  Single  Port and Ganged Cages,and SFP+  Copper Direct Attach Cable Assemblies.



Length (m)

Cable AWG

1

30/28

2

30/28

3

30/28

4

28

5

28/24

6

24

7

24



Ordering information

Part Number

Product Description

RQSFP28-4xSFP28-100G-CU1M

QSFP28 to 4x SFP28 Direct Attach Passive Cable , 1m, AWG:30/28, 0ºC ~ +70ºC

RQSFP28-4xSFP28-100G-CU2M

QSFP28 to 4x SFP28 Direct Attach Passive Cable , 2m, AWG:30/28, 0ºC ~ +70ºC

RQSFP28-4xSFP28-100G-CU3M

QSFP28 to 4x SFP28 Direct Attach Passive Cable , 3m, AWG:30/28, 0ºC ~ +70ºC

RQSFP28-4xSFP28-100G-CU4M

QSFP28 to 4x SFP28 Direct Attach Passive Cable , 4m, AWG:26, 0ºC ~ +70ºC

RQSFP28-4xSFP28-100G-CU5M

QSFP28 to 4x SFP28 Direct Attach Passive Cable , 5m, AWG:26, 0ºC ~ +70ºC



Note: You can be customized the cable length and label.





 General compatible 100G QSFP28 to 4xSFP28 DAC breakout cable direct attach cableGeneral compatible 100G QSFP28 to 4xSFP28 DAC breakout cable direct attach cable

General compatible 100G QSFP28 to 4xSFP28 DAC breakout cable direct attach cable



General compatible 100G QSFP28 to 4xSFP28 DAC breakout cable direct attach cable
