Product Description

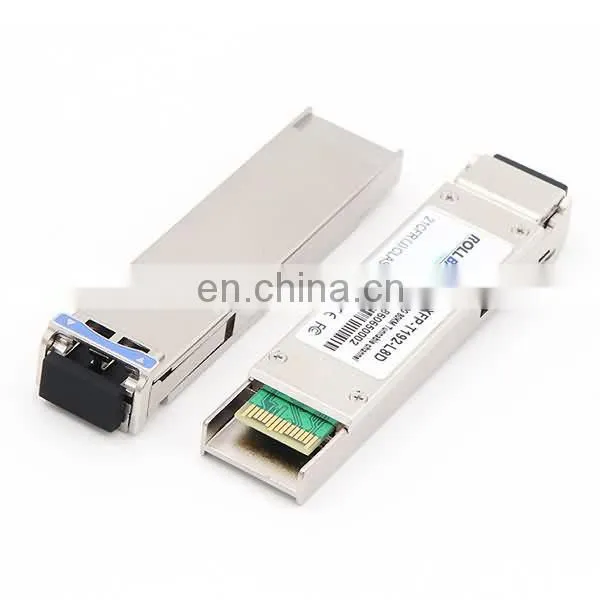

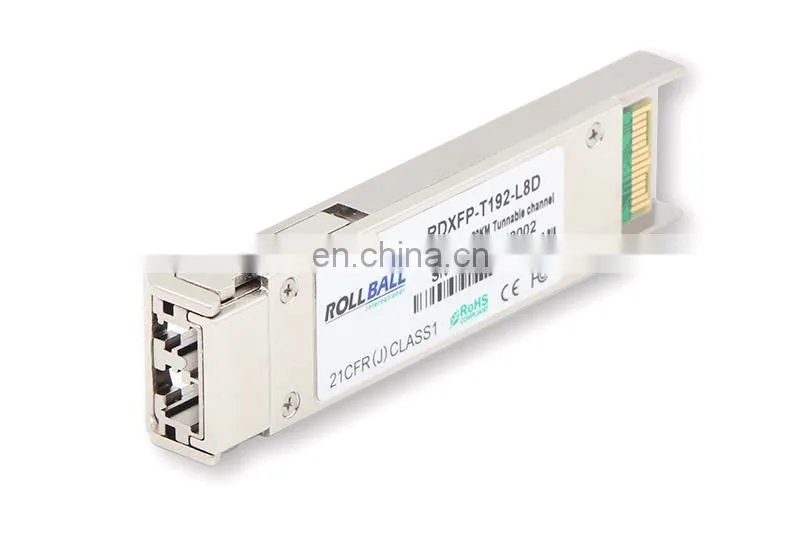

                                                    XFP Tunable dwdm 80km transceiver xfp 10gb cx4 module

Description


1).Rollball’s sfp vs xfp are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with
10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.

2).The transceiver module comprises a transmitter with uncooled EML laser and a receiver with a PIN photodiode.

3).Transmitter and receiver are separate within a wide temperature range of 5°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.


Application


* DWDM 10GBASE-ZR/ZW 10G Ethernet

* DWDM 80KM 10G Fiber Channel

* DWDM SONET OC-192&SDH STM-6

Features


 * Supports 9.95Gb/s to 11.3Gb/s bit rates

* Monolithically integrated full C-band tunable transmitter

* 50 GHz ITU channel spacing with integrated wavelength locker

* C-band-tunable Laser and APD receiver

* Maximum link length of 80km

* Full Duplex LC connector

* Hot-pluggable XFP footprint

* Supports Line-side and XFI loopback

* No Reference Clock required

* Built-in digital diagnostic functions

* Standard bail release mechanism

* Power dissipation <3.5W

* With DDM / without DDM optional; default with DDM;

* Operating Case Temperature

Standard: 0°C ~+70°C

Industrial:-40°C~+85°C

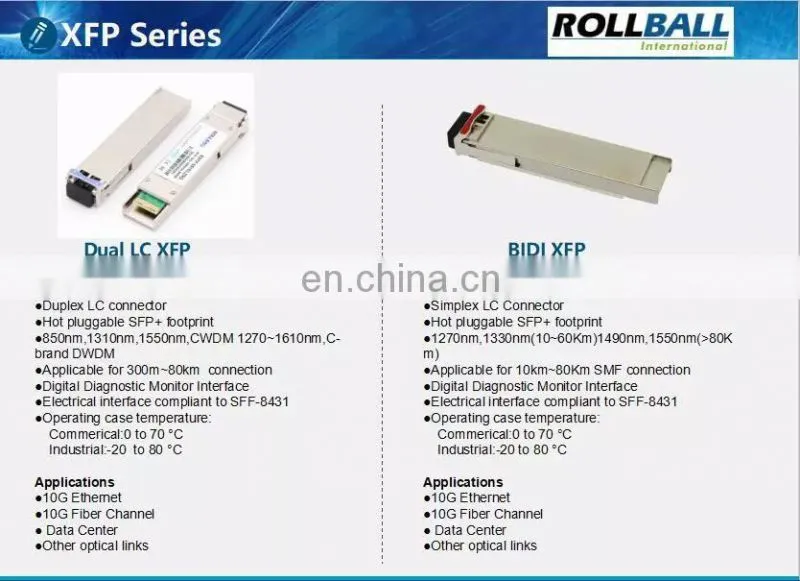

Product list


Part Number
Specification
Data Rate
Wavelenth
Fiber
Distance
Temp.
Source
XFP LC Duplex Port
RXFP-85192-SRD
10Gb/s
850nm
MM
300m
0~70
VCSEL
RXFP-31192-LRD
10Gb/s
1310nm
SM
10km
0~70
DFB
RXFP-55192-ERD
10Gb/s
1550nm
SM
40km
0~70
EML
RXFP-55192-ZRD
10Gb/s
1550nm
SM
80km
0~70
EML
