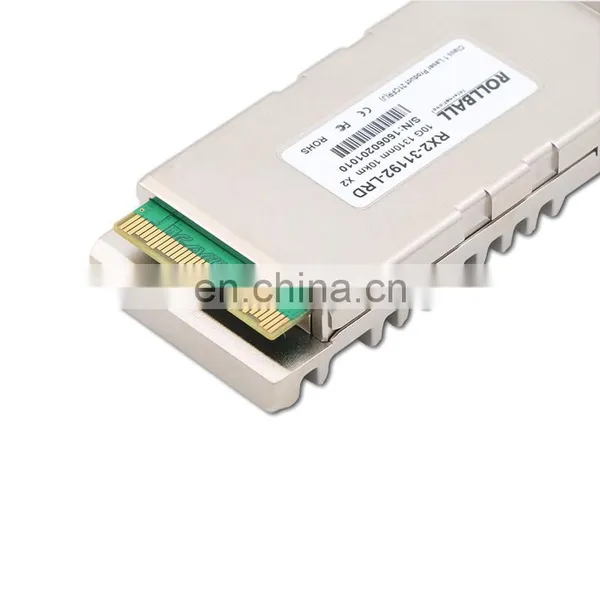

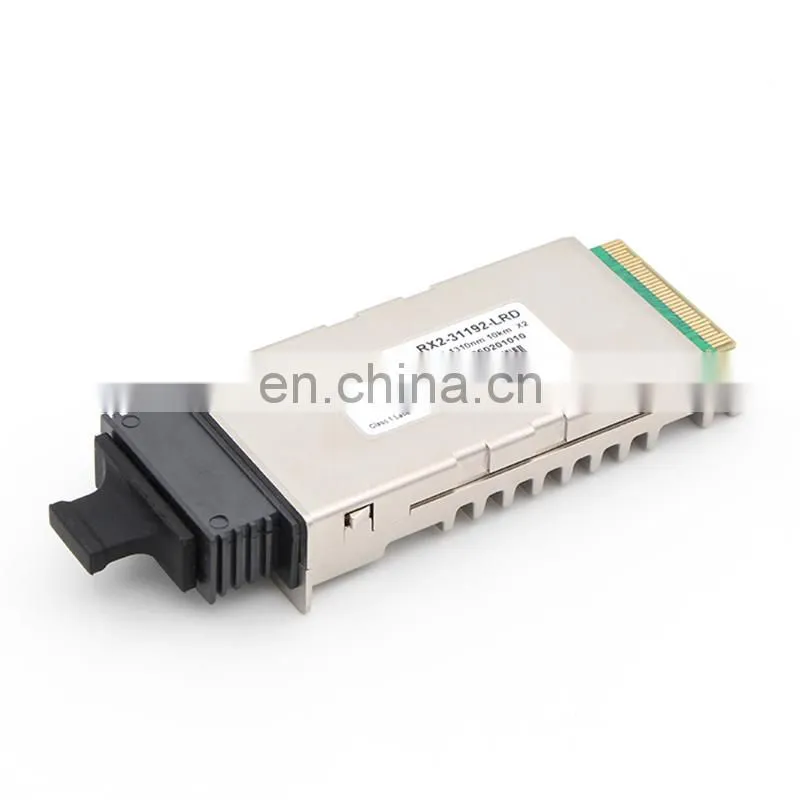

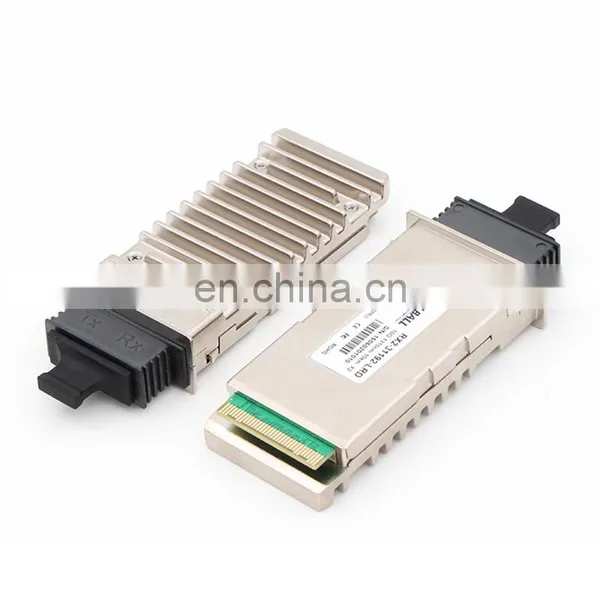

Compatible 10GBASE-LR X2 1310nm 10km DOM LC SMF Module Transceiver
Product Description
1. The RX2-31192-LRD is a highly integrated,Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.
2. An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10km Transmission with a vertical cavity surface emitting laser (VCSEL).
3. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XENPAK MSA 3.0.
Features
Compatible with X2 MSA Rev2.0b
Support of IEEE 802.3ae 10GBASE-LR at 10.3125Gbps
Transmission Distance up to 10km (SMF)
Vertical Cavity Surface Emitting Laser at 1310nm
SC Duplex Optical Connector
Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
Management and control via MDIO 2-wire interface
Power Supply :+3.3V, APS(+1.2V)
Diagnostic Optics Monitoring
Temperature Range: 0~ 70 °C
ROHS Compatible
Applications
10GE Ethernet switches and routers
10GE Core-routers
10GE Storage
Other 10Gbps Ethernet Transmission System
