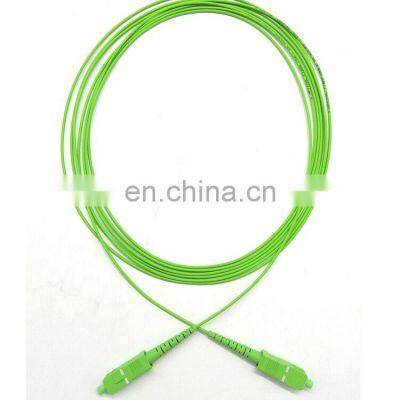

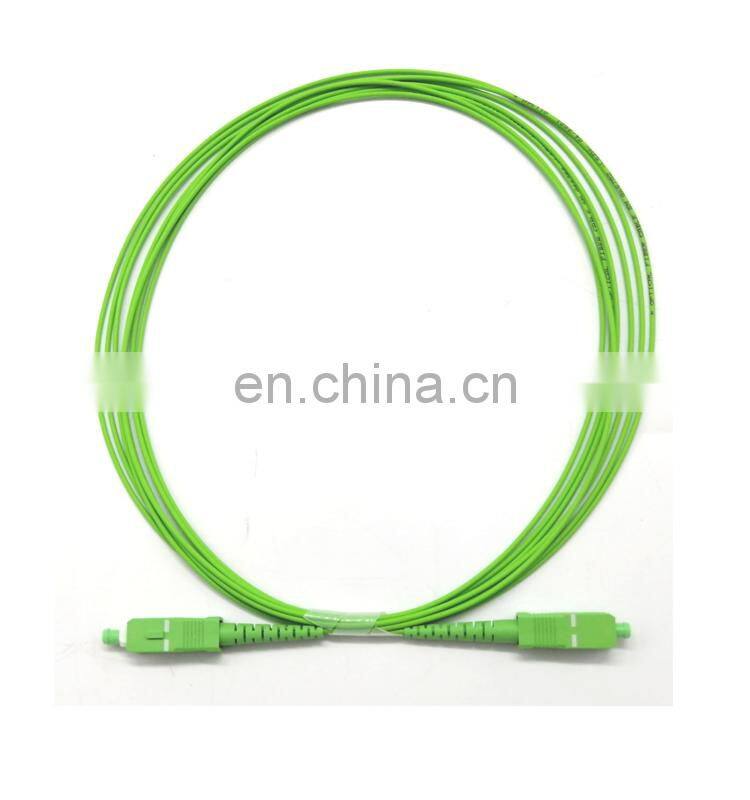

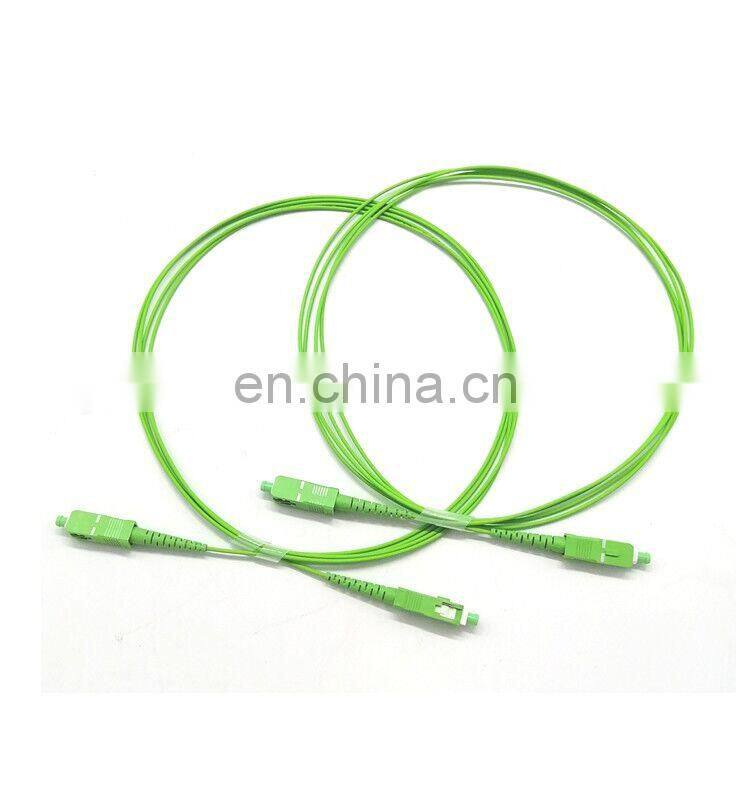

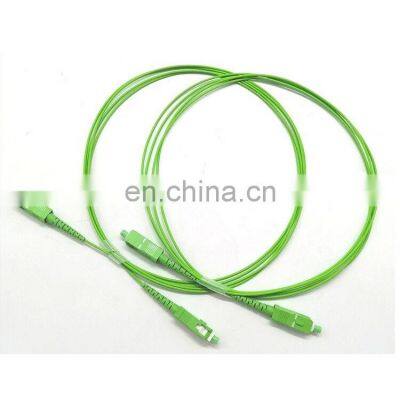

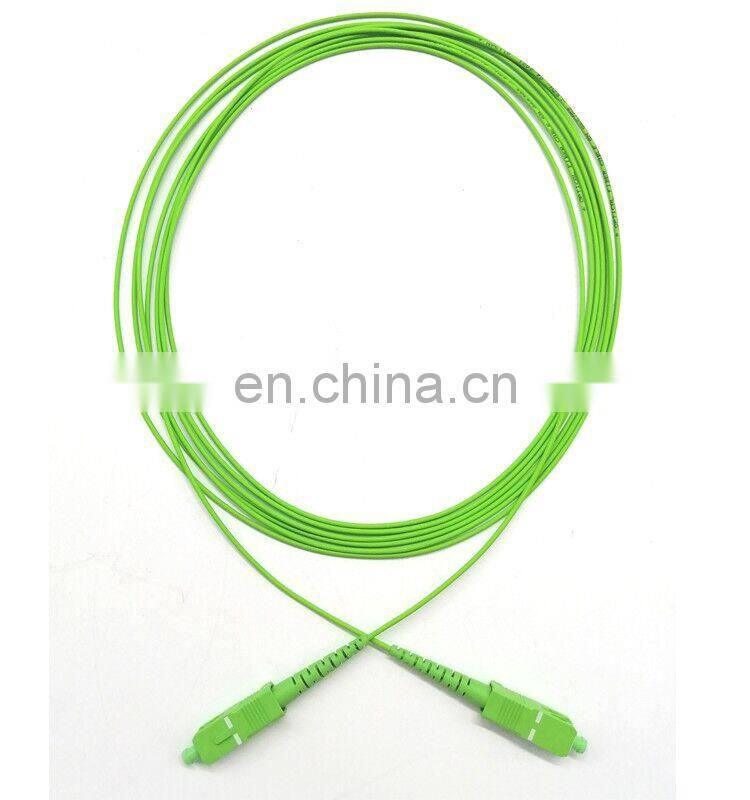

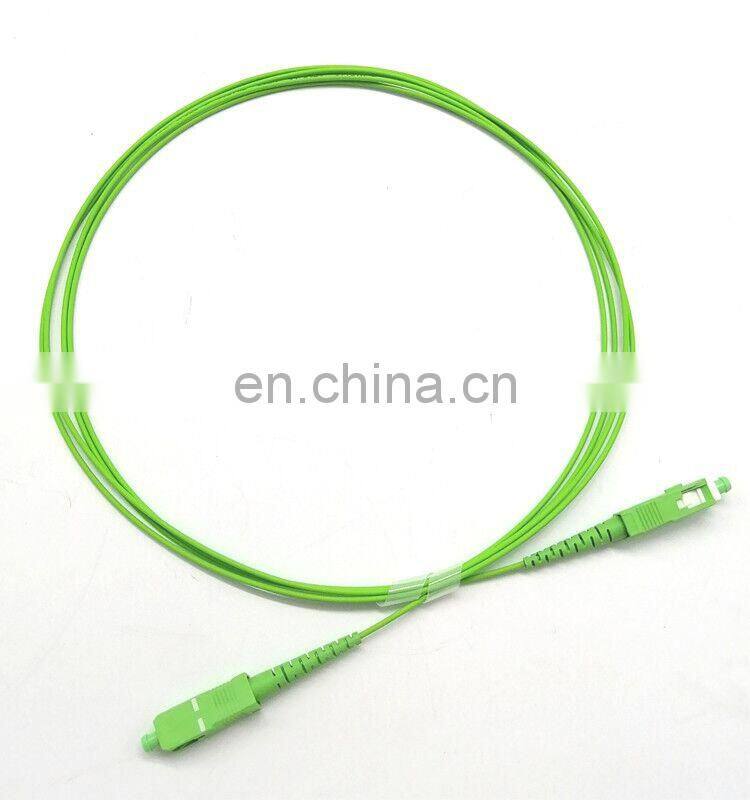

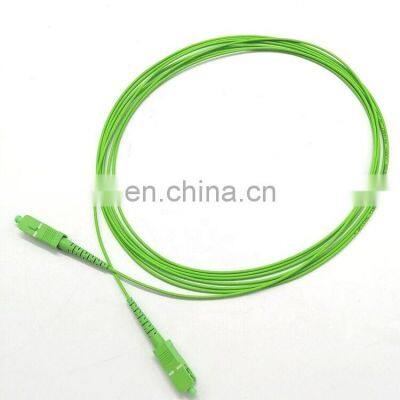

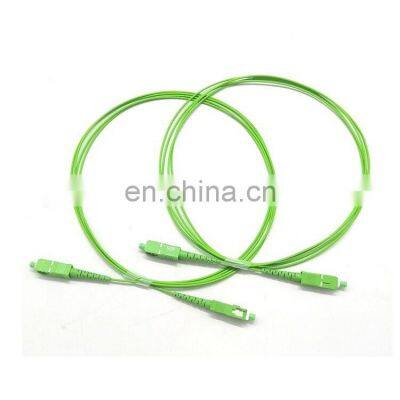

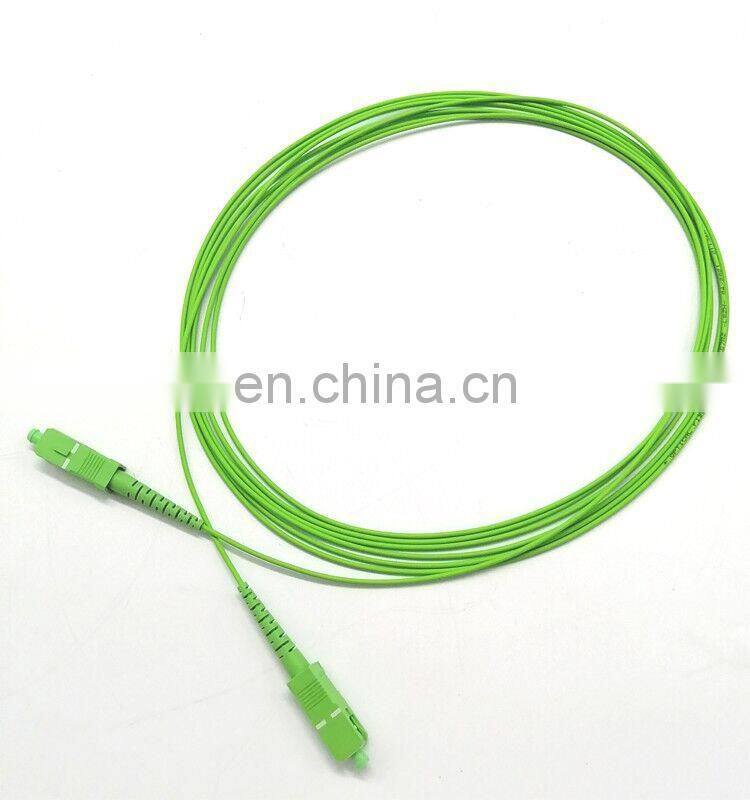

Green Patch Cord SC APC 1.6mm 3.5meter Singlemode Simplex Fiber Optical Cable Jumper Patch Cord
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1999
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiber Optic Cleaner One Click Optical Fiber Cleaning Pen SC LC MPO 1.25mm 2.5mm Connector Ferrule CleanNegotiableMOQ: 1 -
1.6mm Sc/apc Jarretiere Optique Fibres sm Core Simplex Scapc Green 3.5m White Fiber Optical 1.6mm Patch CordsNegotiableMOQ: 1
-
1.6mm 3.0mm sm Aqua Patch Cable 9/125 Sc/apc to Sc/apc 1.5m 3.5m White Simplex Optical Fiber Patchcord scNegotiableMOQ: 1
-
Outdoor Non-armored Singlemode G652d 6 12 48 Core Armoured Fiber Optic Cable GyftyNegotiableMOQ: 1
-
Ftta Outdoor lc sc Mpo Mtp Cable Optical Patch Cords Waterproof Fiber Patch Cord OdvaNegotiableMOQ: 1
Green Patch Cord SC APC 1.6mm 3.5meter Singlemode Simplex Fiber Optical Cable Jumper Patch Cord
Product Description
A ptachcords can be split into three crucial components, the connector, the cable and the manufacturing process. These three areas all contribute to the performance of a patch cord, but above all the manufacturing process is the one that defines the performance of the assembly. The range of high performance SC, FC, ST, LC, MTRJ, MU, fiber optic cables come in any combination, including angled (angle polished) SCA, MUA, FCA, STA, LCA, MPO Angled. We offer a range of Flammability options, PVC and LSZH. Features include, low insertion loss and outstanding return loss performance. All cables are available in 1.8mm or 2.8mm duplex and 4.8mm round.
Optical Feature:
| Content | Testing Condition | (dB) | ||||
| SM | MM | |||||
| APC | UPC | PC | ||||
| Optical Performance | IL(dB) | 1310/1550nm LD Light | 0.2 | 0.2 | 0.2 | 0.2 |
| RL(dB) | 1310/1550nm LD Light | 65 | 55 | 50 | 35 | |
|
Environment Performance |
High Temperature | +85℃,168H | 0.2 | |||
| Temperature cycle | -40~+75℃,21cycle,168H | 0.2 | ||||
| Humidity thermal(Fixed) | 5℃,95%R.H.,168H | 0.2 | ||||
| Humidity thermal cycle | 10~+65℃,95%R.H.,21 cycle,168H | 0.2 | ||||
| Mechanical Performance | Vibration | 10~55Hz,1.5mm(p-p) | 0.1 | |||
| Bending | 0.9kgf,-90°~+90°,100cycle | 0.1 | ||||
| Torsion | 2.5kgf,10times/min,±180°,200times | 0.1n | ||||
| Anti-tension | 90N,10min | 0.1 | ||||
| Dropping | 1.5 height, 8 times | 0.2 | ||||
| Repeat | 10 Times inserts | 0.1 | ||||
| Durability | >1000times | 0.2 | ||||
Related Products
|
Product Categories (Please click on more information) |
||
| Fiber Optic Cables | Fiber Optic Components | FTTH Solutions |
| Fiber Optic Management | Fiber Optic Equipment | Networking Products |
>>>>>>Contact Us
Company Information
Certifications
Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
