guangdong underwater 6f 64 96 core G657a1 air blow cables price list per meter in pakistan 6mm 3mm plastic fiber optic cable



Product Description

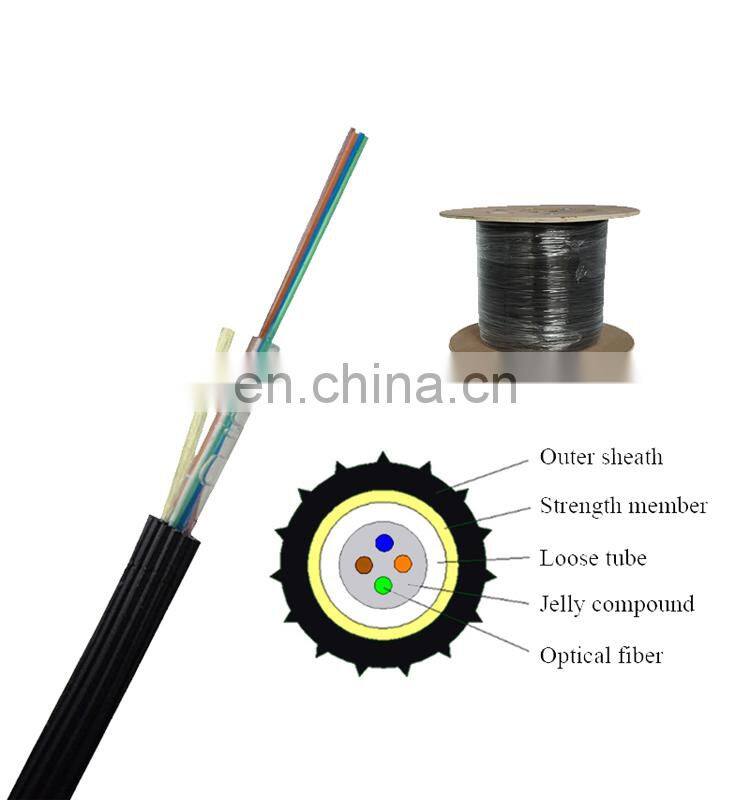

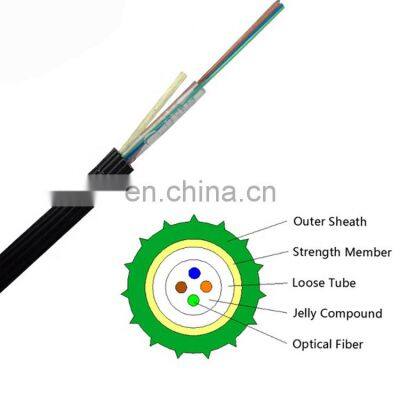

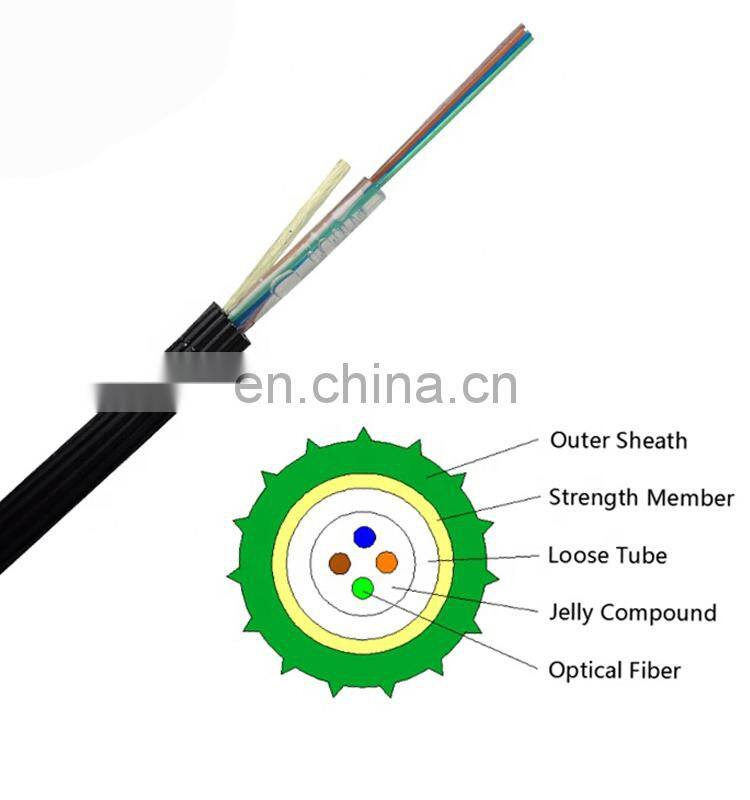

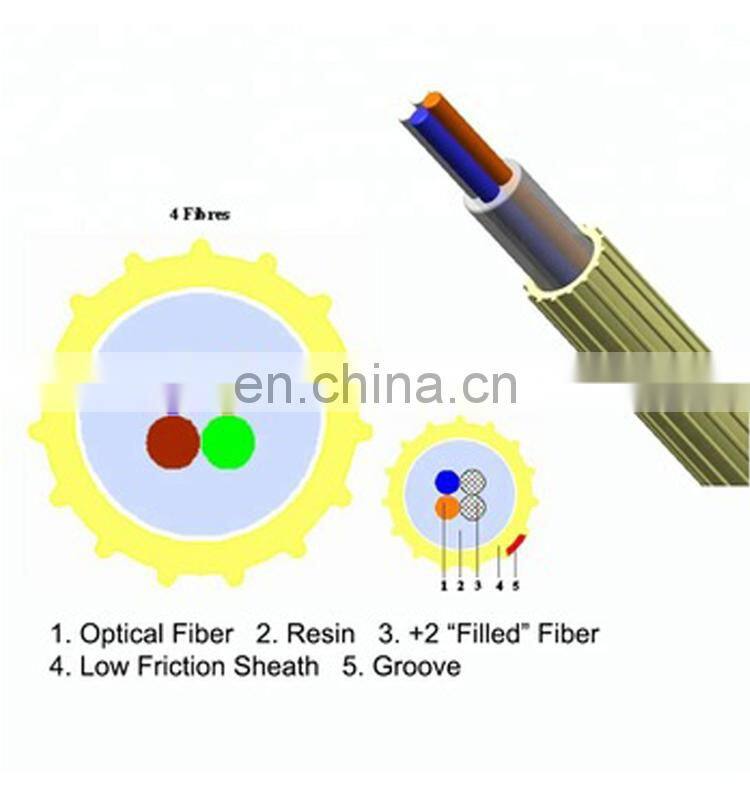

The ABF is the product that with small diameter, lightweight, highly flexibility and proper stiffness, and it can be
blown into the micro duct of 5.0/3.5mm. The fibers are coated with a soft acrylate resin which provides excellent
dimensional and thermal stability to cushion the fibers, in addition, the resin can be easily stripped in connecting
the fibers. The outer sheath is a thermoplastic that is of low friction. The surface of the sheath is designed with
special grooves, compared to the surface of the traditional optical fibre cable, it provides not only the high level
of mechanical protection, but also the perfect blowing performance.

guangdong underwater 6f 64 96 core G657a1 air blow cables price list per meter in pakistan 6mm 3mm plastic fiber optic cableguangdong underwater 6f 64 96 core G657a1 air blow cables price list per meter in pakistan 6mm 3mm plastic fiber optic cableguangdong underwater 6f 64 96 core G657a1 air blow cables price list per meter in pakistan 6mm 3mm plastic fiber optic cableguangdong underwater 6f 64 96 core G657a1 air blow cables price list per meter in pakistan 6mm 3mm plastic fiber optic cableguangdong underwater 6f 64 96 core G657a1 air blow cables price list per meter in pakistan 6mm 3mm plastic fiber optic cableguangdong underwater 6f 64 96 core G657a1 air blow cables price list per meter in pakistan 6mm 3mm plastic fiber optic cableguangdong underwater 6f 64 96 core G657a1 air blow cables price list per meter in pakistan 6mm 3mm plastic fiber optic cable

Features:

* Non-metal design can prevent the cable from radio interference and magnetic wave interference
* Central tube filling compound ensure good moisture resistance performance
* High dense fiber packed,small diameter and light weight; it`s easy for blowing installation progress.
*Good flexibility
*Specially designed compact structure is good at preventing loose tubes from shrinking.



Technical Data:

No. of cable
/
2~12
12~24
Fiber type
/
G.657
Loose Tube
Material
mm
PBT
Diameter
(±0.05mm)
1.6
2.4
Thickness
(±0.03mm)
0.3
0.4
Max fiber
2-12
14-24
Non metallic strength
Material
/
Aramid yarn
Outer Sheath
Material
mm
HDPE
Thickness
0.5(nominal)0.40(min.)
Color
Black.
Cable Diameter(±0.2mm)
mm
2.5
3.5
Cable Weight(±10.0kg/km)
kg/km
3.5
4.5
Attenuation coefficient
1310nm
dB/km
≤0.35
1550nm
≤0.21
MAX. Tensile Strength
N
120
150
MAX. Crush Resistance
N/
100mm
1000
Min. bending radius
Without Tension
mm
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
℃
-10℃+40℃
Transport&Storage
-40℃+60℃
Operation
-30℃+50℃



Related Products

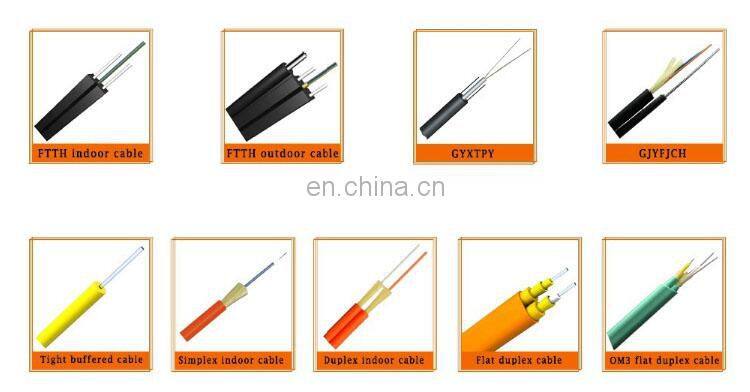

Product Categories (Please click on more information)
