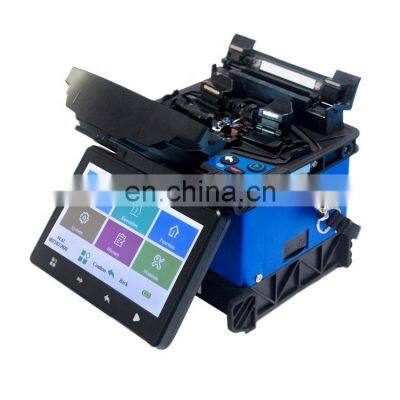

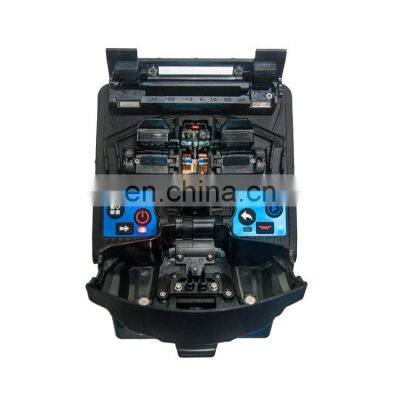

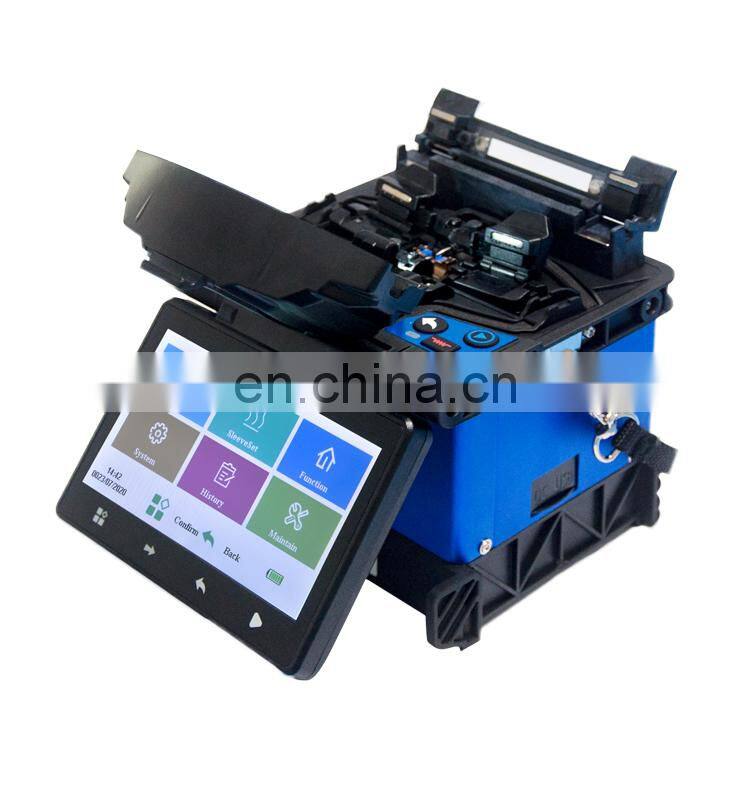

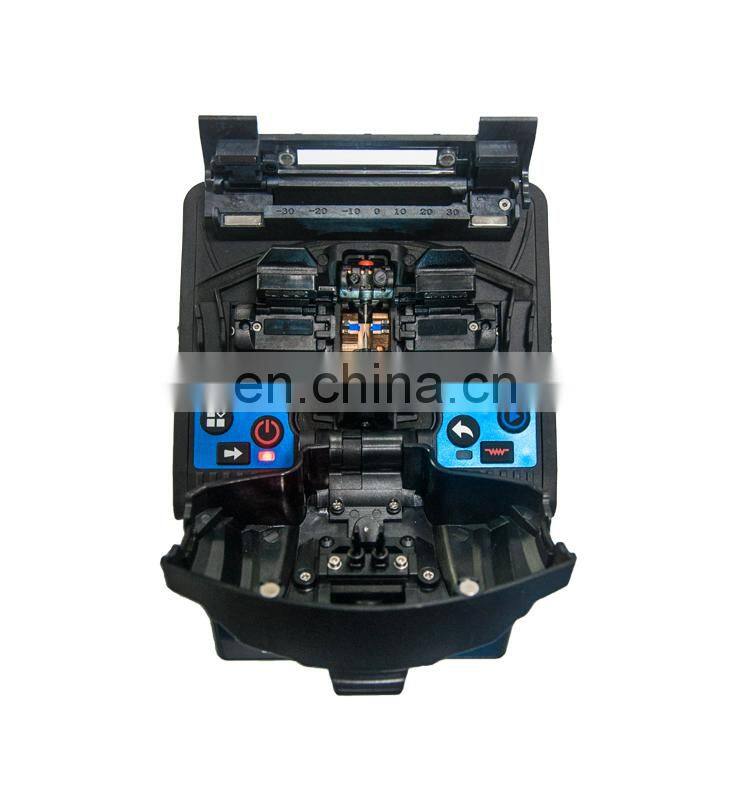

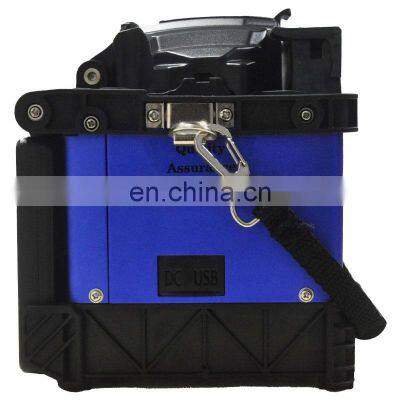

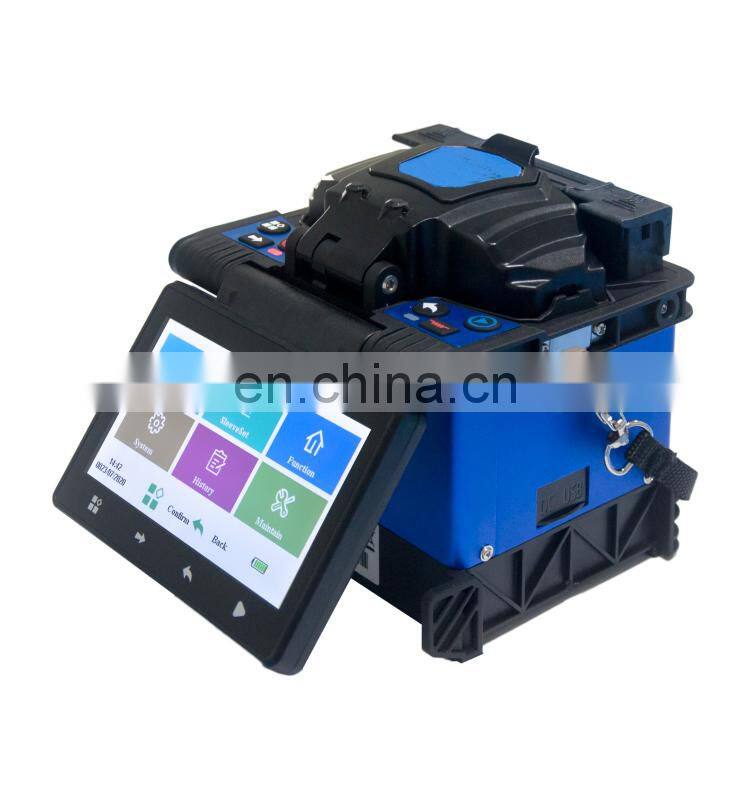

Touch Screen Automatic Intelligent Fiber Optic Fusion Splicing Machine Fusion Splicer
Features:
· Automated and programmable wind protector
· 7 seconds Splicing Time;12-second automated tube heater
· Fully ruggedized for shock, dust and moisture
· Li-Ion battery with 240 splices/shrinks per charge
· 5 mm cleave length for splice on connector or small package needs
· Sheath clamp or fiber holder operation
· On-board training and support videos
· Internet software upgrades

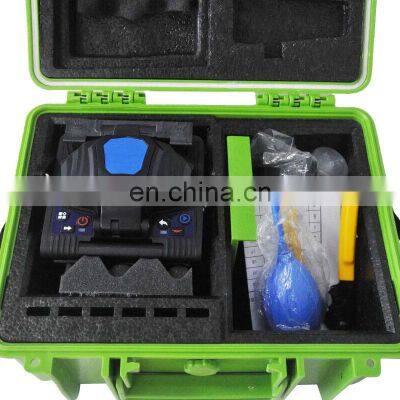

· Multi-function transit case with integrated workstation
Technical Specifications:
|
Model |
FS-4108S |
|
Alignment method |
Precise core alignment and cladding alignment |
|
Fusion splicingconsumption(typical value) |
0.02dB(SMF) ; 0.01dB(MMF); 0.04dB(DSF); |
|
Return loss |
(NZDSF) Better than 60dB |
|
Fusion splicing time (typical value) |
7s |
|
Heating time (typical value) |
18s |
|
Thermal shrinkage tube |
60mm; 40mm and a series of thermal shrinkage tubes |
|
Graphical display |
High-performance 4.3inch LCD |
|
Magnification time |
320times/88times |
|
Electrode service life |
Typical value is 4000times, can be replaced by customers |
|
Dimensions Weight |
120mm(W) x 130mm(H)x 154mm(D) (without rubber anti-vibration pad) |
