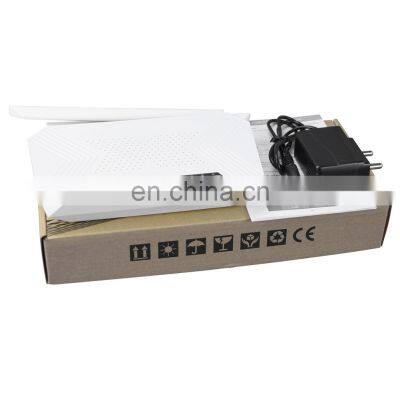

Fiber Optic Equipment FTTH ONT GPON Compatible Network Unit 1G1F+WIFI+CATV XPON ONU Good Price FTTH for Fiberhome
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ONU XPON CTC 3.0Modle HG8010H Original HG8310M 8010H FTTH 1GE XPON ONT Modem Mini XPON Good Price FTTH for Fiberhome MA5680TNegotiableMOQ: 1 -
Fiber Optic Equipment FTTH ONT XPON Compatible Network Unit 1GE+1FE+WIFI XPON ONU Good Price FTTH for FiberhomeNegotiableMOQ: 1
-
Fiber Optic Equipment FTTH ONT XPON Compatible Network Unit 1GE+1FE+CATV+WIFI XPON ONU Good Price FTTH for FiberhomeNegotiableMOQ: 1
-
Fiber Optic Equipment FTTH ONT XPON Compatible Network Unit 1GE+1FE+CATV+WIFI +POTS XPON ONU Good Price FTTH for FiberhomeNegotiableMOQ: 1
-
Fiber Optic Equipment FTTH ONT XPON Compatible Network Unit 4GE+AC+WIFI +POTS+USB BOB XPON ONU Good Price FTTH for FiberhomeNegotiableMOQ: 1
Technical Item |
Details |
PON Interface
|
1 GPON BOB (Bosa on Board) Receiving sensitivity:≤28dBm
Transmitting optical power:+1~+4dBm
Transmission distance:20km
|
Wavelength |
TX:1310nm RX:1490nm |
Optical Interface |
SC/APC Connector |
LAN Interface |
1*10/100/1000Mbps(GE) and 1*10/100Mbps(FE) auto adaptive Ethernet interface.Full/Half,RJ45 connector |
Wireless |
Compliant with IEEE802.1 1b/g/n Operating frequency:2.400-2.835GHz
support MIMD rate up to 300Mbps
2T2R,2 extemal antenna 5dB
support:Multiple SSID
Channel:Auto
Modulation type:DSSS,CCK and OFDM
Encoding scheme:BPSK,QPSK,16QAM and 64QAM
|
CATV Interface |
RF,WDM,optical powter:+2~15dB Optical reflection loss:≥45dB
Optical receiving wavelength:1550+10nm
RF frequency range:47-1000MI lz.RF output inpedance:75
RF output level:78BuV
AGC range:-13~+1dBm
MER:≥32Db@.15dBm
|
POTS interface |
1 FXS RJ11 connector support:G.711/G.723/G.726/G.729codec
support:T.30/T.38/G.711 Fax mode ,DTMF Relay
Line testing according to GR-909
|
LED |
10LED,For Status of WIFI,WPS,PWR,LOS,PON,LAN1-LAN2,FXS,Wcrn,normal(CATV) |
Push-Button |
3,For Function of Reset .WLAN,WPS |
Operating Condition |
Temperature:-0℃~+50℃ Humidity:10%-90%(non-condensing)
|
Storing Condition |
Temperature:-30℃~+60℃ Humidity:10%-90%(non-condensing)
|
Power Supply |
DC 12V/1A |
Power Consumption |
<6W |
Dimension |
155mm*92mm*34mm(L*W*H) |
Net Weight |
0.24kgs |
1.HUR2101XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services.
2.Support EPON/GPON mode and switch mode automatically
Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
Support IPv4 and IPv6 dual mode
Support 2.4G WIFI and Multiple SSID
Support SIP Proctol for Voip Service
Support CATV interface for Video Service and remote control by Major OLT
Support LAN IP and DHCP Server configuration
Support Port Mapping and Loop-Detect
Support Firewall function and ACL function
Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and maintenance
Specialized design for system breakdown prevention to maintain stable system
3.HUR2101XR is based on mature and stable, cost-effective XPON technology. HUR2101XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
1.Advanced production and testing equipment
2.Professional manufacturer, 100% tested.
3.Full compliance with ISO 9001:2008 quality management system
4.Our company has experienced professional team
5.Provide reliable solutions and satisfactory services
6.Warmly services with careful attentions.
7.Can provide your specific inquiry within 24 hours. Advanced production and testing equipment
WeUnion Communication Technology Co., Ltd. is a professional manufacturer
focuses on development,production, and sales of fiber telecommunication product.
We provide Fiber Optic Cable, Fiber Patch cord, fiber pigtail, Optic PLC splitter, Fiber
Distribution Boxes and relevant products which are widely used in FTTX, LAN, WAN, G-Pon,
E-Pon Project. Our company has advance production and test equipments, strict production
and quality control system, and stable supply chain. We are fully compliant with ISO9001: 2008
quality management system, we guarantee that our products areIEC60794 and
Telcordia-GR-326-Core standard compliant, also compliant with our customers’ varied requirements.
Our company has rich experienced professional team and iscommitted to providing
customers with reliable solution and satisfactory services. Through continuous development and
expansion of our company, we now have customer around the world, especially in North America,
South America, Europe, andAsia. Our products and services have been well received by customers.
In the future, we will continue to provide customerswith safe and reliable FTTX solutions.
Q1: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for special ones.
Q2:How about the cable's quality ?
A: Our factory has dug in this industry for many years and sold to many countries in the world. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant. We have a series of professional equipment and manufacturing instruments to make sure reliable quality of our products.
Q3: How do l assure that you are a reliable supplier?
A: We are the Assessed Supplier of . Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.
Q4: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ Depends on different
