FTTH 7/93 APC 0.25mm Steel Coupler Case Optic Fiber FBT Splitter

FTTH 7/93 APC 0.25mm Steel Coupler Case Optic Fiber FBT Splitter photo-1
FTTH 7/93 APC 0.25mm Steel Coupler Case Optic Fiber FBT Splitter photo-2
FTTH 7/93 APC 0.25mm Steel Coupler Case Optic Fiber FBT Splitter photo-3
FTTH 7/93 APC 0.25mm Steel Coupler Case Optic Fiber FBT Splitter photo-4

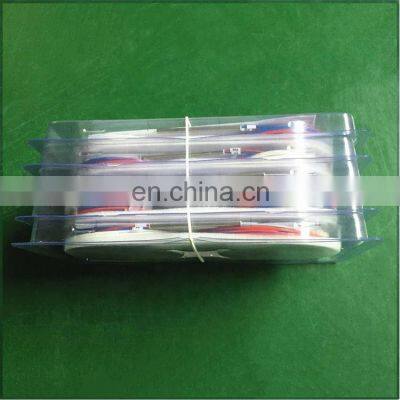

FTTH 7/93 APC 0.25mm Steel Coupler Case Optic Fiber FBT Splitter photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description
Parameter
Unit
Wide Band Coupler
Dual Window Coupler
Multimode fiber Coupler
Grade
/
P
S
P
S
P
S
Operating Wavelength
nm
1310,1550or C+Band
1310and1550
850or1310 or customer specified
Operating Bandwidth
nm
±40
±40
±40
Typical Excess Loss
dB
≤0.07
≤0.01
≤0.07
≤0.01
≤0.4
≤0.7
Insertion Loss
50/50
dB
≤3.4
≤3.6
≤3.4
≤3.6
≤3.7
≤4.0
40/60
≤4.2/2.6
≤4.7/2.8
≤4.2/2.6
≤4.7/2.8
≤4.7/2.7
≤5.0/3.0
30/70
≤5.7/1.9
≤6.0/2.0
≤5.7/1.9
≤6.0/2.0
≤6.0/2.0
≤6.3/2.4
20/80
≤7.6/1.25
≤8.0/1.3
≤7.6/1.25
≤8.0/1.3
≤7.8/1.4
≤8.1/1.7
10/90
≤9.55~10.65
/0.65
≤9.3~10.9
/0.8
≤9.55~10.65
/0.65
≤9.3~10.9
/0.8
≤11.2/0.9
≤11.6/1.2
5/95
≤12.4~13.8
/0.4
≤12.1~14.1
/0.5
≤12.4~13.8
/0.4
≤12.1~14.1
/0.5
≤14.5/0.7
≤15.0/1.0
3/97
≤14.5~16.15
/0.3
≤14.15~16.5
/0.4
≤14.5~16.15
/0.3
≤14.15~16.5
/0.4
≤14.5~16.15
/0.3
≤14.15~16.5
/0.4
2/98
≤16.1~18.05
/0.25
≤15.7~18.45
/0.35
≤16.1~18.05
/0.25
≤15.7~18.45
/0.35
≤18.6/0.6
≤19.4/0.9
1/99
19.05~21.15
≤0.2
≤18.55~21.65
/0.3
19.05~21.15
≤0.2
≤18.55~21.65
/0.3
≤22.0/0.5
≤22.8/0.8
PDL
dB
≤0.1
≤0.15
≤0.15
≤0.2
≤0.1
≤0.15
Directivity
dB
≥55
Operating Temperature
-40~+85
Storage Temperature
-40~+85
1. Small size,compact package Low insertion loss,low PDL,high return loss Excellent channel uniformity Telcordia GR-1209 and GR-1221 compliant 2. High quality hytrel loose tube 1m,1.5m length optional single mode fiber 900um loose tube All ratio from 1/99 to 50/50 wide band,dual windiw low PDL Single mode fiber 900um loose tube 1m,1.5m, length optional 3. This product is made of new ceramic insert with excellent performance, stability and durability 4. Uniform light distribution The signal can be evenly distributed to users
1.Advanced production and testing equipment 2.Professional manufacturer, 100% tested. 3.Full compliance with ISO 9001:2008 quality management system 4.Our company has experienced professional team 5.Provide reliable solutions and satisfactory services 6.Warmly services with careful attentions. 7.Can provide your specific inquiry within 24 hours. Advanced production and testing equipment
WeUnion Communication Technology Co., Ltd. is a professional manufacturer focuses on development,production, and sales of fiber telecommunication product. We provide Fiber Optic Cable, Fiber Patch cord, fiber pigtail, Optic PLC splitter, Fiber Distribution Boxes and relevant products which are widely used in FTTX, LAN, WAN, G-Pon, E-Pon Project. Our company has advance production and test equipments, strict production and quality control system, and stable supply chain. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products areIEC60794 and Telcordia-GR-326-Core standard compliant, also compliant with our customers' varied requirements. Our company has rich experienced professional team and iscommitted to providing customers with reliable solution and satisfactory services. Through continuous development and expansion of our company, we now have customer around the world, especially in North America, South America, Europe, andAsia. Our products and services have been well received by customers. In the future, we will continue to provide customerswith safe and reliable FTTX solutions.
Q1: When can I get the quotation back? A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for special ones. Q2:How about the cable's quality ? A: Our factory has dug in this industry for many years and sold to many countries in the world. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant. We have a series of professional equipment and manufacturing instruments to make sure reliable quality of our products. Q3: How do l assure that you are a reliable supplier? A: We are the Assessed Supplier of . Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time. Q4: Could the OEM be accepted and what's the MOQ? A: Of course, your customization order is always welcomed. The MOQ Depends on different
