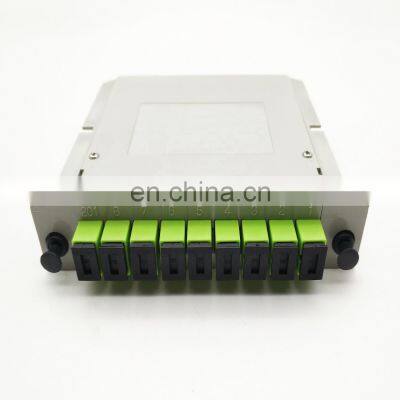

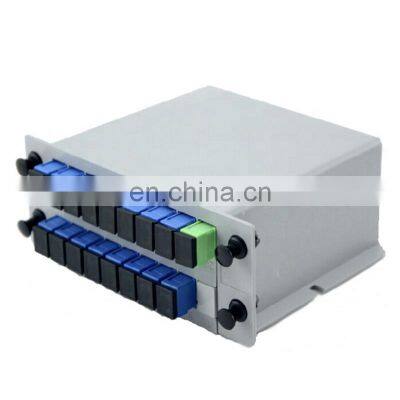

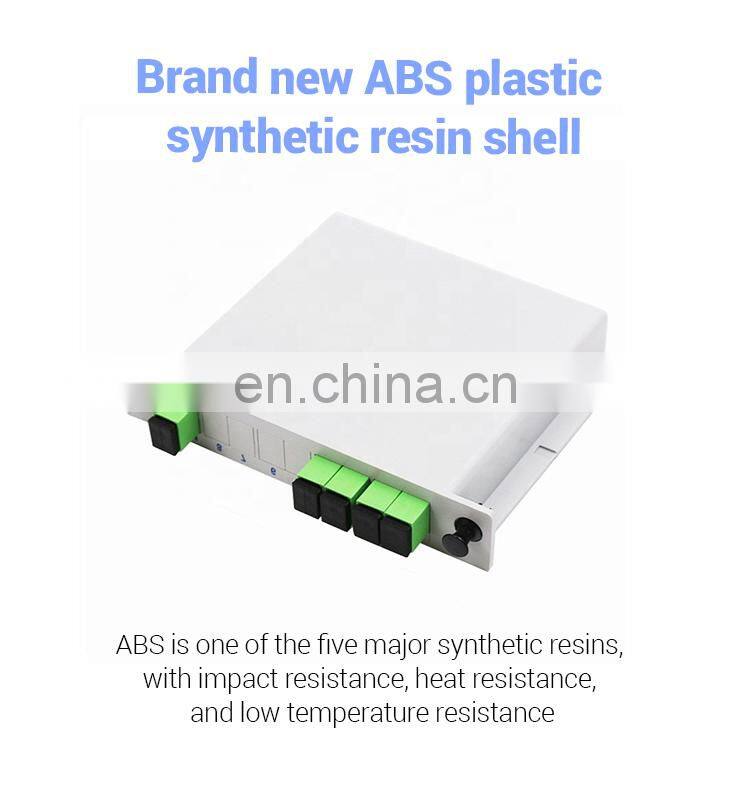

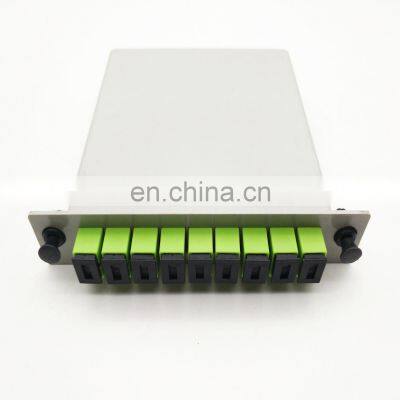

Ftth 1x16 Plc Lgx Box Splitter Steel Tube Pon sc Upc Plc 1m lc 1x16
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LGX Box Module PLC Repartiteur 1*8 PLC Fiber Optical Splitter Single Mode UPC APC Fiber Optic Plc SplitterNegotiableMOQ: 1 -
Repartiteur de Fibre LGX Box Module 1x4 Steel Tube Pon Fiber Optic PLC Splitter Fiber Optic PON Splitter Fiber SplitterNegotiableMOQ: 1
-
1x4 SC UPC LGX Box PLC Optical Splitter Single Mode LGX Module PLC Splitter 1x4 Plc SplitterNegotiableMOQ: 1
-
1x8 SC UPC/APC ABS Box Fiber PLC Splitter Single Mode Pembagi PLC ABS Module Optical PLC SplitterNegotiableMOQ: 1
-
High Quality Fbt 1 2 Fiber Optic Coupler OEM/ODM 1x2 5/95 10/90 30/70 40/60 50/50 20/80 Customized Split RatioNegotiableMOQ: 1
Product Description
Parameter |
Unit |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|||||||||
Fiber Type |
/ |
G.657A, or customized |
||||||||||||||
Operating Wavelength |
nm |
1260~1650 |
||||||||||||||
Insertion Loss |
P |
Max |
dB |
4.0 |
7.0 |
10.4 |
13.5 |
16.8 |
20.5 |
|||||||
S |
Max |
dB |
4.2 |
7.3 |
10.6 |
13.8 |
17.1 |
20.8 |
||||||||
PDL |
Max |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
||||||||
Loss Uniformity |
Max |
dB |
0.6 |
0.8 |
1.0 |
1.4 |
1.6 |
2.0 |
||||||||
Return Loss |
Min |
dB |
55(P Grade)/50(S Grade) |
|||||||||||||
Directivity |
Min |
dB |
55 |
|||||||||||||
Operating Temperature |
℃ |
-40 ~ +85 |
||||||||||||||
Storage Temperature |
℃ |
-40 ~ +85 |
||||||||||||||
Dimension(L×W×H) |
mm |
130x100×25 |
130×100×50 |
130x100x102 |
130x100x206 |
|||||||||||

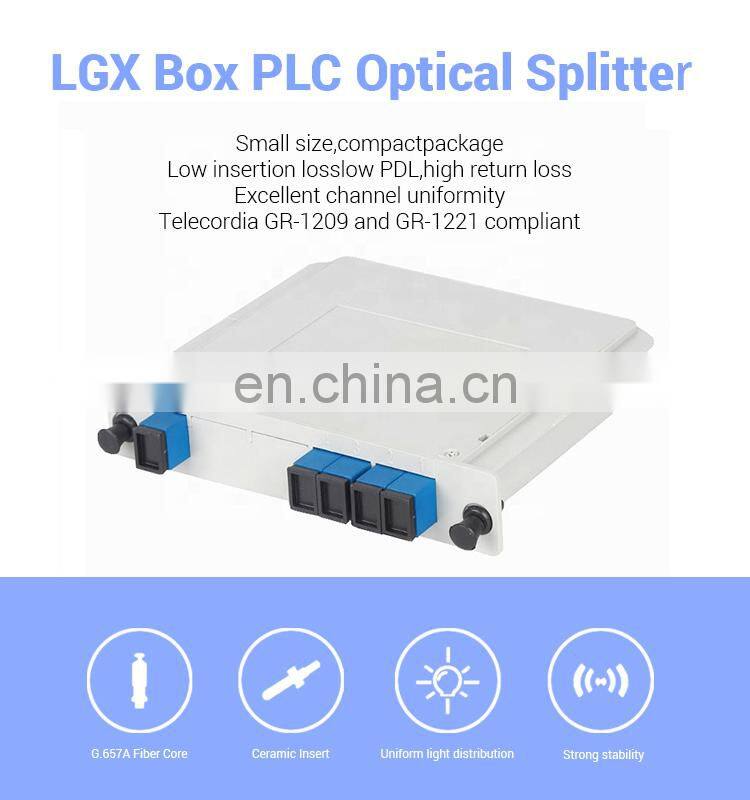

1.Uniform light distribution The signal can be evenly distributed to users

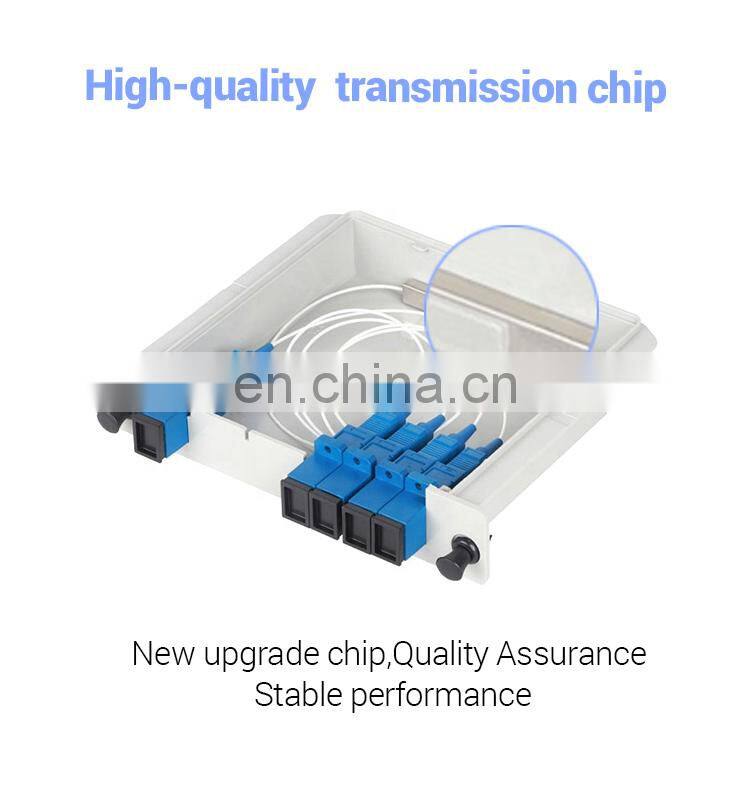

2. New upgrade chip,Quality Assurance Stable performance

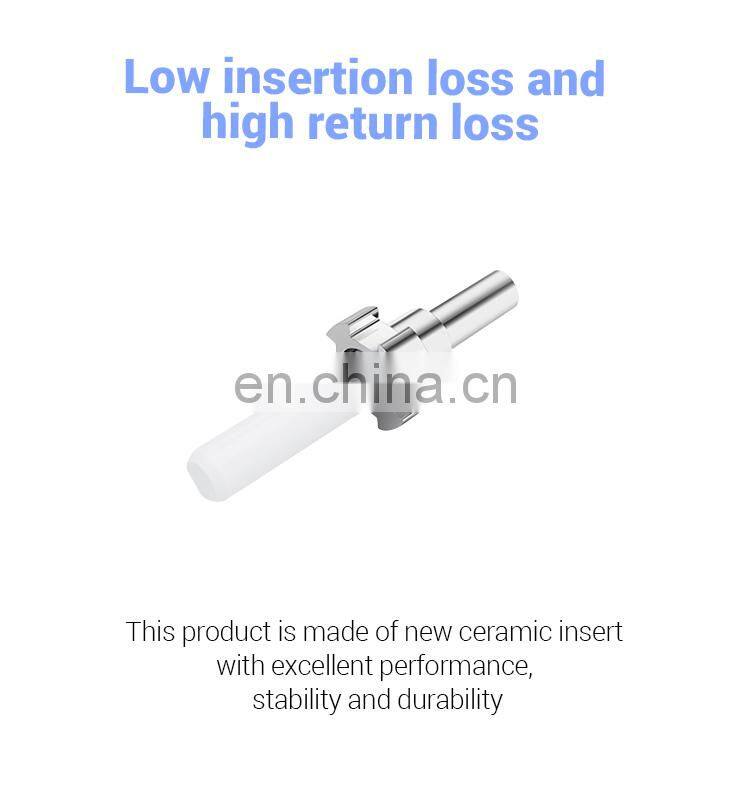

3.This product is made of new ceramic insert with excellent performance, stability and durability
4. Low insertion loss,High back reflection Low polarization dependent loss
Recommend Products

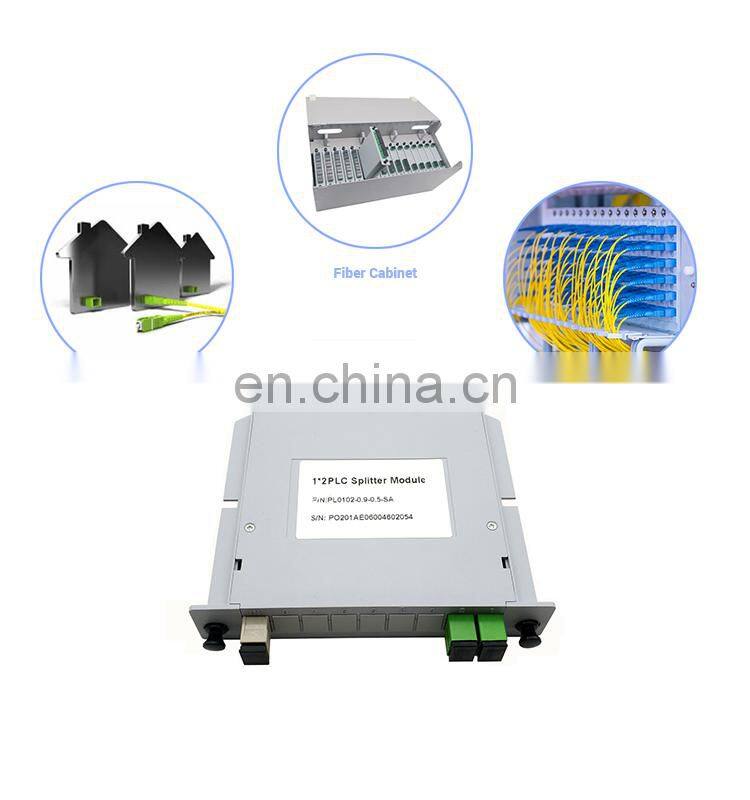

Application Scenarios
Packaging and Shipping
1, 1x16 optical plc splitter is packed 1psc per PE bag, and the test result stick in the package bag,
2, certain pcs 1x16 optical plc splitter packed in a standard paper carton, carton size is 40*40*40cm,
3, the paper cartons could packed 27 or 36 cartons per pallets.
4, shipment are available from FedEX, DHL, UPS, TNT, etc. international express to airfreight and seafreight.
our services
1.Advanced production and testing equipment
2.Professional manufacturer, 100% tested.
3.Full compliance with ISO 9001:2008 quality management system
4.Our company has experienced professional team
5.Provide reliable solutions and satisfactory services
6.Warmly services with careful attentions.
7.Can provide your specific inquiry within 24 hours. Advanced production and testing equipment
Our Company
Our company has rich experienced professional team and is committed to providing customers with reliable solution and satisfactory services. Through continuous development and expansion of our company, we now have customer around the world, especially in North America, South America, Europe, and Asia. Our products and services have been well received by customers. In the future, we will continue to provide customers with safe and reliable FTTX solutions.
WeUnion Communication Technology Co., Ltd. is a professional manufacturer focuses on development, production, and sales of fiber telecommunication product. We provide Fiber Optic Cable, Fiber Patch cord, fiber pigtail, Optic PLC splitter, Fiber Distribution Boxes and relevant products which are widely used in FTTX, LAN, WAN, G-Pon, E-Pon Project. Our company has advance production and test equipments, strict production and quality control system, and stable supply chain. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant, also compliant with our customers' varied requirements.
FAQ
Q1. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
Q2. What about the MOQ?
A: Most products have a minimum order quantity, but some stocks can accept small orders.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT international express service. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: How long is the guarantee of the product?
A: According to the type of product,We offer 1-3 years warranty to our formal products.
Q5: What about delivery time?
A: We need 1-3 days to handling the sample, and 5-15 days to process our normal goods.
