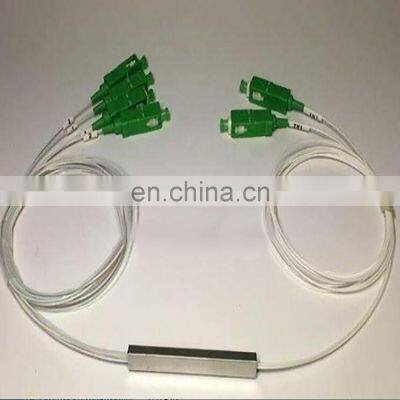

2*4 Fiber Optic Mini Module Blockness Type PLC Optical Splitter 0.9mm SC/LC UPC/APC Connector Singlemode PLC Splitter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Unionfiber 1x2 1x4 SC UPC Mini Mode SM With SC Connector Mini-module PLC Splitter 1 * 4 Mini Plc Spliter 1x4 UpcNegotiableMOQ: 1 -
Support Customizaiton Service Splitter Plc sc Apc Fiber Optic Splitter Sc/apc 1x4 0.9mm Diameter 1m Length Plastic PackageNegotiableMOQ: 1
-
Fiber Optic Equipment Plc Splitter 1x2 1x4 1x8 SC UPC/APC LGX Box Fiber PLC Splitter Single Mode LGX Module Optical PLC SplitterNegotiableMOQ: 1
-
FTTH 1*64SC UPC Bare Type Fiber Optic Equipment Used for FDB PLC Splitter Single Mode ABS Box Module Optical PLC Optic SplitterNegotiableMOQ: 1
-
SC/LC UPC/APC Connector Singlemode PLC Splitter Good Quality Nice Selling 2*4 Fiber Optic Mini Type PLC Optical Splitter 0.9mmNegotiableMOQ: 1
Parameter |
Unit |
1*2 |
1*4 |
1*8 |
1*16 |
1*32 |
1*64 |
|||||||||
Fiber Type |
/ |
G.657A or customized |
||||||||||||||
Operating Wavelength |
nm |
1260~1650 |
||||||||||||||
Insertion
Loss
|
P |
Max |
dB |
4.0 |
7.0 |
10.4 |
13.5 |
16.8 |
20.5 |
|||||||
S |
Max |
dB |
4.2 |
7.3 |
10.6 |
13.8 |
17.1 |
20.8 |
||||||||
PDL |
Max |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
||||||||
Loss Uniformity |
Max |
dB |
0.6 |
0.8 |
1.0 |
1.4 |
1.6 |
2.0 |
||||||||
Return Loss |
Min |
dB |
55(P Grade)/50(S Grade) |
|||||||||||||
Directivity |
Min |
dB |
55 |
|||||||||||||
Operating Temperature |
℃ |
-40~+85 |
||||||||||||||
Storage Temperature |
℃ |
-40~+85 |
||||||||||||||
Dimension(L*W*H) |
mm |
60*7*4 |
60*12*4 |
80*20*6 |
100*40*6 |
|||||||||||
1.Low insertion loss, high return loss, Good Repeatability and interchange ability
2.This product is made of new ceramic insert with excellent performance, stability and durability
3.The products conform to the international IEC standard, and are appreciated by the majority of
engineering wiring companies.

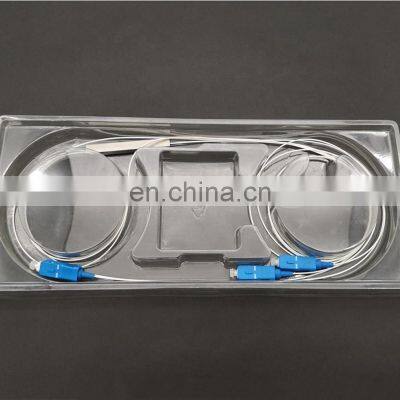

4.PVC self sealed bag packaging. Equipped with dust cap to ensure communication quality is not affected
5.Each pigtail is strictly testedtest report is packed with product
1.Advanced production and testing equipment
2.Professional manufacturer, 100% tested.
3.Full compliance with ISO 9001:2008 quality management system
4.Our company has experienced professional team
5.Provide reliable solutions and satisfactory services
6.Warmly services with careful attentions.
7.Can provide your specific inquiry within 24 hours. Advanced production and testing equipment
WeUnion Communication Technology Co., Ltd. is a professional manufacturer
focuses on development,production, and sales of fiber telecommunication product.
We provide Fiber Optic Cable, Fiber Patch cord, fiber pigtail, Optic PLC splitter, Fiber
Distribution Boxes and relevant products which are widely used in FTTX, LAN, WAN, G-Pon,
E-Pon Project. Our company has advance production and test equipments, strict production
and quality control system, and stable supply chain. We are fully compliant with ISO9001: 2008
quality management system, we guarantee that our products areIEC60794 and
Telcordia-GR-326-Core standard compliant, also compliant with our customers’ varied requirements.
Our company has rich experienced professional team and iscommitted to providing
customers with reliable solution and satisfactory services. Through continuous development and
expansion of our company, we now have customer around the world, especially in North America,
South America, Europe, andAsia. Our products and services have been well received by customers.
In the future, we will continue to provide customerswith safe and reliable FTTX solutions.
Q1: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for special ones.
Q2:How about the cable's quality ?
A: Our factory has dug in this industry for many years and sold to many countries in the world. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant. We have a series of professional equipment and manufacturing instruments to make sure reliable quality of our products.
Q3: How do l assure that you are a reliable supplier?
A: We are the Assessed Supplier of . Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.
Q4: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ Depends on different
