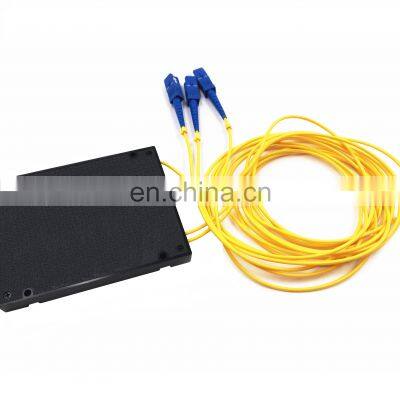

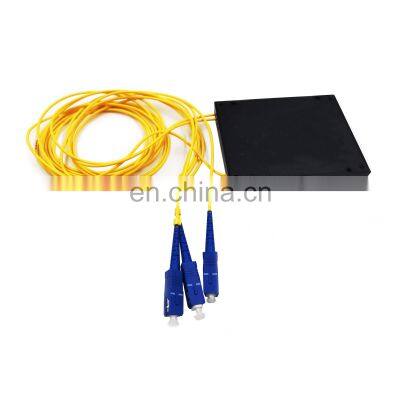

1x2 SC UPC ABS Box Single Mode Fiber Optic PLC Splitter Fiber Splitter ABS Box Module sc upc 1x2 abs box plc splitter
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- 1x2 SC APC ABS Box Single Mode Fiber Optic PLC Splitter Fasersplitter ABS Box Module 1x2 plc sc splitter
- 1x4 SC APC ABS Box Single Mode Fiber Optic PLC Splitter Pemisah Serat ABS Box Module 1x4 abs plc splitter
- 1x8 SC APC ABS Box Single Mode Fiber Optic PLC Splitter Fasersplitter ABS Box Module 1x8 abs box plc splitter
- 1x16 SC UPC ABS Box Single Mode Fiber Optic PLC Splitter Fasersplitter ABS Box Module 1x16 plc splitter
- 1x16 SC APC ABS Box Single Mode Fiber Optic PLC Splitter ABS Box Module 1x16 abs box plc
- 1x32 SC APC ABS Box Single Mode Fiber Optic PLC Splitter ABS Box Module 1x32 abs plc splitter
Product Description
Product Description
Parameter | Unit | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |||||||||||
Fiber Type | / | G.657A, or customized | ||||||||||||||||
Operating Wavelength | nm | 1260~1650 | ||||||||||||||||
Insertion Loss | P | Max | dB | 4.0 | 7.0 | 10.4 | 13.5 | 16.8 | 20.5 | |||||||||
S | Max | dB | 4.2 | 7.3 | 10.6 | 13.8 | 17.1 | 20.8 | ||||||||||
PDL | Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | ||||||||||
Loss Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 | ||||||||||
Return Loss | Min | dB | 55(P Grade)/50(S Grade) | |||||||||||||||
Directivity | Min | dB | 55 | |||||||||||||||
Operating Temperature | ℃ | -40 ~ +85 | ||||||||||||||||
Storage Temperature | ℃ | -40 ~ +85 | ||||||||||||||||
Dimension(L×W×H) | mm | 100×80×10 | 120×80×18 | 141×115×18 | ||||||||||||||
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each. |
Parameter | Unit | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |||||||||||
Fiber Type | / | G.657A, or customized | ||||||||||||||||
Operating Wavelength | nm | 1260~1650 | ||||||||||||||||
Insertion Loss | P | Max | dB | 4.0 | 7.3 | 10.6 | 13.9 | 17.2 | 20.8 | |||||||||
S | Max | dB | 4.2 | 7.5 | 11.0 | 14.5 | 17.5 | 21.0 | ||||||||||
PDL | Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | ||||||||||
Loss Uniformity | Max | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | ||||||||||
Return Loss | Min | dB | 55(P Grade)/50(S Grade) | |||||||||||||||
Directivity | Min | dB | 55 | |||||||||||||||
Operating Temperature | ℃ | -40 ~ +85 | ||||||||||||||||
Storage Temperature | ℃ | -40 ~ +85 | ||||||||||||||||
Dimension(L×W×H) | mm | 100×80×10 | 120×80×18 | 141×115×18 | ||||||||||||||
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each. |
- SC UPC 1x2 ABS Box PLC Splitter
Features:
Small size, compact package, Low insertion loss, Low PDL, High return loss, Excellent channel uniformity, Telcordia GR-1209 and
GR-1221 Compliance
Application :
FTTX networks, PON networks, LAN networks, CATV Systems
Small size, compact package, Low insertion loss, Low PDL, High return loss, Excellent channel uniformity, Telcordia GR-1209 and
GR-1221 Compliance
Application :
FTTX networks, PON networks, LAN networks, CATV Systems
Details Images
Model Number: ABS Box PLC Splitter
Use:FTTH
Use:FTTH
Packing: Carton Box
Fiber Type:SM G657A1, G657A2
Model:1*2
Connector:SC UPC
Model:1*2
Connector:SC UPC
Length:1m/1.5m/customized
Type:ABS Box
Color: Yellow, Blue
Type:ABS Box
Color: Yellow, Blue
Product Usage
1, The fiber optic splitter PLC have mini type, LGX type, Rack-mounted type and Tray-Assebmly type for customer's chocie
2, All the type fiber optic splitter have channel 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 1x128, and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64, 2x128.
3, The mini type Fiber Opitc Splitter PLC could be with connector and also could be without connector.
4, The Connector type for fiber optic splitter PLC are SC, LC, FC, ST, etc.
5, Special Channel like, 1x3, 1x5, 1x12 1x24, etc. are also available for special design.
Related Products
Packing&Shipping
1, sc upc 1x2 abs box plc splitter is packed in carton box, and the test result stick in the package bag,
2, certain pcs sc upc 1x2 abs box plc splitter packed in a standard paper carton, carton size is 40*40*40cm,
3, the paper cartons could packed 27 or 36 cartons per pallets.
4, shipment are available from FedEX, DHL, UPS, TNT, etc. international express to airfreight and seafreight.
3, the paper cartons could packed 27 or 36 cartons per pallets.
4, shipment are available from FedEX, DHL, UPS, TNT, etc. international express to airfreight and seafreight.
Company Introduction
Our company has rich experienced professional team and is committed to providing customers with reliable solution and satisfactory services. Through continuous development and expansion of our company, we now have customer around the world, especially in North America, South America, Europe, and Asia. Our products and services have been well received by customers. In the future, we will continue to provide customers with safe and reliable FTTX solutions.
WeUnion Communication Technology Co., Ltd. is a professional manufacturer focuses on development, production, and sales of fiber telecommunication product. We provide Fiber Optic Cable, Fiber Patch cord, fiber pigtail, Optic PLC splitter, Fiber Distribution Boxes and relevant products which are widely used in FTTX, LAN, WAN, G-Pon, E-Pon Project. Our company has advance production and test equipments, strict production and quality control system, and stable supply chain. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant, also compliant with our customers' varied requirements.
FAQ
Q1: When can I get the quotation back?
A:Generally, quotes will be replied within 24 hours or faster(weekends not included), however, a few of days would be taken for special ones.
Q2:How about the cable's quality ?
A: Our factory has dug in this industry for many years and sold to many countries in the world. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant. We have a series of professional equipment and manufacturing instruments to make sure reliable quality of our products.
Q3: How do l assure that you are a reliable supplier?
A: We are the Assessed Supplier of . Alibaba as the third party to verify our factory and office to confirm we are a real and reliable supplier. If you are willing to verify that through the phone or video, you are welcome at any time.
Q4: Could the OEM be accepted and what's the MOQ?
A: Of course, your customization order is always welcomed. The MOQ Depends on different items, each item has its own minimum quantity. Your satisfaction is our maximum motivation.
