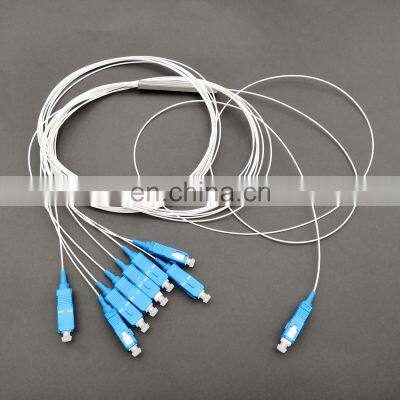

1x8 SC UPC Single Mode With SC Connector Mini-module PLC Splitter sc Upc Plc Splitter 1x8 Mini Plc Splitter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1990
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiber Optic PLC Splitter SC/UPC SC/APC Connector Single Mode SM G657A1 Splitter 1x32 Fiber Optic PLCSplitterNegotiableMOQ: 1 -
Fiber Optic PLC Splitter SC/UPC Connector Single Mode SM G657A1Mini LGX ABS Box SC UPC PLC SplitterNegotiableMOQ: 1
-
1x4 SC APC Mini Mode SM With SC Connector Mini-module PLC Splitter Fiber 1x4 Plc SplitterNegotiableMOQ: 1
-
1x8 SC APC Mini Mode SM With SC Connector Mini-module PLC Splitter 1 * 8 Plc Splitter sc ApcNegotiableMOQ: 1
-
1x2 SC UPC Mini Mode SM With SC Connector Mini-module Pemisah Serat PLC Splitters 1x2 Plc Splitter UpcNegotiableMOQ: 1
Product Description
Parameter |
Unit |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|||||||||||
Fiber Type |
/ |
G.657A, or customized |
||||||||||||||||
Operating Wavelength |
nm |
1260~1650 |
||||||||||||||||
Insertion Loss |
P |
Max |
dB |
4.0 |
7.0 |
10.4 |
13.5 |
16.8 |
20.5 |
|||||||||
S |
Max |
dB |
4.2 |
7.3 |
10.6 |
13.8 |
17.1 |
20.8 |
||||||||||
PDL |
Max |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
||||||||||
Loss Uniformity |
Max |
dB |
0.6 |
0.8 |
1.0 |
1.4 |
1.6 |
2.0 |
||||||||||
Return Loss |
Min |
dB |
55(P Grade)/50(S Grade) |
|||||||||||||||
Directivity |
Min |
dB |
55 |
|||||||||||||||
Operating Temperature |
℃ |
-40 ~ +85 |
||||||||||||||||
Storage Temperature |
℃ |
-40 ~ +85 |
||||||||||||||||
Dimension(L×W×H) |
mm |
40×4×4 |
50×7×4 |
60×12×4 |
||||||||||||||
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each. |
||||||||||||||||||
Parameter |
Unit |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|||||||||||
Fiber Type |
/ |
G.657A, or customized |
||||||||||||||||
Operating Wavelength |
nm |
1260~1650 |
||||||||||||||||
Insertion Loss |
P |
Max |
dB |
4.0 |
7.3 |
10.6 |
13.9 |
17.2 |
20.8 |
|||||||||
S |
Max |
dB |
4.2 |
7.5 |
11.0 |
14.5 |
17.5 |
21.0 |
||||||||||
PDL |
Max |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
||||||||||
Loss Uniformity |
Max |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
||||||||||
Return Loss |
Min |
dB |
55(P Grade)/50(S Grade) |
|||||||||||||||
Directivity |
Min |
dB |
55 |
|||||||||||||||
Operating Temperature |
℃ |
-40 ~ +85 |
||||||||||||||||
Storage Temperature |
℃ |
-40 ~ +85 |
||||||||||||||||
Dimension(L×W×H) |
mm |
40×4×4 |
50×7×4 |
60×12×4 |
||||||||||||||
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each. |
||||||||||||||||||
1.Uniform light distribution The signal can be evenly distributed to users
2. New upgrade chip,Quality Assurance Stable performance
3.This product is made of new ceramic insert with excellent performance, stability and durability
4. Low insertion loss,High back reflection Low polarization dependent loss
Related Products
Application Scenarios
Packing&Shipping

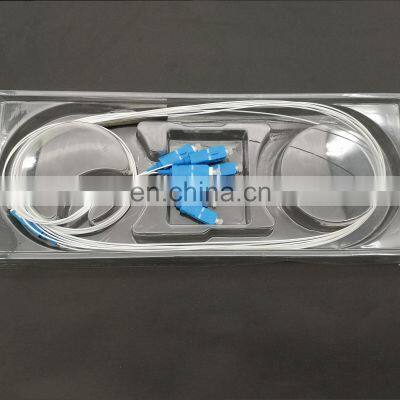

1, 1x8 fiber optic splitter is packed in PE bag/carton box, and the test result stick in the package bag,
2, certain pcs 1x8 fiber optic splitter packed in a standard paper carton, carton size is 40*40*40cm,
3, the paper cartons could packed 27 or 36 cartons per pallets.
4, shipment are available from FedEX, DHL, UPS, TNT, etc. international express to airfreight and seafreight.
our services
1.Advanced production and testing equipment
2.Professional manufacturer, 100% tested.
3.Full compliance with ISO 9001:2008 quality management system
4.Our company has experienced professional team
5.Provide reliable solutions and satisfactory services
6.Warmly services with careful attentions.
7.Can provide your specific inquiry within 24 hours. Advanced production and testing equipment
Company Introduction
Our company has rich experienced professional team and is committed to providing customers with reliable solution and satisfactory services. Through continuous development and expansion of our company, we now have customer around the world, especially in North America, South America, Europe, and Asia. Our products and services have been well received by customers. In the future, we will continue to provide customers with safe and reliable FTTX solutions.
WeUnion Communication Technology Co., Ltd. is a professional manufacturer focuses on development, production, and sales of fiber telecommunication product. We provide Fiber Optic Cable, Fiber Patch cord, fiber pigtail, Optic PLC splitter, Fiber Distribution Boxes and relevant products which are widely used in FTTX, LAN, WAN, G-Pon, E-Pon Project. Our company has advance production and test equipments, strict production and quality control system, and stable supply chain. We are fully compliant with ISO9001: 2008 quality management system, we guarantee that our products are IEC60794 and Telcordia-GR-326-Core standard compliant, also compliant with our customers' varied requirements.
