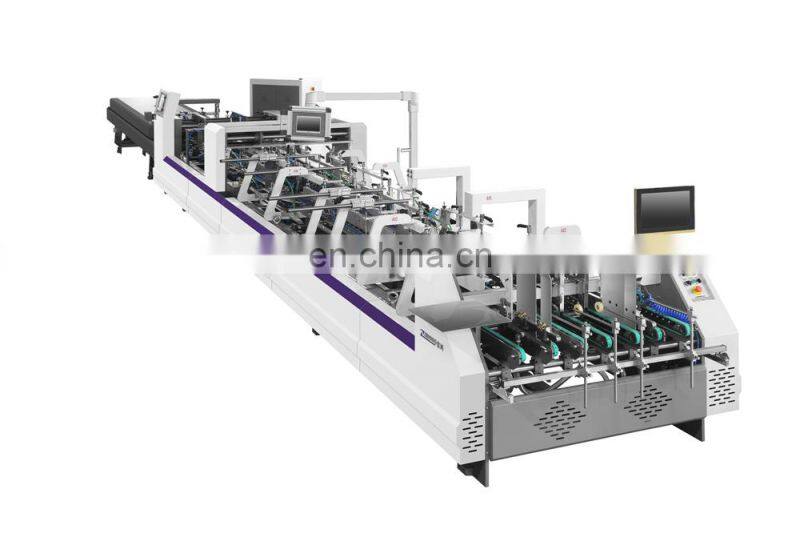

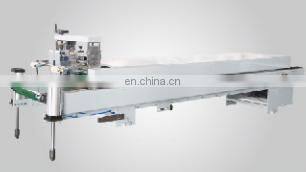

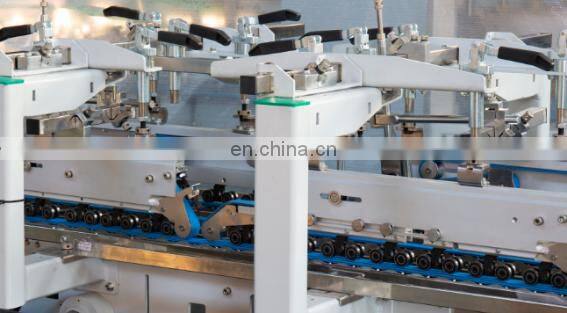

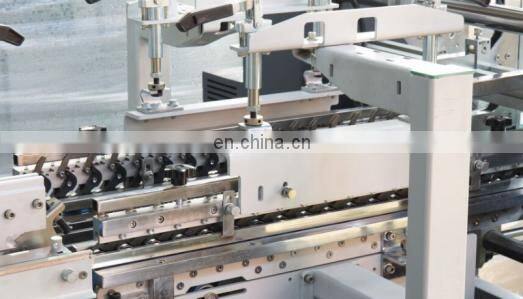

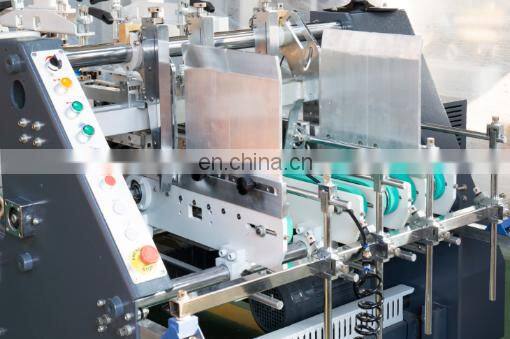

1100-Straight Line-double Side-lock Bottom-4&6 Corner Folding Gluing Machine

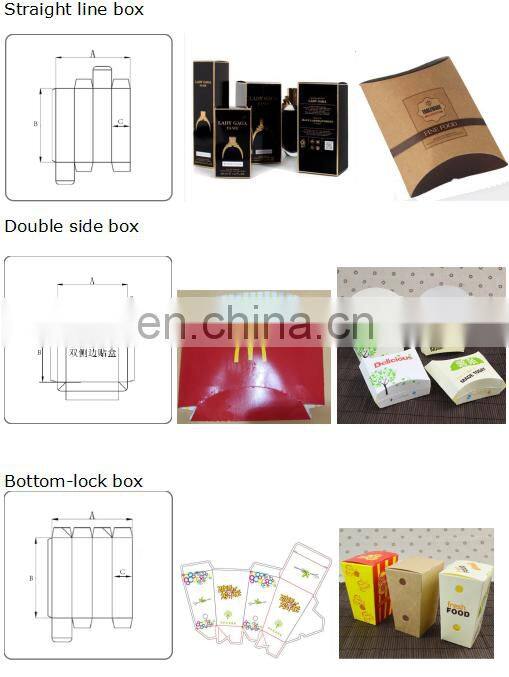

1100-Straight line-double side-lock bottom-4&6 corner

Folding Gluing Machine

1. Characteristics:

1.Driving by V-ribbed belt,ensure smooth and accurate running.

2.Inverter driving,stable and power saving.

3.Use electric adjust,easy operate.

4.Automatic continuous feeding,use multiple belt with vibrating motor ,to keep the feeding stable.

5.Automatic counting and kicking,quantity can preset.

6.Conveyer pressure adjustable according to the box to ensure best quality.

7.The machine is configured with remote control,Remote troubleshooting, update the program.

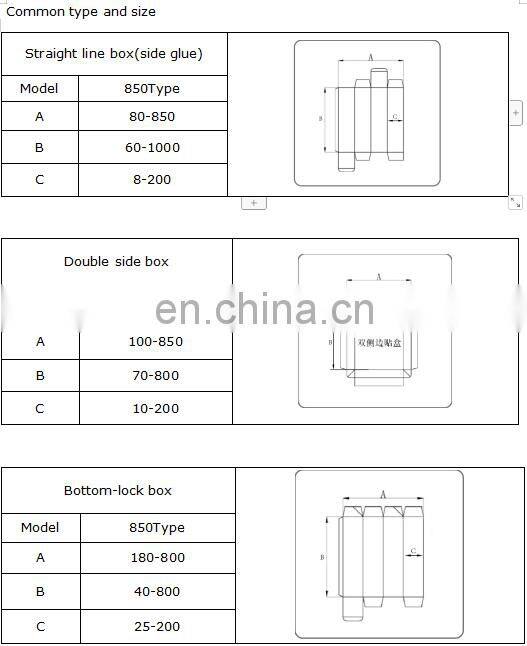

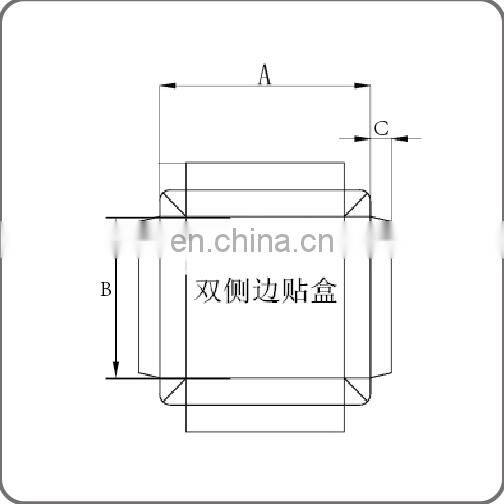

2. Main technical parameter:

Machine configuration

3. Feature:

1.Feeder Section

Adjustable electronic pile vibrator.Feeder section equipped with three pieces feeding knife, adjust the asymmetrical lengths as per the box sample.

Side feed gates fully adjustable to the width of the blank.

Configure the servo motor to control the feed.

feeder section with vacuum

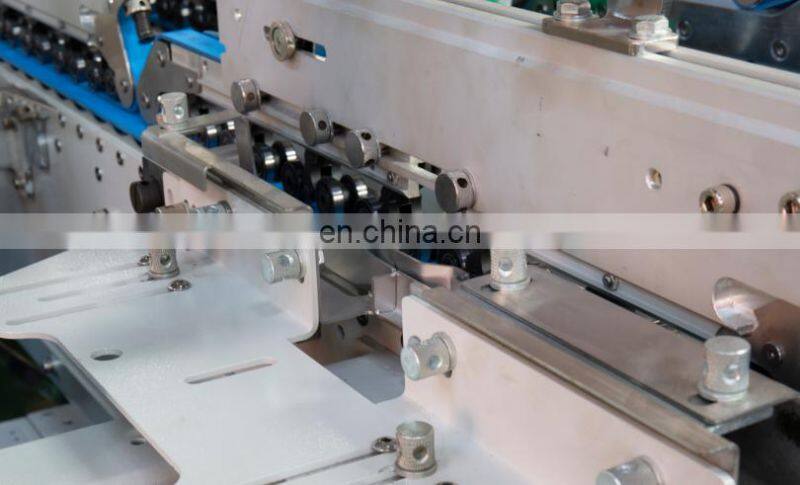

2.Paper Alignment Section:

Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.

Pressure can be adjusted up and down to accommodate different paper board thickness.

The guide rail control by motor

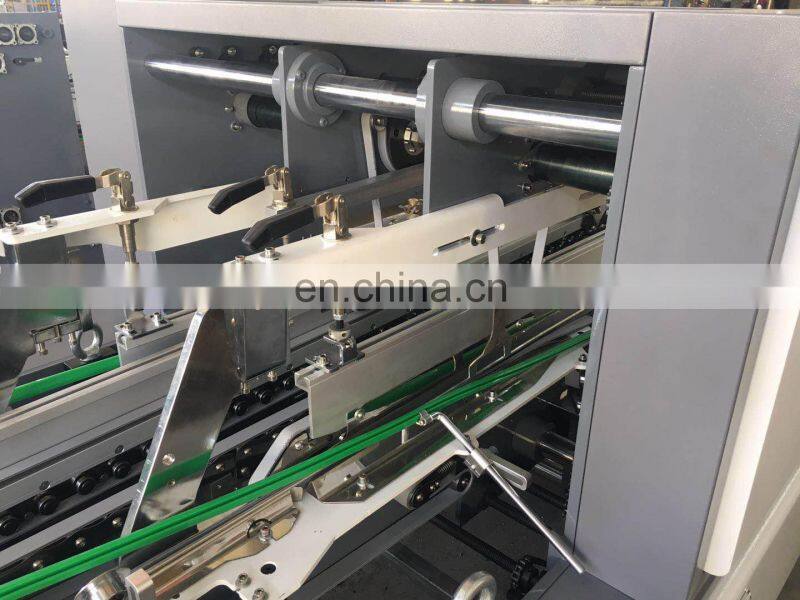

3.Pre-fold Section:

 The pre-fold section has the advantage to make the box more plain and easy to open,even in some case the scoring is not very well,easy for automatic packing production line .

Left hand glue flap pre-folder up to 180º.

3rd crease pre-folding set up to 165º.

1st and 3rd crease openers.

The guide rail control by motor

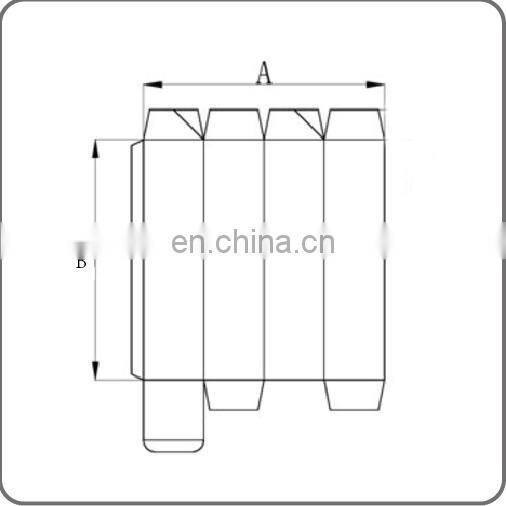

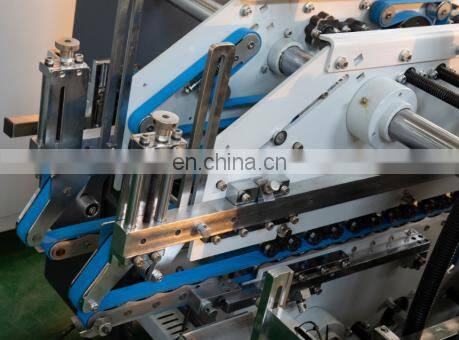

4.Bottom Lock Section

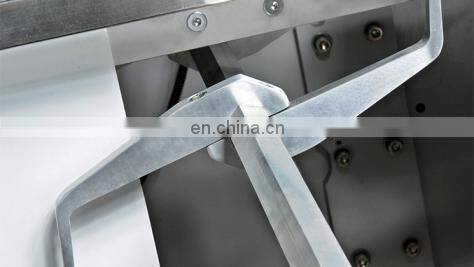

 Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.

Set of accessories for B-type lock bottom.

The guide rail control by motor

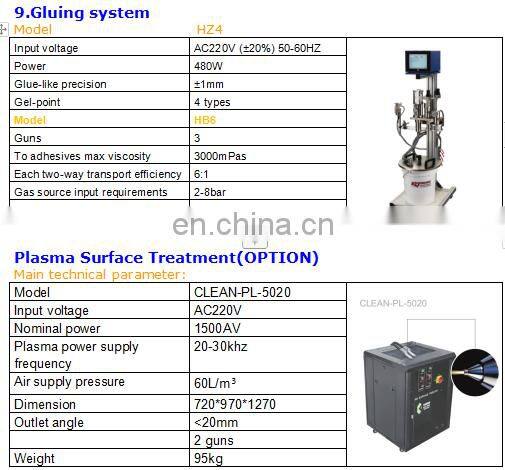

5.Down glue

Tow lower gluing tank

Easy to remove and clean.

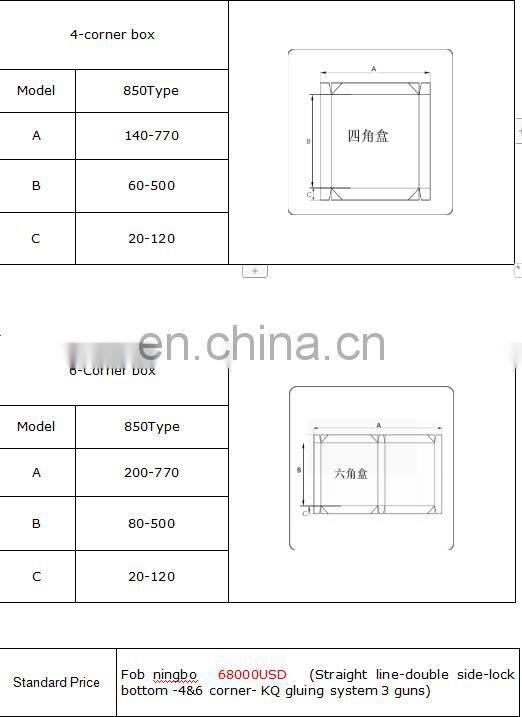

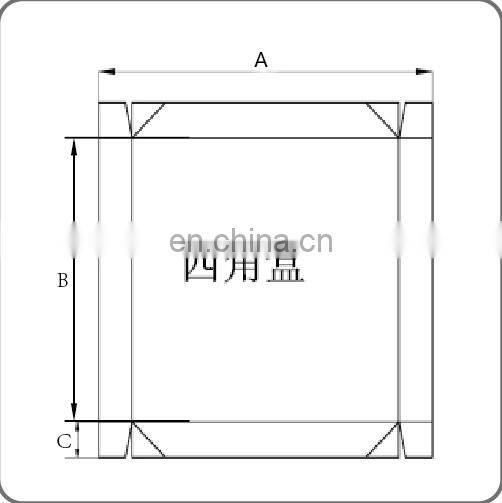

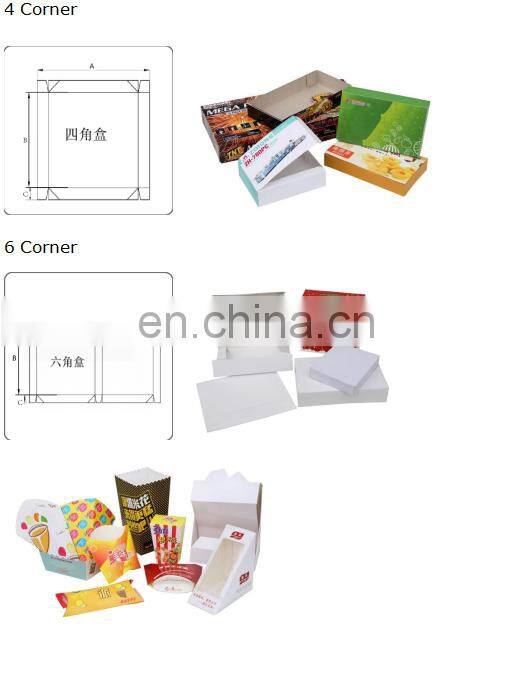

6.4&6-corner device (Back fold Option)

Motorized and untimed electronic back folding system with intelligent servo motor technology.

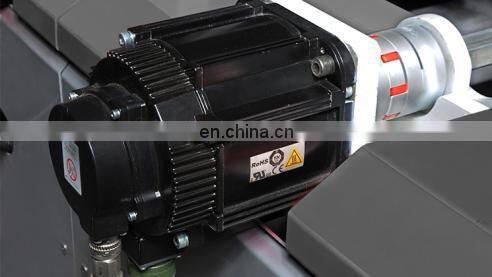

Servo-motor of back folding device

Two driven shafts allow a precise fold of the rear flaps. Easy to setup through the main touchscreen.

7.Folding Section

 Smooth and accurate folding of 2nd and 4th creases.

Outer folding belts adjustable up to 180º

 The guide rail control by motor

 The up belt control by shaft, it’s more easy to do E/F/N flute.

8.Trombone Section

Upper and lower drive mechanism for lengthwise adjustment.

Equipped with automatic belt tension-adjusting system.

 Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow.

9.Press section

Manual and Automatic speed variation in coordination with a photocell.

Upper section moves back and forward, adaptable to different box lengths.

 Pneumatic pressure adjustment

10.Squaring section

Motorized and pneumatic squaring device on press section.Two carriers with transport belts allow a perfect flow of boxes moving to the pressing station.

Rear stack corrector, that allows to square the boxes while falling on the lower conveyor.
