Home > Instruments & Meters > Test Instrument > Test Machine > Insulation Oil Dielectric Strength Tester, Oil Breakdown Voltage Testing Device
Insulation Oil Dielectric Strength Tester, Oil Breakdown Voltage Testing Device
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality BF-03 Kinematics Viscosity Tester/Testing EquipmentNegotiableMOQ: 1 -
Convenient Installation And Maintenance Test Oil Cup/Flash Point Tester/Oil Testing DeviceNegotiableMOQ: 1
-
Easy Operation Closed Cup Flash Point Tester /Oil Tester For Testing Flash Point Of Petroleum ProductsNegotiableMOQ: 1
-
Test Oil Cup/Flash Point Tester /Oil Testing Device Conforms To The Standards Of ASTM D92 And GB/T3536NegotiableMOQ: 1
-
High Thermal Efficiency Standard Test Oil Cup/Open Cup Flash Point Tester/Oil TesterNegotiableMOQ: 1
Products Description

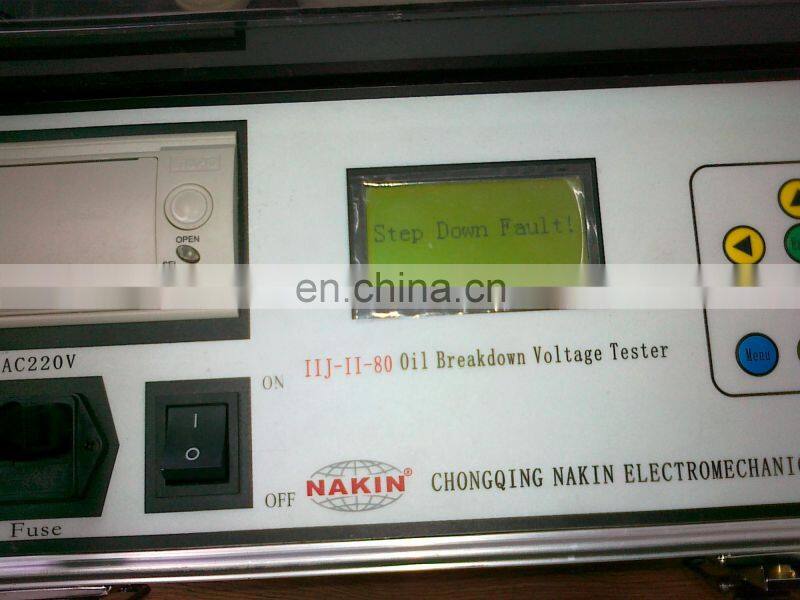

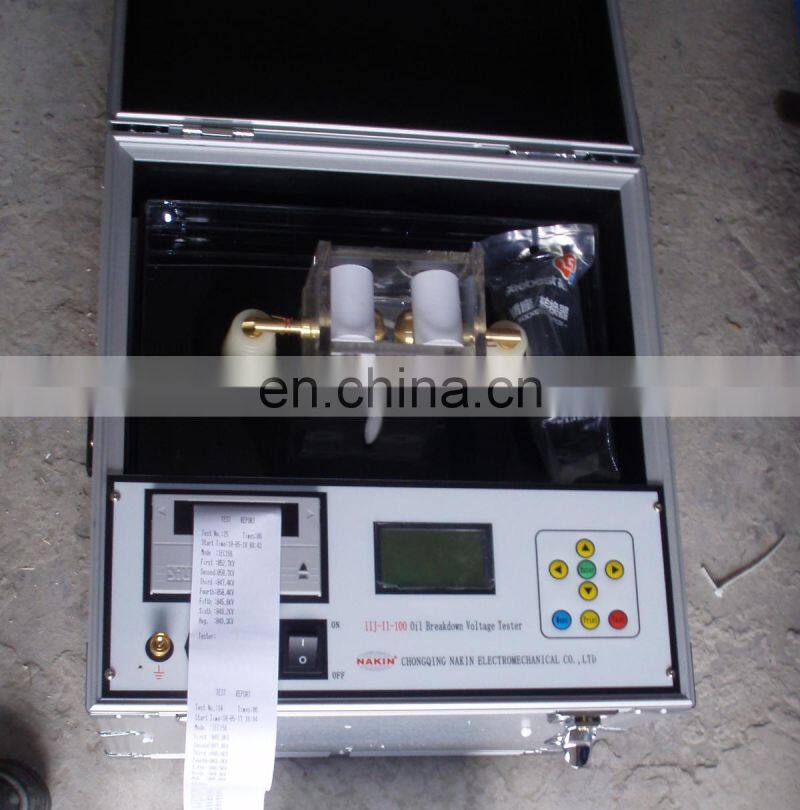

In the electric power industry, insulating oil is wildly applied in electric equipments. The dielectric strength is a comprehensive index for insulating oil. Series IIJ-II breakdown voltage tester is special for testing insulating oil’s dielectric strength. IIJ-II Automatic oil tester is designed according to international standard of IEC156. Adopts industrial single chip as controller, apply large integrate circuit, new type I/O interface, LCD displayer, combined with special testing and anti-jamming technologies which greatly improve the tester’s performance.
Technical Parameters
1. Power supply: AC220V±10%, 50Hz
2. Output voltage: 0～100KV(80KV、100KV）
3. Capacity: 1.2KVA(1.6KVA、2.0KVA)
4. Speed of pressure rise: about 2KV/S
5. Voltage test precision: ±3%
6. Breakdown sensitivity: <2KV
7. Wave difference: ≤3%
8. Time of breakdown: ≤10ms
9. Working condition: temperature: 0℃～40℃ humidity The biggest comparatively humidity85%
10. Reserve circumstance
Temperature: -20℃～60℃ humidity The biggest comparatively humidity75%
Working altitude: <1500m (if over 1500m can be designed specially)
11. Dimension: 450mm*460mm*460mmWeight: 40kgs
2. Output voltage: 0～100KV(80KV、100KV）
3. Capacity: 1.2KVA(1.6KVA、2.0KVA)
4. Speed of pressure rise: about 2KV/S
5. Voltage test precision: ±3%
6. Breakdown sensitivity: <2KV
7. Wave difference: ≤3%
8. Time of breakdown: ≤10ms
9. Working condition: temperature: 0℃～40℃ humidity The biggest comparatively humidity85%
10. Reserve circumstance
Temperature: -20℃～60℃ humidity The biggest comparatively humidity75%
Working altitude: <1500m (if over 1500m can be designed specially)
11. Dimension: 450mm*460mm*460mmWeight: 40kgs
