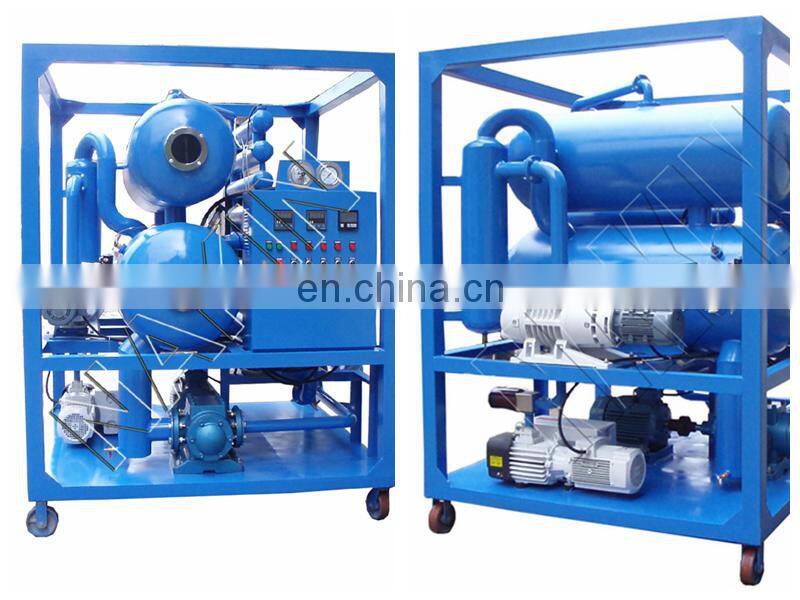

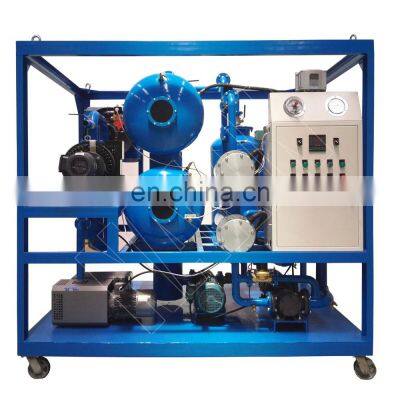

Power Transformer Oil Ultra High Voltage Vacuum Purifier Machine

Name: Power Transformer Oil Ultra High Voltage Vacuum Purifier Machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

ZJA UHV Insulation Oil Purifier Application:

ZJA series UHV oil purifier is mainly used in 220KV / 330KV / 500KV / 750KV / 1000KV ultra-high voltage and UHV grid transmission and transformation projects. Due to the high safety characteristics of ultra-high voltage and ultra-high voltage power grids, the insulation oil in transformers, transformers and reactors is extremely demanding.

ZJA series oil purifier has super strong dehydration, impurity-removal and harmful gas removal capabilities, and has high safety and stable operation capabilities. The equipment is equipped with first-class vacuum pump system, oil transfer system and filtration system.

The filter element with high beta value imported filter material has strong oil particle purification ability. The cleanliness of the filtered oil product is above NAS1638-3, the water content is lower than 3PPM, the gas content is lower than 0.01% (methane and hydrogen Harmful gases such as acetylene are zero), and the breakdown voltage of oil products is greater than 75KV, all oil index fully meet the inter national UHV requirements.

This machine also has the functions of vacuum drying, vacuum oil injection, and hot oil circulation. It can also be used as a separate vacuum pumping unit to the transformer and power equipment.

Specification

ZJA UHV Insulation Oil Purifier Features:

◆The vacuum system uses the roots pump as the main pump and the rotary vane vacuum pump as the primary pump. Fast start-up, large pumping speed, stable performance, and high ultimate vacuum of less than 5Pa.

◆Double horizontal vacuum separators, combined with Duplex-Stereo film evaporation technology

◆ Strong ability to remove impurities: ultra-large area cylindrical precision filter element, with high filtration accuracy, easy installation and replacement.

◆ Low-load heating: Adopt advanced internal and external double-tube heat radiation indirect heating technology.

◆ Automatic control to realize unattended, safe and stable working.

◆ Safety interlock protection for oil pump, vacuum pump, heater to keep safely working

◆Low noise, easy operation, long maintenance interval, low energy consumption, low operating cost

◆ It can be used together with the insulation oil regeneration device, which has the effect of decoloring, deacidification, deoxidation and removing free carbon and other harmful substances from the oil.

Company Profile

CHONGQING NAKIN ELECTROMECHANICAL CO.,LTD is joint-stock high-tech enterprise from Chongqing China. We are professional in various oil purifier equipment manufacturing, main products cover vacuum transformer oil purifier, turbine oil treatment, hydraulic oil filtration, waste engine oil regeneration system etc. Since the foundation of our company, we always devote our efforts to produce good quality products. Relying on strong and completely technical supports, advanced producing equipment, perfect quality inspection method, fast and outstanding after-service, our company has developed into a national renowned oil purifier and oil filtration equipment manufacturer in China.

NAKIN Oil Purifiers:

NAKIN products are widely applied in projects of transformer substation, electric department,steel structure, bridge, auto, railway, aviation, chemicals, petroleum etc. The products are exported to more than 30 countries and areas, such as Europe, America, Middle East, Southeast Asia and so on. Each product of NAKIN is professionally tested, and the machine quality and oil quality are guaranteed. It has achieved a good reputation in the hearts of dealers and end users.

Service Commitment：

CHONGQING NAKIN ELECTROMECHANICAL CO.,LTD will always adhere to the business philosophy of “Responsible for product, Responsible for user, Responsible for sell”, keep the faith to create the national brand, keep innovation, keep improving and keep making the high quality oil purifier&oil filtration products with first-class after-service for getting the customer’s trust and love. Really building a new era in Brand-NAKIN with customers.

Certificates

WHY CHOOSE NAKIN OIL PURIFIER

Advanced Technology

Through learning and absorbing foreign advanced vacuum separation technology, combined with more than ten years of manufacturing and user experience, we have the ability to design various types of vacuum oil purifier.At the same time, the company has established long-term technical cooperation relationship with local colleges and universities, and also established long-term cooperation relationship with foreign counterparts, which has strong technical strength.

Reliable Quality

Company has passed ISO9001.2015 quality management system certification and CE European certificate. Our oil purifier machine only use the high quality parts, which is reliable quality and excellent performance. The company has complete testing instruments and testing equipment. All products are strictly tested before leaving the factory to ensure that each product is qualified to leave the factory.

Strong Production Srength

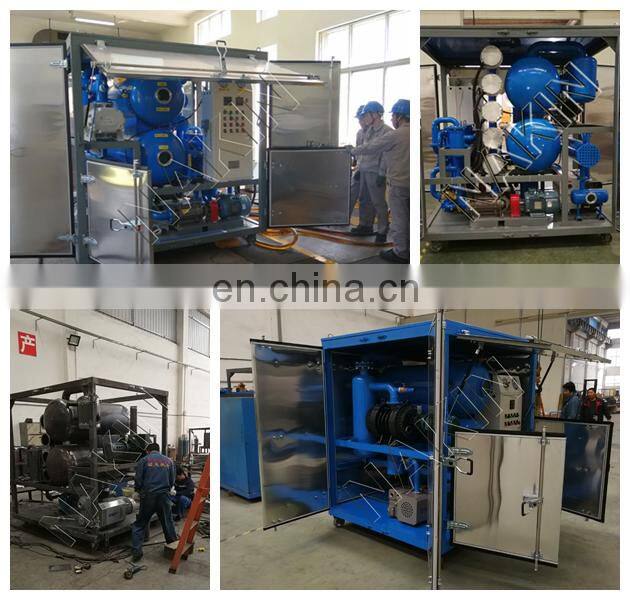

The company has a 3,500-The company has a 3,500-square-meter production workshop. The production equipment includes machine tools, shears, plate rolling machines, bending machines, welding machines, sandblasting machines, cranes, spray booths, paint booths, and other professional equipment. Many years of production experience forging It has a team of highly skilled workers that can deliver every piece of equipment efficiently and with high quality.

Good Compnay Reputation

Honesty and trustworthiness is the foundation of the company's survival and development. Since its establishment 12 years ago, NAKIN Company has always adhered to honesty and integrity for the treatment of employees and customers. NAKIN Company cooperates with thousands of customers. A good reputation is the bridge between the company and its customers, and the driving force for the company's sustainable development.

Professional Sales Team

The company has a professional sales team. Because the company's products have a certain degree of professionalism, the professional sales team can recommend the appropriate oil filtration equipment according to the actual situation of the customer, and also can meet the specific requirements of the customer. , Truly do what customers want, solve customer problems.

Excellent After-Sales Service

Professional after-sales service team, after-sales personnel have many years of oil purifier expertise, including the electrical control part or the mechanical structure part, we can quickly and accurately solve the technical problems encountered by customers. Provide 24hours non-stop after-sales service. Solve user’s problems, providing the online technical support in any time and any place.

Exhibition

FAQ

Q1. Can you please offer sample?
A: Sorry, our products are customized one-to-one according to customer needs, so samples cannot be provided.

Q2. What is your packing method?
A: Generally, our goods packed by wooden box.

Q3. What is your terms of payment?
A: Generally, we use T/T.

Q4. How about your delivery time?
A: Generally, it will take 5 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you customized goods for us?
A: Yes, we can customized by your samples or technical drawings.

Q6. If you have any inspection or test for your goods before delivery?
A: Yes, we do the inspection and test before finished goods.

Q7. Can we visit your factory?
A: Yes, we warmly welcome your visiting, and can pick up you at airport or train station.
