Double Stages Vacuum Transformer Oil Degas Machine Transformer Oil Dehydration
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
6000 Liter per Hour Transformer Oil Filtration Machine and Dielectric Oil Purifier Machine
-
Vacuum Transformer Oil Purifier Machine and Dielectric Oil Filtration Machine With Recycle Function
-
Transformer Oil Treatment Remove Water Degassing Trailer Type Enclosed Machine
-
Outdoor Use Transformer Oil Online Support Vacuum Oil Filtration Machine
-
Oil Filtration Manufacturer Supplier Transformer Oil Filtering Machine
-
Oil Filter Factory Price Transformer Oil Vacuum Oil Purification Machine
Product Description
Application

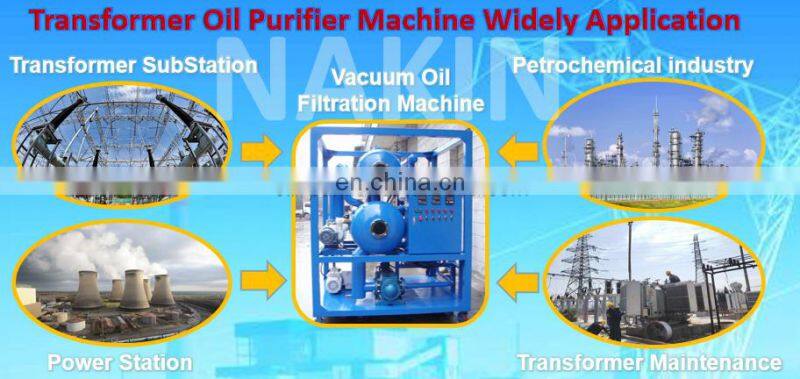

Transformer Oil Filtration Application
ZYD Series Double-Stage Vacuum Insulation Oil Purifier can quickly and effectively remove moisture, gas (Hydrogen, acetylene,methane, etc.) and impurities from the insulation oil, to improve the oil dielectric performance. The filtered oil can effectively ensure the power equipment run safely and normally. ZYD Double-stage vacuum oil purifier is widely used in power supply, power generation, power transmission and transformation, power equipment manufacturing, power engineering, electrical equipment maintenance, power testing, electrical research and other industries. It is especially suitable for the filtration of high-grade transformer oil and ultra-high transformer oil, and can be applied to online oil filtering operations at the power substation (like 110KV / 220KV / 500KV). Meanwhile, ZYD oil purifier has the functions of vacuum drying, vacuum oil injection, and hot oil circulation. It can also be used as a separate vacuum pumping unit to evacuate transformers and power equipment.
Pictures Shows
Blue color
6000L/H Vacuum transformer oil Filtration
Orange Color
12000L/H Vacuum Transformer Oil Purifier
Grey and White Color
4000L/H Transformer Oil Filtration
Features
◆ The vacuum system uses the roots pump as the main pump and the rotary vane vacuum pump as the primary pump. Fast start-up, large
pumping speed, stable performance, and high ultimate vacuum of less than 5Pa.
◆ Double horizontal vacuum separators, combined with Duplex-Stereo film evaporation technology
◆ Strong ability to remove impurities: ultra-large area cylindrical precision filter element, with high filtration accuracy, easy
installation and replacement.
◆ Low-load heating: Adopt advanced internal and external double-tube heat radiation indirect heating technology.
◆ Automatic control to realize unattended, safe and stable working.
◆ Safety interlock protection for oil pump, vacuum pump, heater,keep safely working
◆ Low noise, easy operation, long maintenance interval, low energy consumption, low operating cost
◆ It can be used together with the insulation oil regeneration device, which has the effect of decoloring, deacidification,
deoxidation and removing free carbon and other harmful substances from the oil.
pumping speed, stable performance, and high ultimate vacuum of less than 5Pa.
◆ Double horizontal vacuum separators, combined with Duplex-Stereo film evaporation technology
◆ Strong ability to remove impurities: ultra-large area cylindrical precision filter element, with high filtration accuracy, easy
installation and replacement.
◆ Low-load heating: Adopt advanced internal and external double-tube heat radiation indirect heating technology.
◆ Automatic control to realize unattended, safe and stable working.
◆ Safety interlock protection for oil pump, vacuum pump, heater,keep safely working
◆ Low noise, easy operation, long maintenance interval, low energy consumption, low operating cost
◆ It can be used together with the insulation oil regeneration device, which has the effect of decoloring, deacidification,
deoxidation and removing free carbon and other harmful substances from the oil.

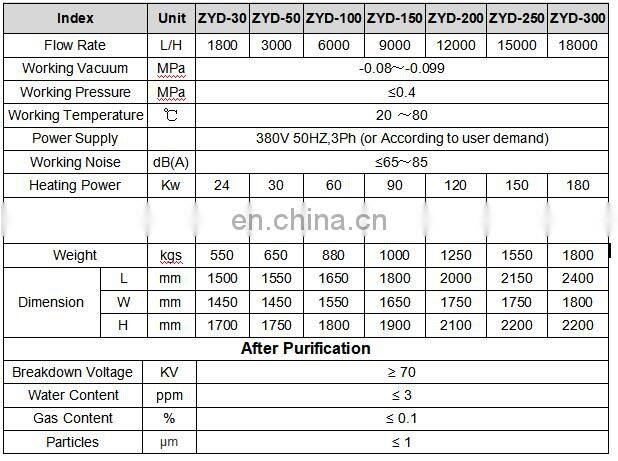

Technical Parameters
Packing Pictures

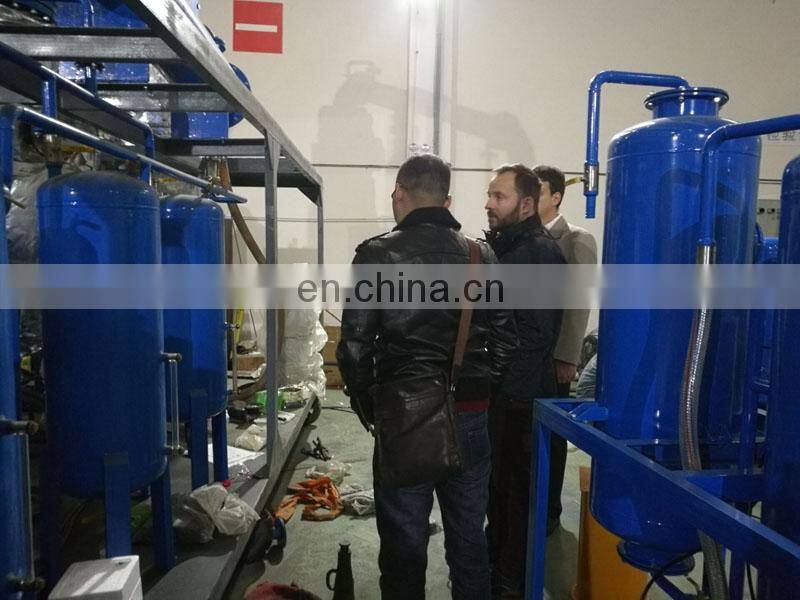

Customer Photos
Working Pictures
